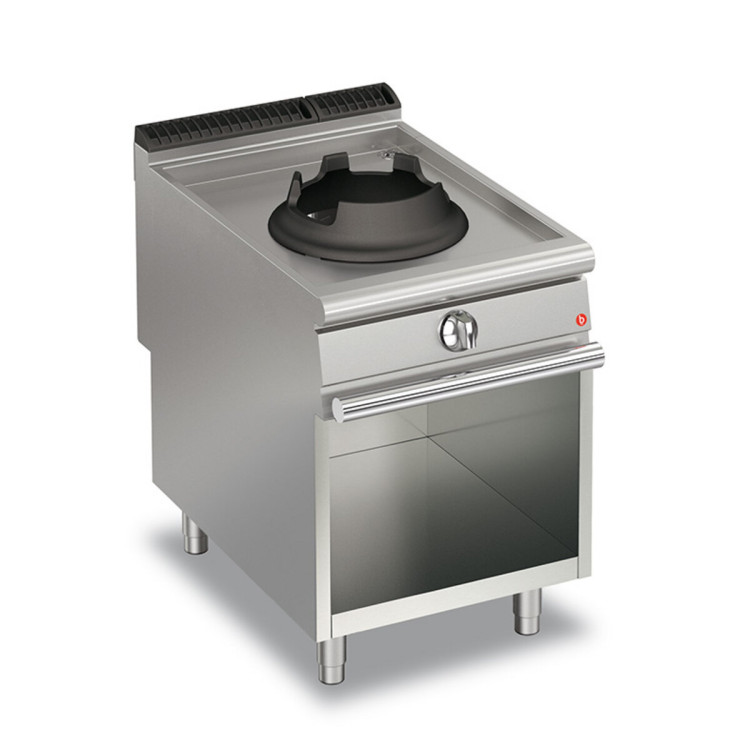

WOK 1 GAS FIRE 10KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

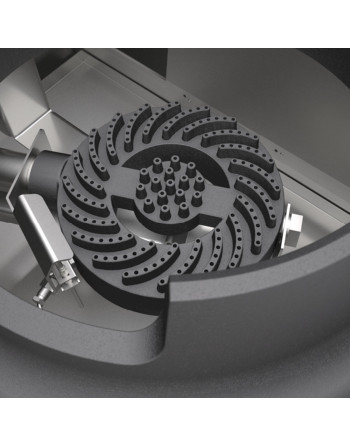

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

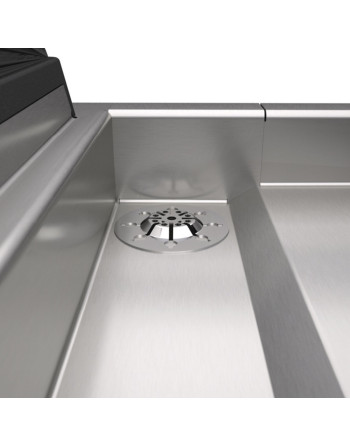

Table top with standardised tank and liquid drainage in the rear right-hand corner.

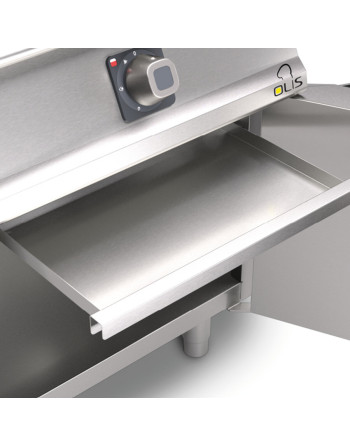

Tray for collecting overflow liquids.

CR1015849 - Standard Standard

Data sheet

Gross volume
1140
Modulo
M60
Packaging length
960
Width
600mm
Packaging height
1100
Packaging width
1080
Commercial Line
QUEEN
Company
0232
Gross weight
85Kg
Net weight
72Kg
Model
Q90PCV/WG610
Gas power Kcal
8600Kcal
Gas power Kw
10Kw
Volume
0.47m3
Height
870mm
Depth
900mm
Definition
Q90PCV/WG610 WOK GAS M60 10KW A/G
Material type
ZPF
CODE
CR1015849

Specific References

MPN
Q90PCV/WG610
