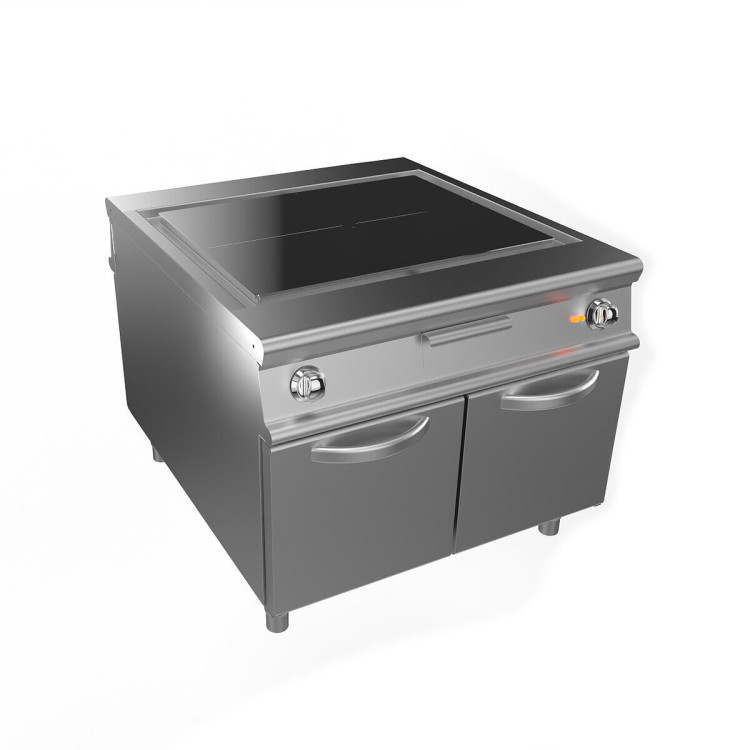

PASS-THROUGH ELECTRIC PLANCHA - ON CABINET

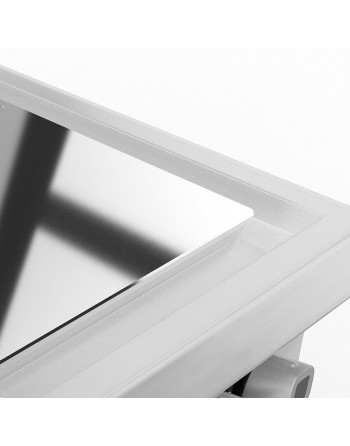

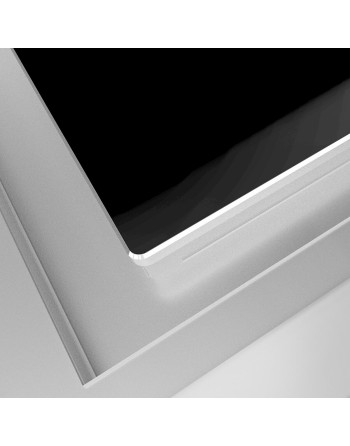

Large plate made of stainless steel with tempered chrome contact surface. Rounded corners and beveled top edge for a size of 83x66 cm with a thickness of 1.8 cm and height flush with the plane. 4 independent 4 kW cooking zones, with a size of 41x32 cm. Temperature controlled with thermostatic regulation from 50 to 400 °C. Equipment equipped with large perimeter duct, drainage hole and liquid collection drawer.


Perimeter channel for grease collection



Chrome moly steel plate helps perfect heat distribution and ease of cleaning

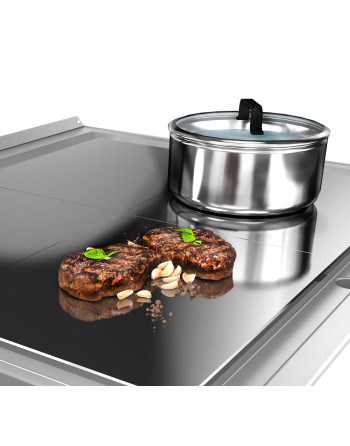

Ability to cook in with direct and indirect cooking

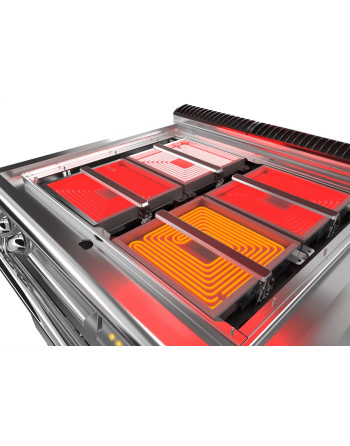

4 independent cooking zones

CR1353549 - Standard Standard

Data sheet

Model
N1100PHV/E1000
CODE
CR1353549
Commercial code
N1100PHV/E450
Material type
ZPF
Definition
N1100PHV/E1000 PLANCHA ELETTR. M100 A/G
Depth
1100mm
Height
870mm
Volume
0.957m3
Gross volume
0216
Production site
BELLUNO
Certified model
N1100PHV/E450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
980
Packaging height
500
Width
1000mm
Packaging length
440
Alimentazione
ELETTRICA
Electrical power
16,000Kw
Frequency
50-60 HzHz
Electrical power
380-415V 3N
IP grade
IPX4
Configurazione
4PLANCHES

Specific References

MPN
N1100PHV/E1000
