4-RING COOKER - TOP VERSION

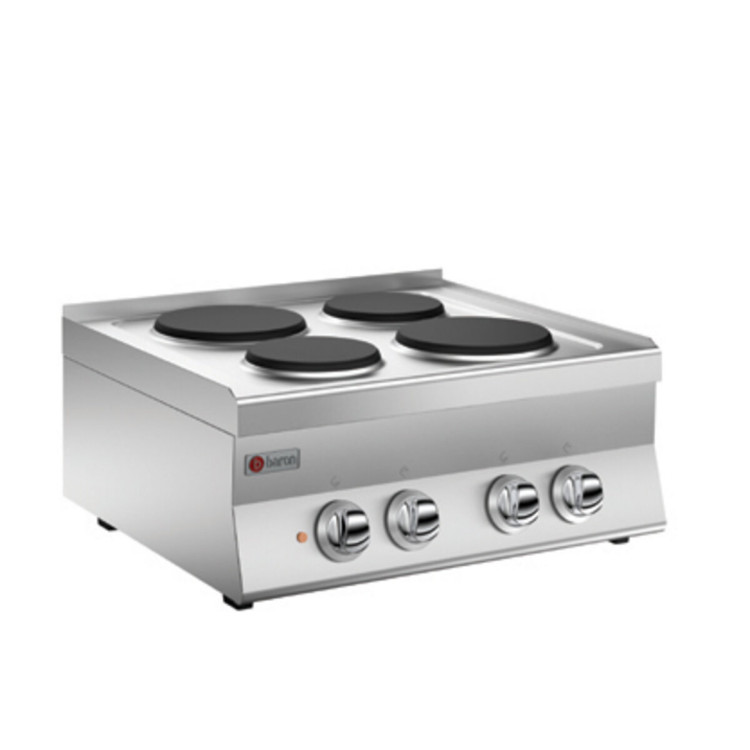

Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C.

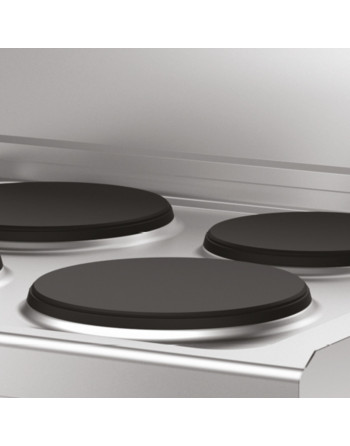

The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.

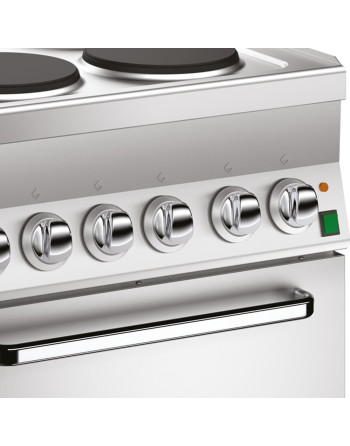

The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

CR0855759 - Standard Standard

Data sheet

Model
6NPC/E700
CODE
CR0855759
Commercial code
6NPC/E700
Material type
ZPF
Definition
4 PIASTRE EL.TONDE 60 M70 6NPC/E700
Depth
600mm
Height
295mm
Volume
0.124m3
Gross volume
0560
Net weight
86.3Kg
Gross weight
95Kg
Certified model
6NPC/E700
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
750
Packaging height
1150
Width
700mm
Packaging length
650
Alimentazione
ELETTRICA
Electrical power
8,200Kw
Frequency
50-60 HzHz
Electrical power
380-415V 3N
IP grade
IPX4
Power supply 2
220-240V 3
Power supply 3
220-240V 1N

Specific References

MPN
6NPC/E700
