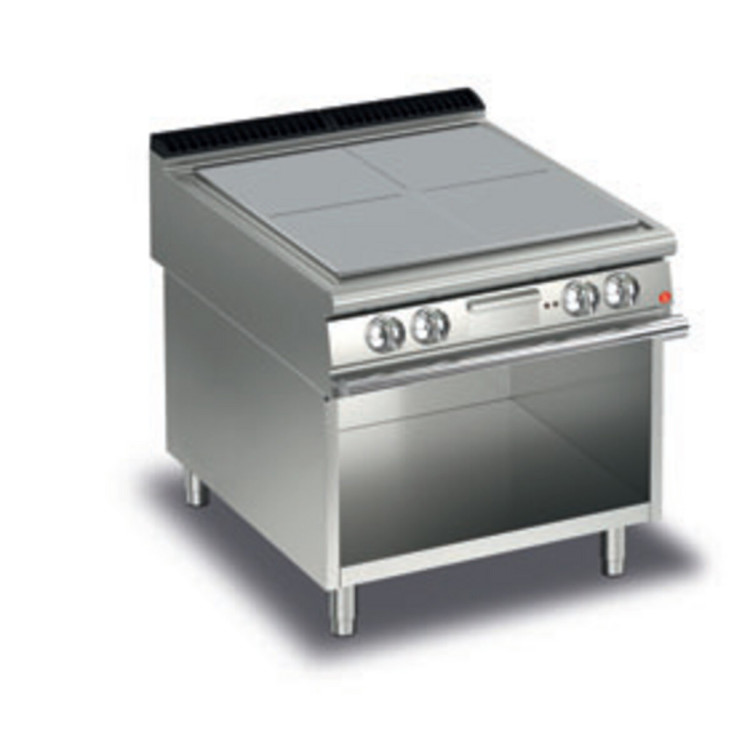

ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT
  • ELECTRIC PLANCHA ON OPEN COMPARTMENT

ELECTRIC PLANCHA ON OPEN COMPARTMENT

Plancha: Chrome-molybdenum steel plate, 4 independent zones of 4kW each, with adjustable temperatures from 50° to 400°C. Perimeter channel for grease collection with a hole for draining grease into a tray. Direct and indirect cooking options thanks to the chrome-molybdenum plate.

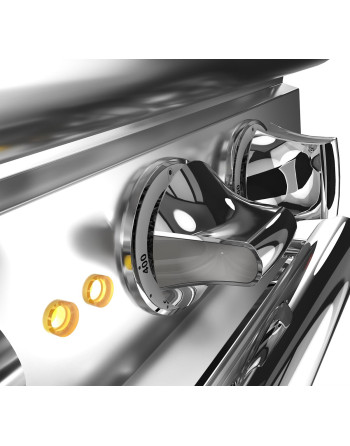

Plancha: Chrome-molybdenum steel plate, 4 independent zones of 4kW each, with adjustable temperatures from 50° to 400°C. Perimeter channel for grease collection with a hole for draining grease into a tray. Direct and indirect cooking options thanks to the chrome-molybdenum plate.Two types of healthy and versatile cooking. Direct or indirect cooking with 4 independent zones and a continuous temperature control system. Heat does not dissipate due to the chromium molybdenum steel contact surface. 4 independent cooking zones of 4kw each. Perimeter channel for grease collection with grease drain hole in basin. The chromium-molybdenum plate with direct and indirect cooking possibilities. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Ability to cook in with direct and indirect cooking

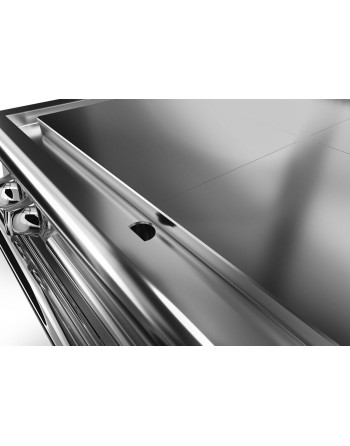

Perimeter channel for grease collection with grease drain hole in basin.



Maximum temperature of 400°C

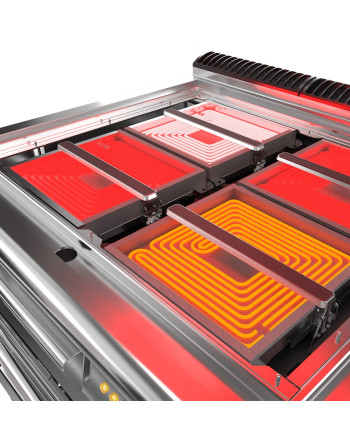

4 independent 4kw cooking zones

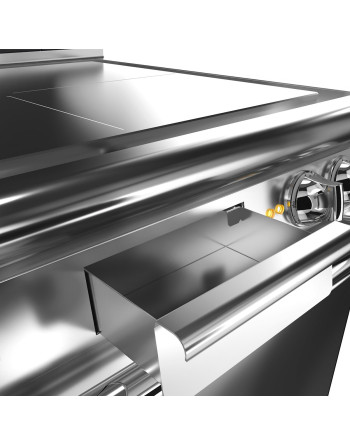

Removable grease pan for easy cleaning

CR1353509 - Standard Standard

Data sheet

Product type
STANDARD
Configurazione
4PLANCHES
IP grade
IPX4
Electrical power
380-415V 3N
Frequency
50-60 HzHz
Electrical power
16,000Kw
Alimentazione
ELETTRICA
Packaging length
1020
Width
1000mm
Packaging height
1150
Packaging width
980
Commercial Line
QUEEN
Company
0232
Model
Q90PHV/E100
Certified model
Q90PHV/E100
Production site
BELLUNO
Gross weight
187Kg
Net weight
177Kg
Gross volume
1140
Volume
0.783m3
Height
870mm
Depth
900mm
Definition
Q90PHV/E1000 PLANCHA ELETTRICA A/G
Material type
ZPF
Commercial code
Q90PHV/E100
CODE
CR1353509

Specific References

MPN
Q90PHV/E100
