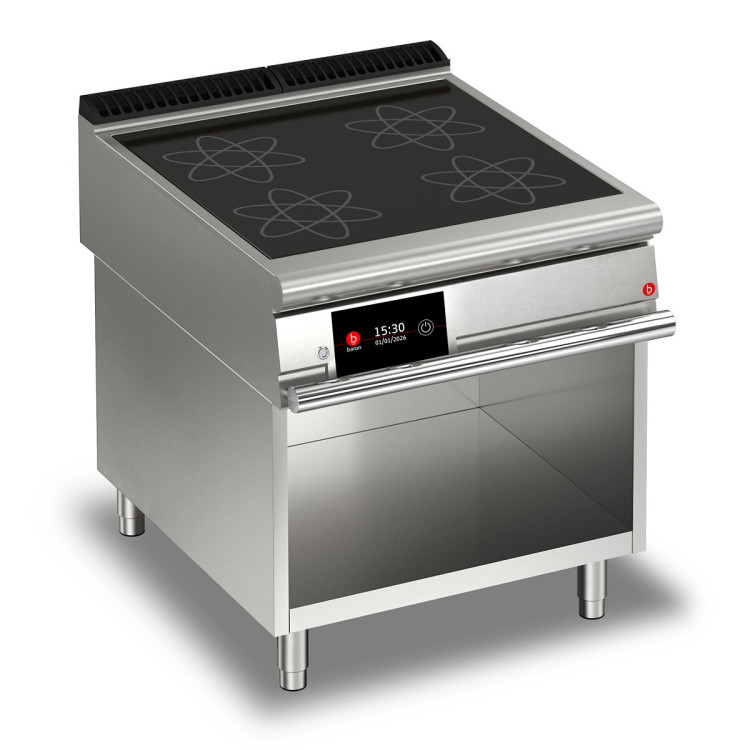

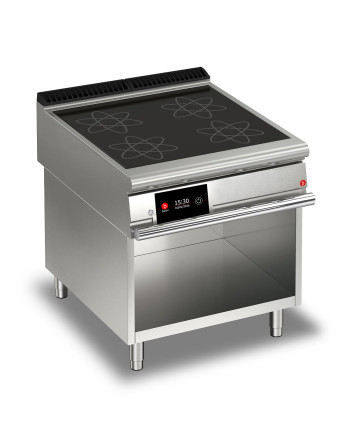

Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Unbreakable glass-ceramic top. Each cooking zone is marked with a circular silkscreen printing. Heating by means of an inductor equipped with a device that detects the presence of the cooking vessel on the cooking zone and automatically switches the heating on/off, and a device against overheating. Power 5 kW cada zone. Power adjustable to 12 levels Professional components tested to withstand intensive use over time Safety sensor to prevent overheating. Cooking zones with 5KW power Mechanically controlled induction ready for IOT connection to Cloud Serigraphs identifying cooking zones.


Ensures the correct positioning and suitability of the pot

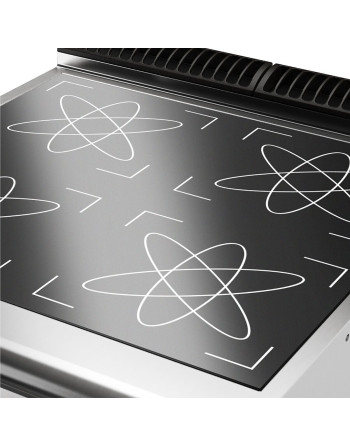

Serigraphs identifying cooking zones.



Professional components tested to withstand intensive use over time



Power adjustable to 12 levels



Mechanically controlled induction ready for IOT connection to Cloud

BN1358429 - Standard Standard

Data sheet

Model
QS90PCV/IND801
CODE
BN1358429
Commercial code
QT90PCV/IND801-T4W
Material type
ZPF
Definition
QT90PCV/IND801-T4W INDUZ.ELETTRO.M80 A/G
Depth
900mm
Height
870mm
Volume
0.626m3
Gross volume
1010
Net weight
86Kg
Gross weight
96.8Kg
Certified model
QT90PCV/IND801-T4W
CE-certified
-
Production start year
2022
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Packaging height
1170
Width
800mm
Packaging length
850
Alimentazione
ELETTRICA
Electrical power
20,000Kw
Frequency
50/60 HzHz
Electrical power
380-415V 3
IP grade
IPX4
Configurazione
IZ4
RATED CURRENT
30,40(A)

Specific References

MPN
QS90PCV/IND801
