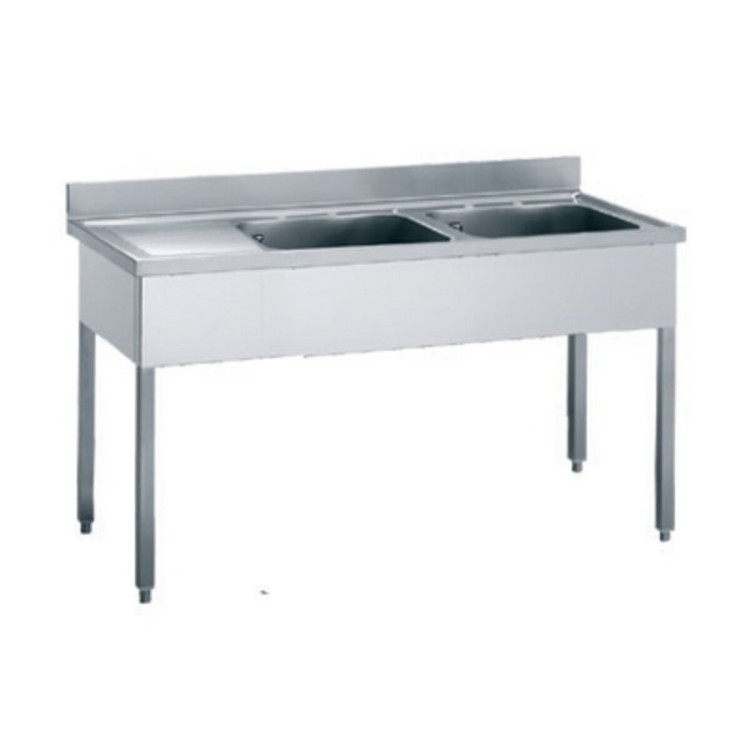

SINK ON LEGS
BNN68805161_it.pdf
BNN68805161_en.pdf
BNN68805161_de.pdf
BNN68805161_es.pdf
BNN68805161_fr.pdf
BNN68805161_pl.pdf
BNN68805161.dwg
BNN68805161.jpgSTAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow
FRAME
Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band
FEET
Squares with leveler, adjustable with 30 mm range
Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h
100 mm.
Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm
with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false
bottom, bottom shelves and frame on three sides.
BNN68805161 - Standard Standard
Data sheet
- Model
- NLT7162S
- CODE
- BNN68805161
- Commercial code
- LT7162S/FS
- Material type
- ZPF
- Definition
- LAVATOIO 2 VASCHE+SGOC.LT7162S/FS
- Depth
- 700mm
- Height
- 850mm
- Volume
- 0.952m3
- Gross volume
- 1250
- Net weight
- 42Kg
- Gross weight
- 56Kg
- Production site
- BELLUNO
- Certified model
- SLT7162S
- CE-certified
- -
- Product type
- SPECIAL
- Company
- 0230
- Packaging width
- 740
- Packaging height
- 1030
- Width
- 1600mm
- Packaging length
- 1640
- Alimentazione
- NESSUNA
Specific References
- MPN
- NLT7162S
