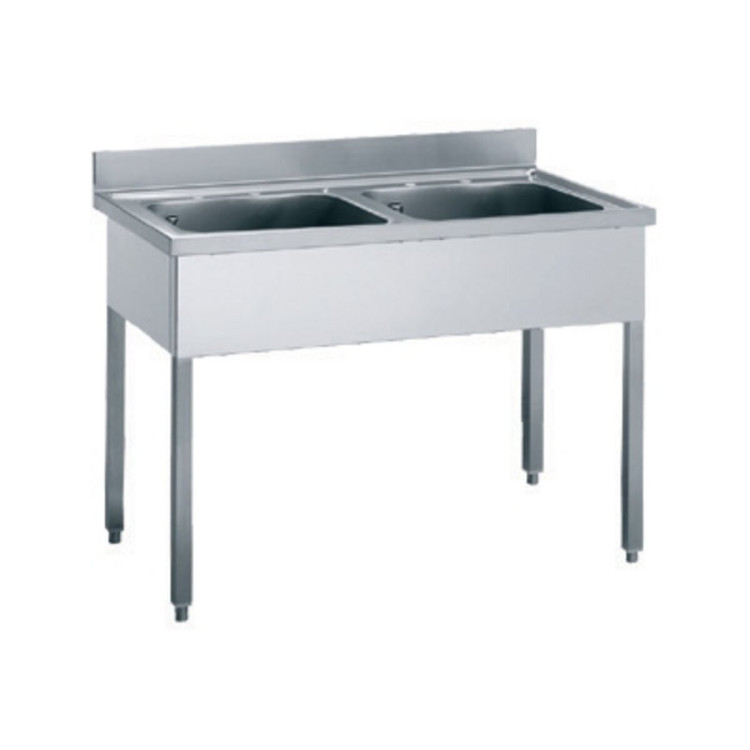

SINK ON LEGS
BNN68825120_it.pdf
BNN68825120_en.pdf
BNN68825120_de.pdf
BNN68825120_es.pdf
BNN68825120_fr.pdf
BNN68825120_pl.pdf
BNN68825120.dwg
BNN68825120.jpgSTAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow
FRAME
Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band
FEET
Squares with leveler, adjustable with 30 mm range
Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h
100 mm.
Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm
with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false
bottom, bottom shelves and frame on three sides.
BNN68825120 - Standard Standard
Data sheet
- Model
- NLT7122V
- CODE
- BNN68825120
- Commercial code
- LT7122V/FS
- Material type
- ZPF
- Definition
- LAVATOIO 2 VASCHE LT7122V/FS
- Depth
- 700mm
- Height
- 850mm
- Volume
- 0.714m3
- Gross volume
- 1059
- Net weight
- 35Kg
- Gross weight
- 45Kg
- Production site
- BELLUNO
- Certified model
- SLT7122V
- CE-certified
- -
- Product type
- SPECIAL
- Company
- 0230
- Packaging width
- 750
- Packaging height
- 1130
- Width
- 1200mm
- Packaging length
- 1250
- Alimentazione
- NESSUNA
Specific References
- MPN
- NLT7122V
