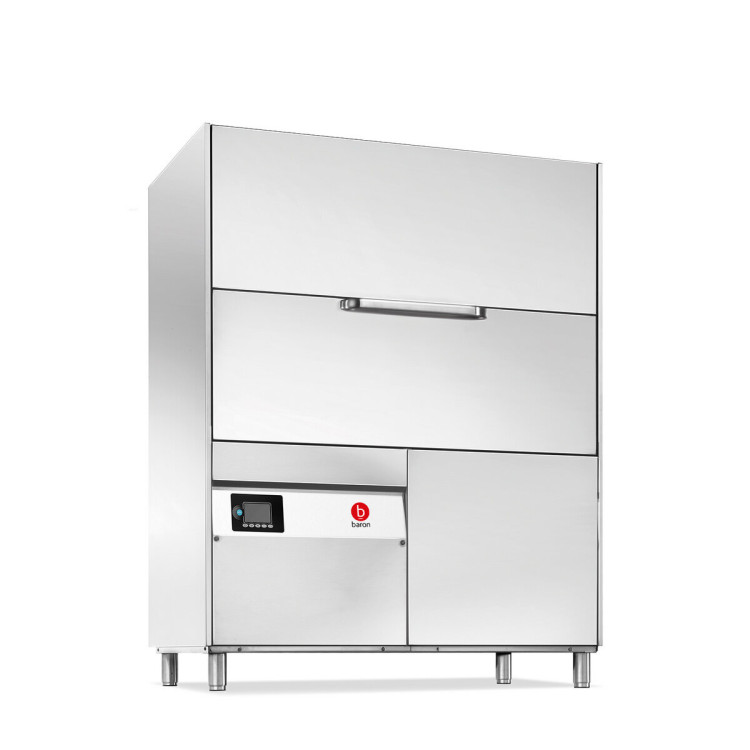

HYPER TECH WASH PLUS - BPHTW4S8PLUS
Data Sheet
BND212093_it.pdf
BND212093_en.pdf
BND212093_de.pdf
BND212093_es.pdf
BND212093_fr.pdf
BND212093_pl.pdfDWG-3D
BND212093.dwgPictures
BND212093.jpgThe new technology of potwashers allows you to easily and intuitively follow all the stages of your potwashing process directly from the control panel. The innovative rinsing circuit, the energy saving function (a device that optimises energy functions avoiding unnecessary waste) the high level of performance and the high quality materials make these machines extremely competitive and versatile.

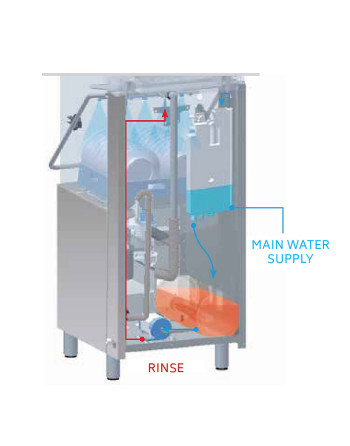

Stabilized pressure rinsing and constant boiler water temperature of 85°C. Thanks to the atmospheric boiler, mixing of mains water in the rinse phase is avoided. The PLUS system also ensures greater control and correct dosing of rinse aid in each cycle.

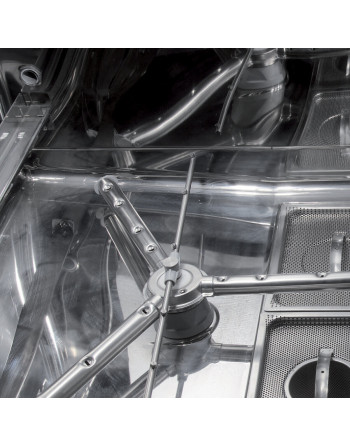

Fully molded basin. Independent stainless steel wash/rinse arms
Double-walled door
BND212093 - Standard Standard
Data sheet
- Packaging height
- 2040
- Equipment dimensions
- 1490 x 885 x 1970/2310 H
- Water consumption
- 86 lt
- Total absorption
- 14800W
- Washing pump
- 2900W
- Washing cycles
- 3/6/9/12 min
- Basket dimensions
- 1350x725 mm
- Electrical power
- 380-415V 3N
- Electrical power
- 14.8Kw
- Packaging length
- 1700
- Width
- 1700mm
- Model
- BPHTW4S8PLUS
- Packaging width
- 1040
- Company
- 0232
- Gross weight
- 375Kg
- Net weight
- 320Kg
- Gross volume
- 3607
- Height
- 2040mm
- Depth
- 1040mm
- Definition
- BPHTW4S8PLUS LAVAOGGETTI EL. 135X725
- Material type
- ZCOM
- CODE
- BND212093
Specific References
- MPN
- BPHTW4S8PLUS
