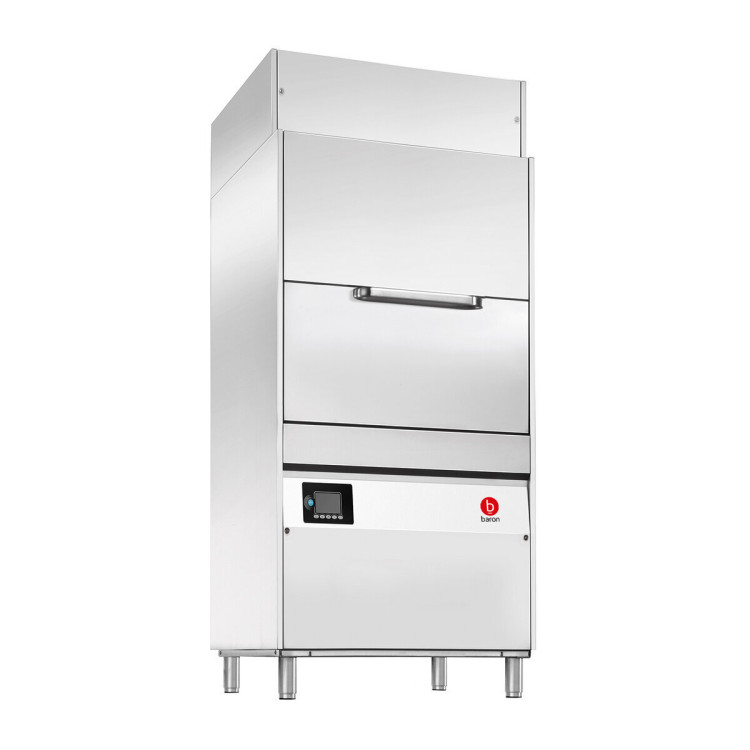

HYPER TECH WASH PLUS - BPHTW2STRPLUS
Data Sheet
BND212090_it.pdf
BND212090_en.pdf
BND212090_de.pdf
BND212090_es.pdf
BND212090_fr.pdf
BND212090_pl.pdfDWG-3D
BND212090.dwgPictures
BND212090.jpgThe new technology of potwashers allows you to easily and intuitively follow all the stages of your potwashing process directly from the control panel. The innovative rinsing circuit, the energy saving function (a device that optimises energy functions avoiding unnecessary waste) the high level of performance and the high quality materials make these machines extremely competitive and versatile.

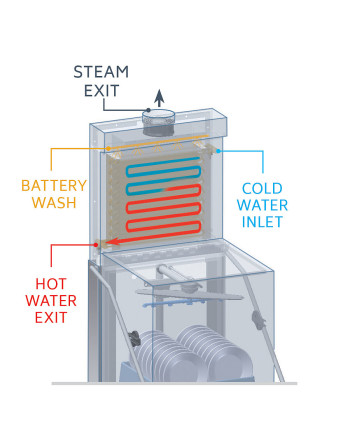

RT system to recover the steam produced by the running machine to preheat the cold feed water. Immediate savings on energy consumption and improved temperature in the working environment, which is no longer saturated by moisture produced by the machine.

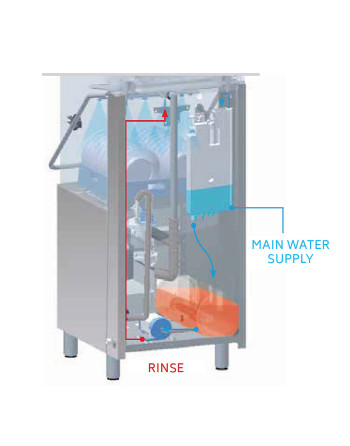

Stabilized pressure rinsing and constant boiler water temperature of 85°C. Thanks to the atmospheric boiler, mixing of mains water in the rinse phase is avoided. The PLUS system also ensures greater control and correct dosing of rinse aid in each cycle.

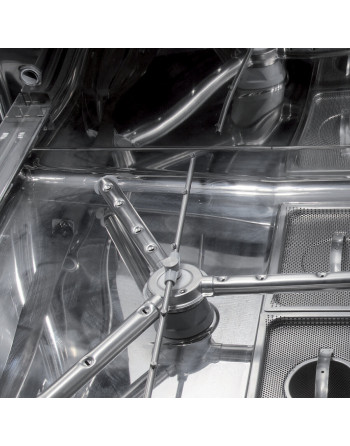

Fully molded basin. Independent stainless steel wash/rinse arms
Double-walled door
BND212090 - Standard Standard
Data sheet
- Packaging height
- 2300
- Equipment dimensions
- 840 x 885 x 2140 H
- Water consumption
- 43 lt
- Total absorption
- 12500W
- Washing pump
- 1750W
- Washing cycles
- 4/7/10/13 min
- Basket dimensions
- 700x700 mm
- Electrical power
- 380-415V 3N
- Electrical power
- 12.5Kw
- Packaging length
- 940
- Width
- 840mm
- Model
- BPHTW2STRPLUS
- Packaging width
- 900
- Company
- 0232
- Gross weight
- 263Kg
- Net weight
- 238Kg
- Gross volume
- 1946
- Height
- 1790mm
- Depth
- 885mm
- Definition
- BPHTW2STRPLUS LAVAOGGETTI EL. 70X70
- Material type
- ZCOM
- CODE
- BND212090
Specific References
- MPN
- BPHTW2STRPLUS
