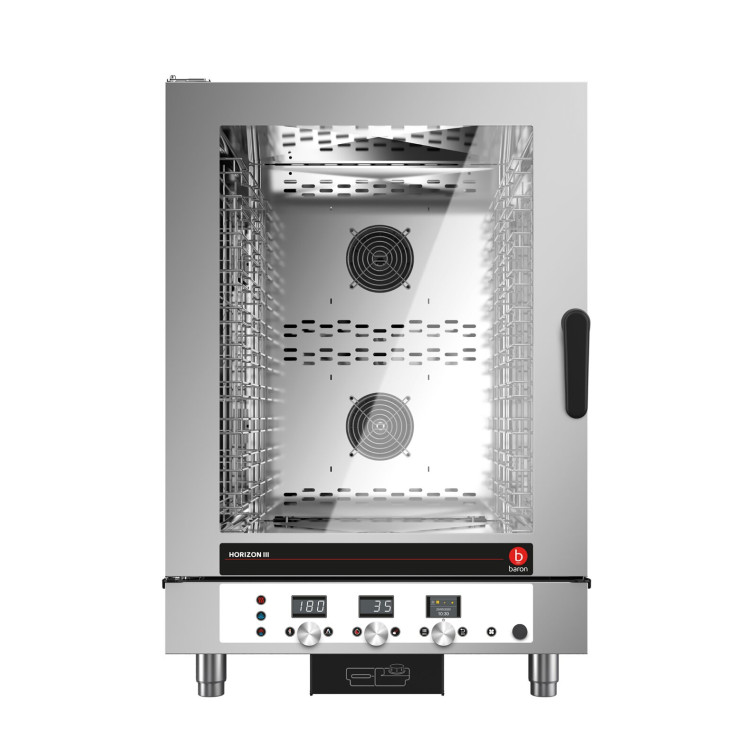

DIRECT STEAM GAS COMBI-OVEN - 10 X 1/1 GN - 10 X 600 X 400 ● ELECTROMECHANICAL CONTROLS
  • DIRECT STEAM GAS COMBI-OVEN - 10 X 1/1 GN - 10 X 600 X 400 ● ELECTROMECHANICAL CONTROLS

DIRECT STEAM GAS COMBI-OVEN - 10 X 1/1 GN - 10 X 600 X 400 ● ELECTROMECHANICAL CONTROLS

The control panel of the manual oven consists of selectors and knobs with an ergonomic design that makes it easy to use and intuitive. Functions are controlled by electromechanical controls, while indicator lights provide feedback on oven operation clearly and immediately. COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
HOGM101E - Standard Standard

Data sheet

Certified model
MEGM101E
Variants
PORTA STD
Gas/refrigerant type
METANO "H E" G20 20/25mbar
IP grade
IPX3
Electrical power
220-240V 1N
Electrical power
0.5Kw
Alimentazione
GAS
Packaging length
870
Width
812mm
Packaging height
1370
Packaging width
910
Commercial Line
ICON E
Company
0230
Product type
STANDARD
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A3-B13-B23
Gross weight
130Kg
Net weight
115Kg
Gross volume
1085
Gas power Kw
16Kw
Volume
0.674m3
Height
1145mm
Depth
725mm
Definition
ICGM101E MISTO GAS 10T C/MEC.
Material type
ZPF
Commercial code
ICGM101E
CODE
HOGM101E
Model
HOGM101E

Specific References

MPN
HOGM101E
