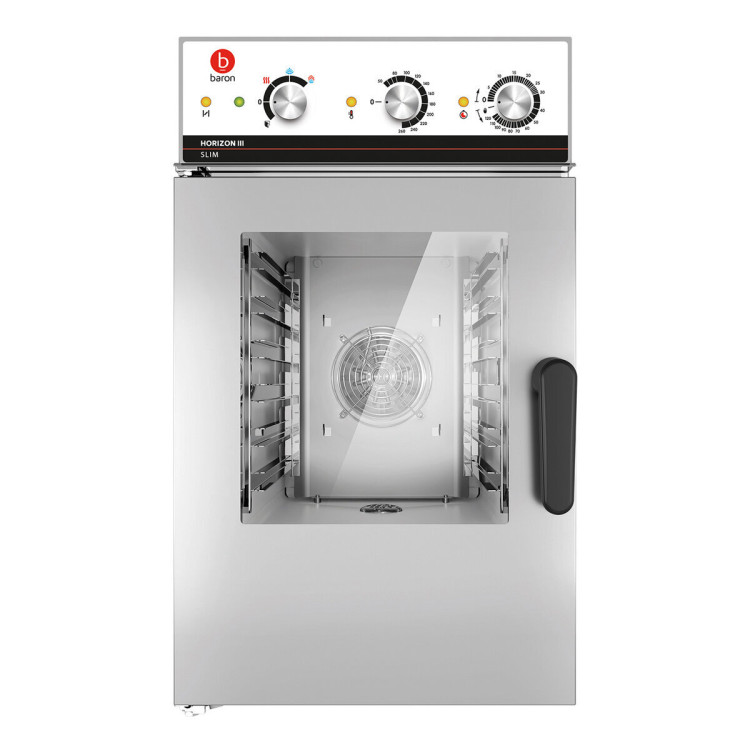

ELECTRIC DIRECT STEAM COMBI OVEN - 6 X 1/1 GN ELECTROMECHANICAL CONTROLS
  • ELECTRIC DIRECT STEAM COMBI OVEN - 6 X 1/1 GN ELECTROMECHANICAL CONTROLS

ELECTRIC DIRECT STEAM COMBI OVEN - 6 X 1/1 GN ELECTROMECHANICAL CONTROLS

The control panel of the manual oven consists of selectors and knobs with an ergonomic design that makes it easy to use and intuitive. Functions are controlled by electromechanical controls, while indicator lights provide feedback on oven operation clearly and immediately. COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
CR1481600 - Standard Standard

Data sheet

Product type
STANDARD
Variants
PORTA STD
Gas/refrigerant type
NO GAS
IP grade
IPX4
Electrical power
3N AC 400V 50Hz
Capacity
6 GN 1/1
Electrical power
7,750Kw
Alimentazione
ELETTRICA
Packaging length
930
Width
510mm
Packaging height
1100
Packaging width
600
Commercial Line
ICON51 E
Company
0232
Model
HOCM061E
CE-certified
X
Certified model
HOCM061E
Production site
VITTORIO VENETO 1
Gross weight
98Kg
Net weight
84Kg
Gross volume
0614
Volume
0.359m3
Height
880mm
Depth
800mm
Definition
ICCM061E MISTO EL.06GN1/1 C/DIG.
Material type
ZPF
Commercial code
ICCM061E
CODE
CR1481600

Specific References

MPN
HOCM061E
