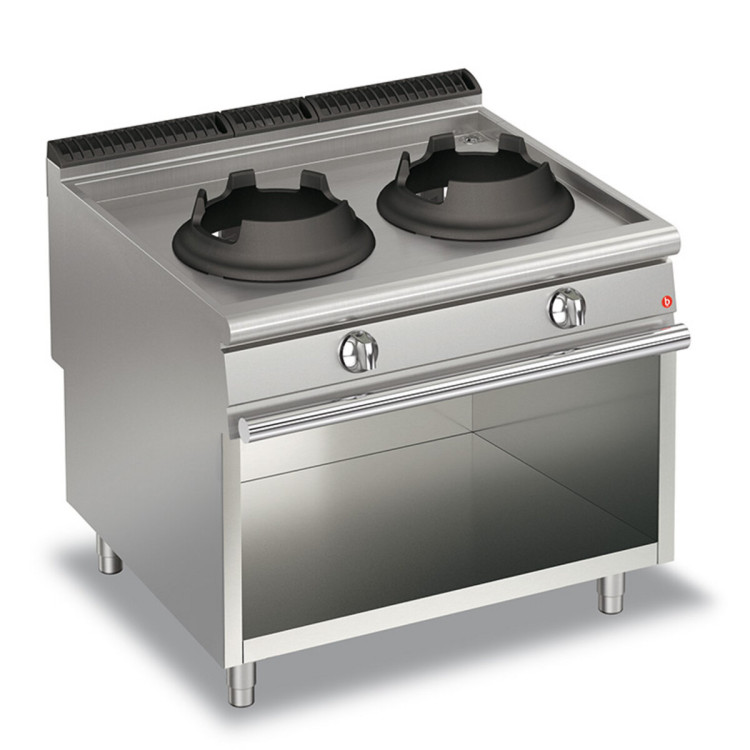

WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT

Tipo Alimentazione
Print
Home , COOKING , QUEEN 9 , WOK GAS
Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

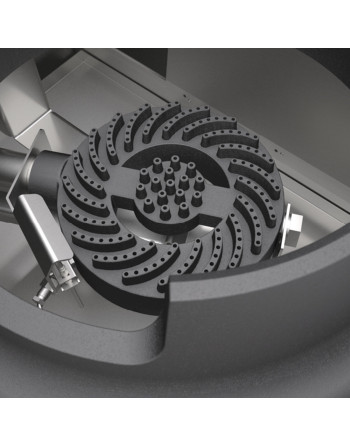

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

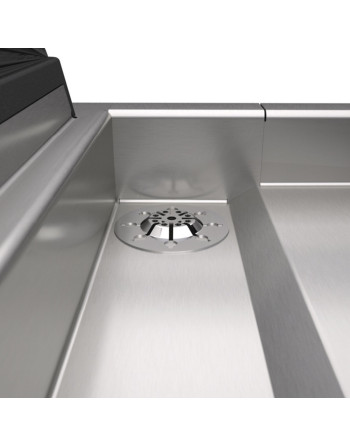

Table top with standardised tank and liquid drainage in the rear right-hand corner.

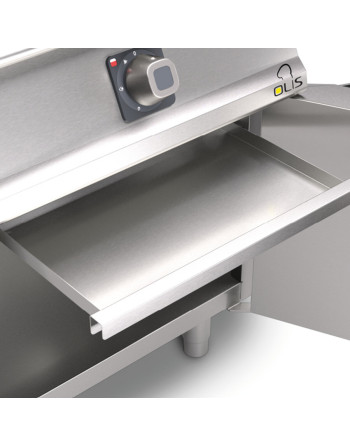

Tray for collecting overflow liquids.

Q90PCV/WG1020
CR1015889 - Metano Standard

Data sheet

Model
Q90PCV/WG1020
Code
CR1015889
Material type
ZPF
Definition
Q90PCV/WG1020 WOK GAS M100 10KW A/G
Width
1000mm
Height
870mm
Depth
900mm
Volume
0.783m3
Gross volume
1140
Net weight
72Kg
Gross weight
85Kg
Certified model
Q90PCV/WG10
CE-certified
CE-0085CR0044
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1080
Packaging height
1100
Packaging length
960
Alimentazione
GAS
Commercial code
Q90PCV/WG1020
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
2024Kw
Gas power (G25.3/25 mbar)
19,40Kw
Gas power Kcal
16684Kcal
N. Fires/Plates
DUE FUOCHI
Chimney type
A1
Modulo
M100

Specific References

mpn
Q90PCV/WG1020
