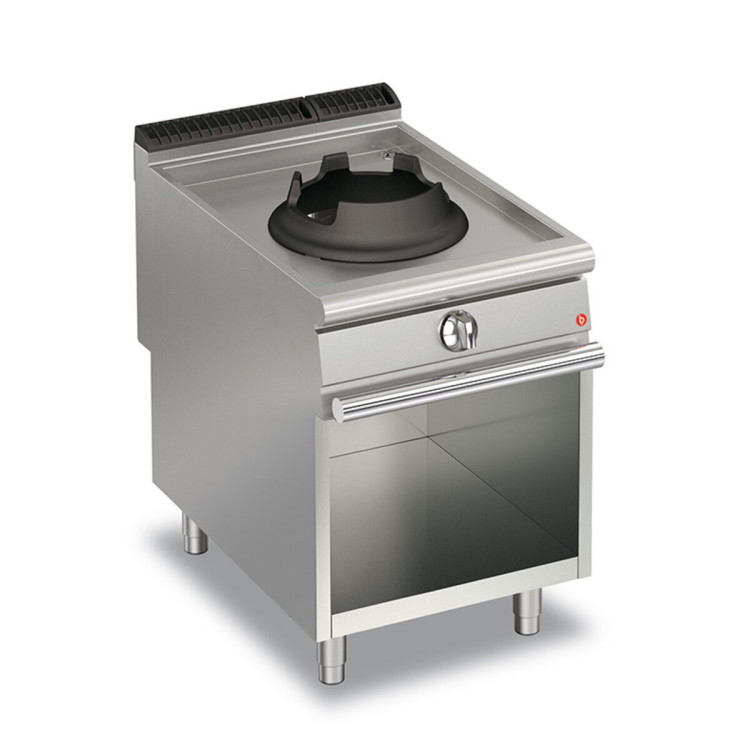

WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT

Tipo Alimentazione
Print
Home , COOKING , QUEEN 9 , WOK GAS
Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

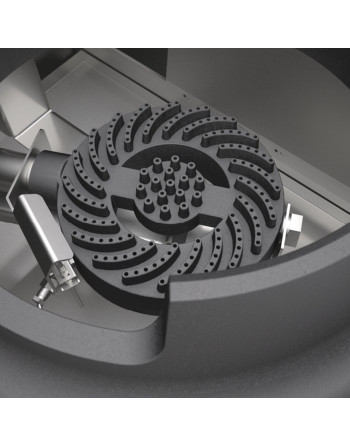

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

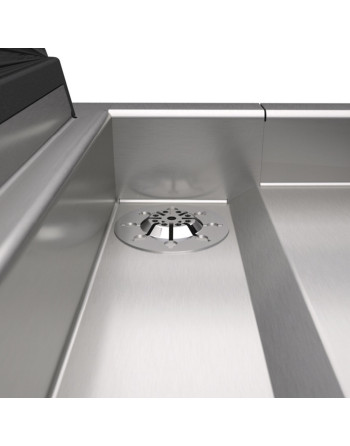

Table top with standardised tank and liquid drainage in the rear right-hand corner.

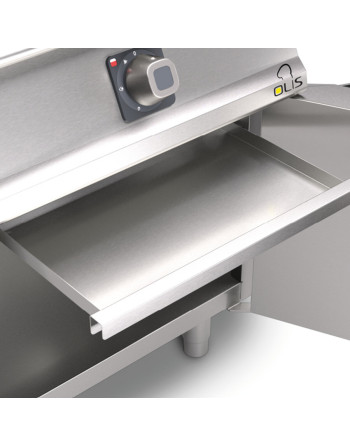

Tray for collecting overflow liquids.

Q90PCV/WG614
CR1015869 - Metano Standard

Data sheet

Model
Q90PCV/WG614
Code
CR1015869
Material type
ZPF
Definition
Q90PCV/WG614 WOK GAS M60 14KW A/G
Width
600mm
Height
870mm
Depth
900mm
Volume
0.47m3
Gross volume
0774
Net weight
77.6Kg
Gross weight
90Kg
Certified model
Q90PCV/WG6
CE-certified
CE-0085CR0044
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Packaging height
1150
Packaging length
660
Alimentazione
GAS
Commercial code
Q90PCV/WG614
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
14Kw
Gas power (G25.3/25 mbar)
13,30Kw
Gas power Kcal
11438Kcal
Chimney type
A1
Modulo
M60

Specific References

mpn
Q90PCV/WG614
