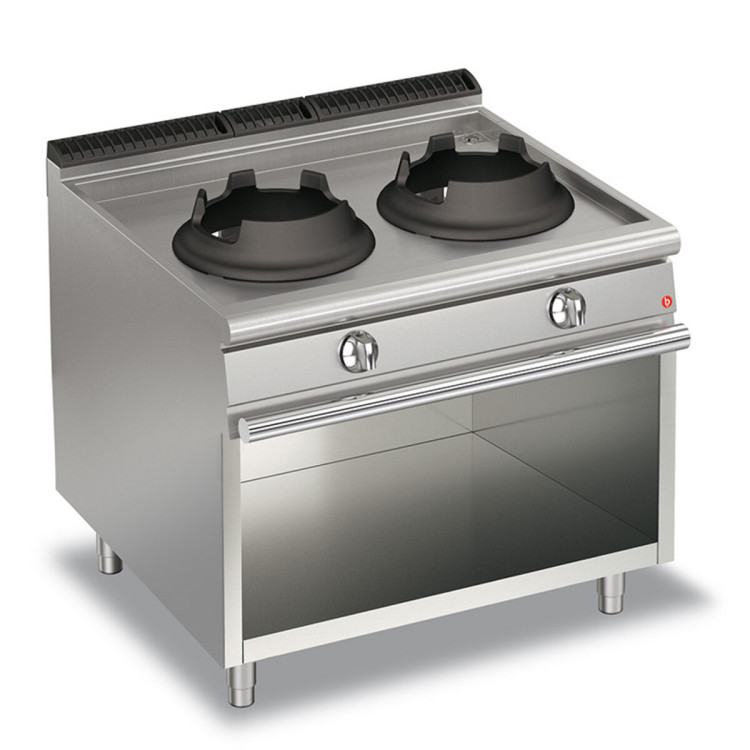

WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT
  • WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT
  • WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT
  • WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT
  • WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT

WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

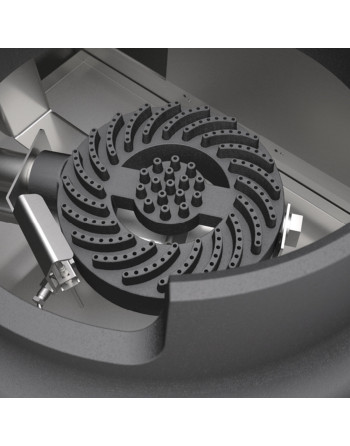

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

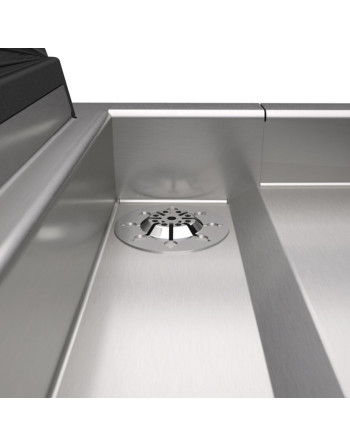

Table top with standardised tank and liquid drainage in the rear right-hand corner.

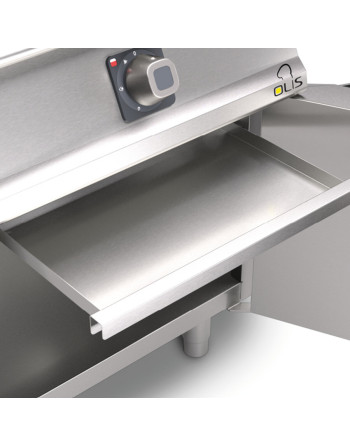

Tray for collecting overflow liquids.

CR1012819 - Standard Standard

Data sheet

Gross weight
85Kg
Modulo
M100
Alimentazione
GAS
Packaging length
960
Width
1000mm
Packaging height
1100
Packaging width
1080
Commercial Line
QUEEN
Company
0232
Product type
STANDARD
CE-certified
CE-0085CR0044
Certified model
Q70PCV/WG10
Chimney type
A1
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Net weight
72Kg
Gross volume
1140
Gas power Kcal
16684Kcal
Gas power (G25.3/25 mbar)
19,40Kw
Gas power Kw
20,00Kw
Volume
0.609m3
Height
870mm
Depth
700mm
Definition
Q70PCV/WG1020 WOK GAS M100 10KW A/G
Material type
ZPF
Commercial code
Q70PCV/WG1020
CODE
CR1012819
Model
Q70PCV/WG1020

Specific References

MPN
Q70PCV/WG1020
