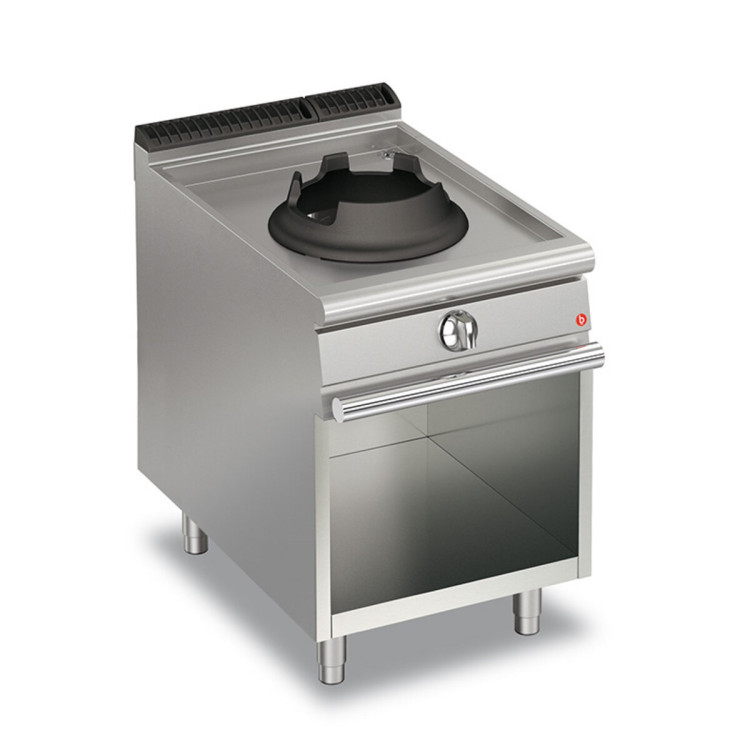

WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT
  • WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT
  • WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT
  • WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT
  • WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT

WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

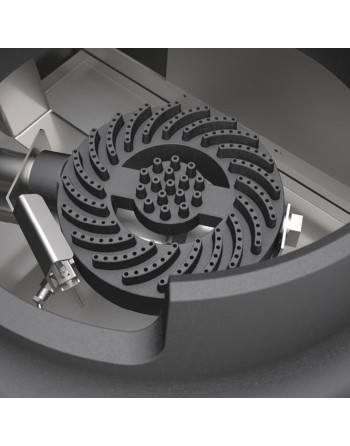

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

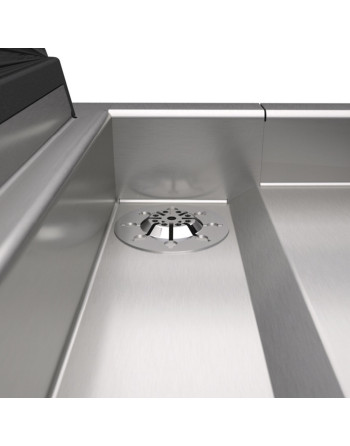

Table top with standardised tank and liquid drainage in the rear right-hand corner.

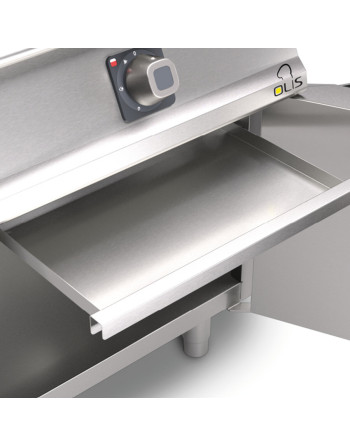

Tray for collecting overflow liquids.

CR1012799 - Standard Standard

Data sheet

Gross weight
70Kg
Modulo
M60
Alimentazione
GAS
Packaging length
660
Width
600mm
Packaging height
1150
Packaging width
850
Commercial Line
QUEEN
Company
0232
Product type
STANDARD
CE-certified
CE-0085CR0044
Certified model
Q70PCV/WG6
Chimney type
A1
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Net weight
57.8Kg
Gross volume
0645
Gas power Kcal
11438Kcal
Gas power (G25.3/25 mbar)
13,30Kw
Gas power Kw
14,00Kw
Volume
0.365m3
Height
870mm
Depth
700mm
Definition
Q70PCV/WG614 WOK GAS M60 14KW A/G
Material type
ZPF
Commercial code
Q70PCV/WG614
CODE
CR1012799
Model
Q70PCV/WG614

Specific References

MPN
Q70PCV/WG614
