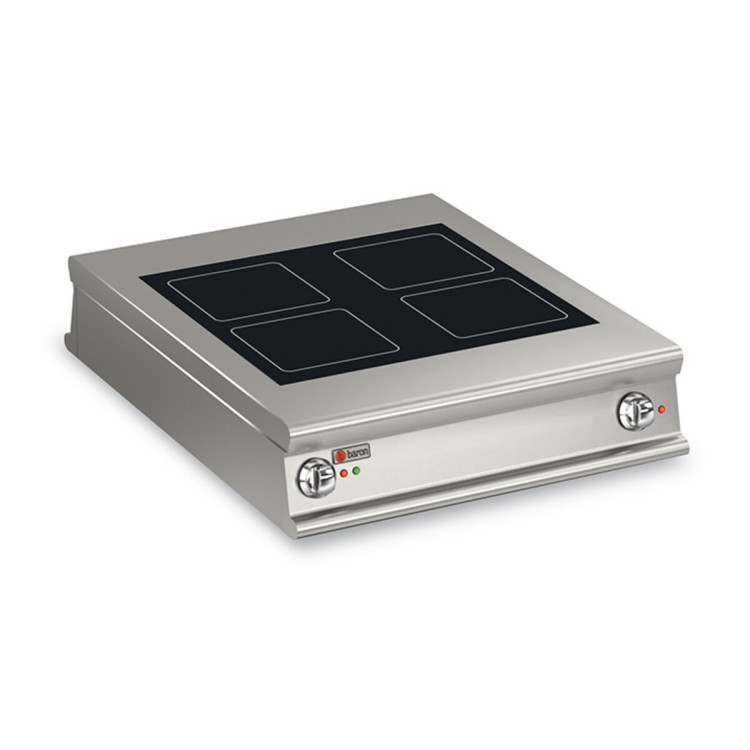

4-ZONE GLASS-CERAMIC COOKER - TOP VERSION
Data Sheet
CR1010459_it.pdf
CR1010459_en.pdf
CR1010459_de.pdf
CR1010459_es.pdf
CR1010459_fr.pdf
CR1010459_pl.pdfDWG-3D
CR1010459.dwgPictures
CR1010459.jpgStainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Unbreakable watertight glass-ceramic top.
Cooking zone (27x27 cm) marked with square silkscreen printing, indicating the size of the idal vessel to be used.
The power of each individual zone is 4 kW.
Temperature adjustable by thermostat from 70 to 450°C.
Heating activation indicator light and residual heat indicator light on the top.
CR1010459 - Standard Standard
Data sheet
- Model
- N1100PC/VCE900
- CODE
- CR1010459
- Commercial code
- N1100PC/VCE900
- Material type
- ZPF
- Definition
- N1100PC/VCE900 VETROCERAMICA M90 TOP
- Depth
- 1100mm
- Height
- 280mm
- Volume
- 0.277m3
- Gross volume
- 0726
- Net weight
- 81Kg
- Gross weight
- 91Kg
- Production site
- BELLUNO
- Certified model
- N1100PC/VCE900
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 1100
- Packaging width
- 1300
- Packaging height
- 570
- Width
- 900mm
- Packaging length
- 980
- Alimentazione
- ELETTRICA
- Electrical power
- 16,000Kw
- Frequency
- 50-60 HzHz
- Electrical power
- 380-415V 3N
- IP grade
- IPX4
- Configurazione
- 4Z2727
Specific References
- MPN
- N1100PC/VCE900
