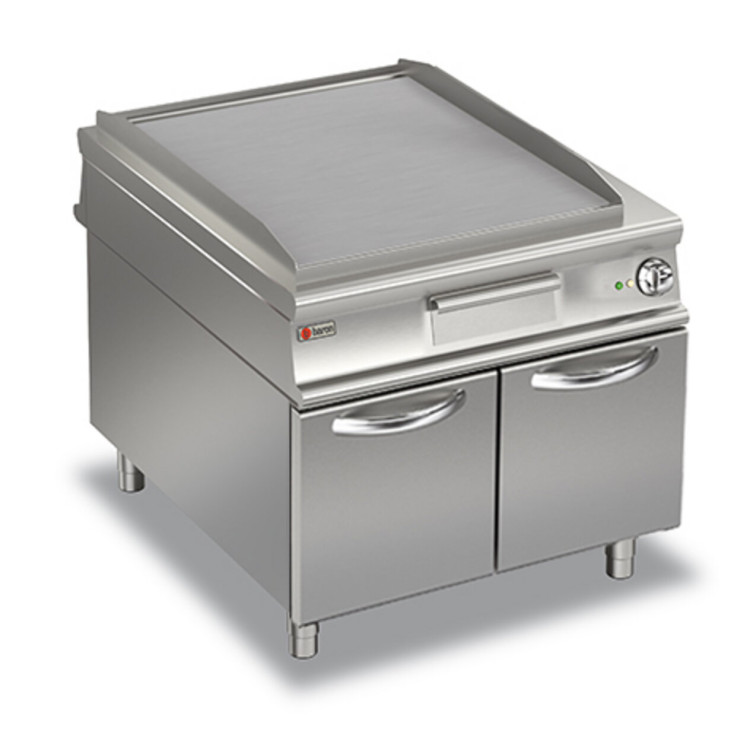

SMOOTH PLATE ELECTRIC THROUGH-TOP FRY-TOP - ON CABINET WITH DOORS
Data Sheet
CR1010979_it.pdf
CR1010979_en.pdf
CR1010979_de.pdf
CR1010979_es.pdf
CR1010979_fr.pdf
CR1010979_pl.pdfDWG-3D
CR1010979.dwgPictures
CR1010979.jpgStainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate).
Large fat collection drawer.
Heating by means of armoured incoloy heating elements.
Thermostatically controlled and adjustable baking temperature from 50 to 300°C.
Safety thermostat.
CR1010979 - Standard Standard
Data sheet
- Model
- N1100FTVP/E900
- CODE
- CR1010979
- Commercial code
- N1100FTVP/E900
- Material type
- ZPF
- Definition
- N1100FTVP/E900 FTE LISCIO M90 A/G C/P
- Depth
- 1100mm
- Height
- 870mm
- Volume
- 0.44m3
- Gross volume
- 1478
- Net weight
- 94Kg
- Gross weight
- 120Kg
- Production site
- BELLUNO
- Product variant
- PIASTRA LISCIA
- Certified model
- N1100FTVP/E900
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 1100
- Packaging width
- 1020
- Packaging height
- 1150
- Width
- 460mm
- Packaging length
- 1260
- Alimentazione
- ELETTRICA
- Tipo piastra
- SMOOTH
- Electrical power
- 20,000Kw
- Frequency
- 50-60 HzHz
- Electrical power
- 380-415V 3N
- IP grade
- IPX4
- Materiale Piastra
- AISI430
Specific References
- MPN
- N1100FTVP/E900
