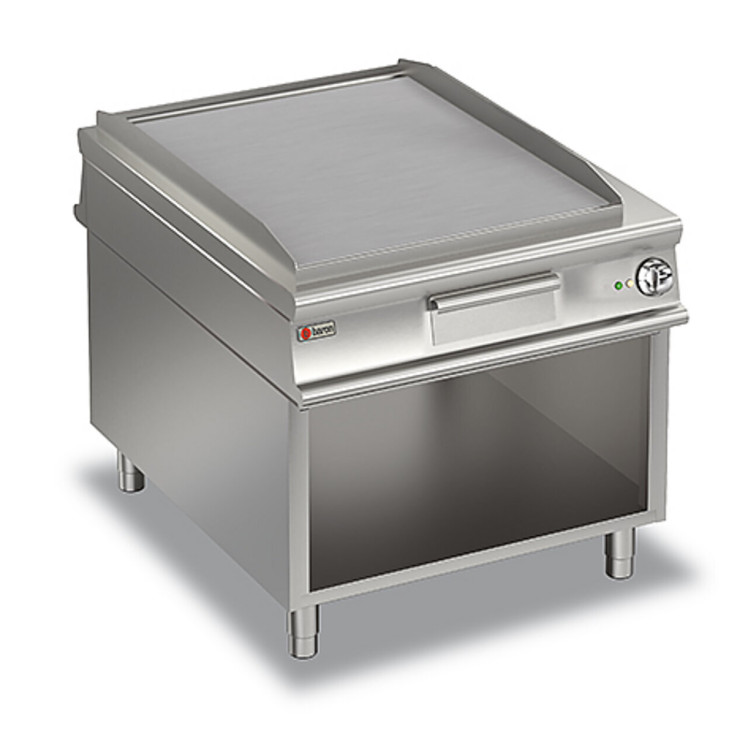

ELECTRIC THROUGH-THE-HOLE FRY-TOP SMOOTH PLATE - ON CABINET
  • ELECTRIC THROUGH-THE-HOLE FRY-TOP SMOOTH PLATE - ON CABINET

ELECTRIC THROUGH-THE-HOLE FRY-TOP SMOOTH PLATE - ON CABINET

Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Cooking plate made of soft iron (normal plate), coated with polished hard chrome (chrome plate). Large fat collection drawer. Heating by means of armoured incoloy heating elements. Thermostatically controlled and adjustable baking temperature from 50 to 300°C. Safety thermostat.
CR1010969 - Standard Standard

Data sheet

Model
N1100FTV/E900
CODE
CR1010969
Commercial code
N1100FTV/E900
Material type
ZPF
Definition
N1100FTV/E900 FTE LISCIO M90 VANO A/G
Depth
1100mm
Height
870mm
Volume
0.861m3
Gross volume
1414
Net weight
104Kg
Gross weight
130Kg
Production site
BELLUNO
Certified model
N1100FTV/E900
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1020
Packaging height
1150
Width
900mm
Packaging length
1260
Alimentazione
ELETTRICA
Tipo piastra
SMOOTH
Electrical power
20,000Kw
Frequency
50-60 HzHz
Electrical power
380-415V 3N
IP grade
IPX4
Materiale Piastra
AISI430

Specific References

MPN
N1100FTV/E900
