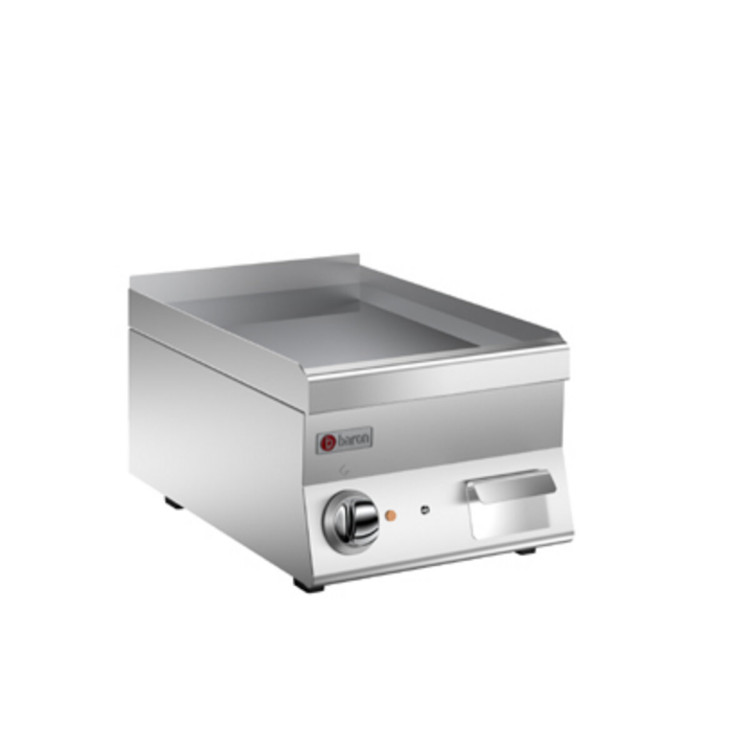

Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values. For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C. The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface. The worktop is slightly inclined so as to channel sauces, fats and seasonings, into the large-capacity collection drawer. All chrome and electric models, have thermostatic temperature control, safety thermostat and indicator lights.


The fry tops are equipped with a perimeter splash guard and a removable drip tray.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

CR1302899 - Standard Standard

Data sheet

Product type
STANDARD
Materiale Piastra
AISI430
IP grade
IPX4
Electrical power
380-415V 3N
Frequency
50-60 HzHz
Electrical power
3,900Kw
Tipo piastra
SMOOTH
Alimentazione
ELETTRICA
Packaging length
840
Width
400mm
Packaging height
690
Packaging width
730
Commercial Line
QUEEN
Company
0232
Model
6NFT/E403L
CE-certified
-
Certified model
6NFT/E403L
Gross weight
77Kg
Net weight
66Kg
Gross volume
0420
Volume
0.071m3
Height
295mm
Depth
600mm
Definition
6NFT/E403L FRY-TOP EL.L 60 M40 430
Material type
ZPF
Commercial code
6NFT/E403L
CODE
CR1302899

Specific References

MPN
6NFT/E403L
