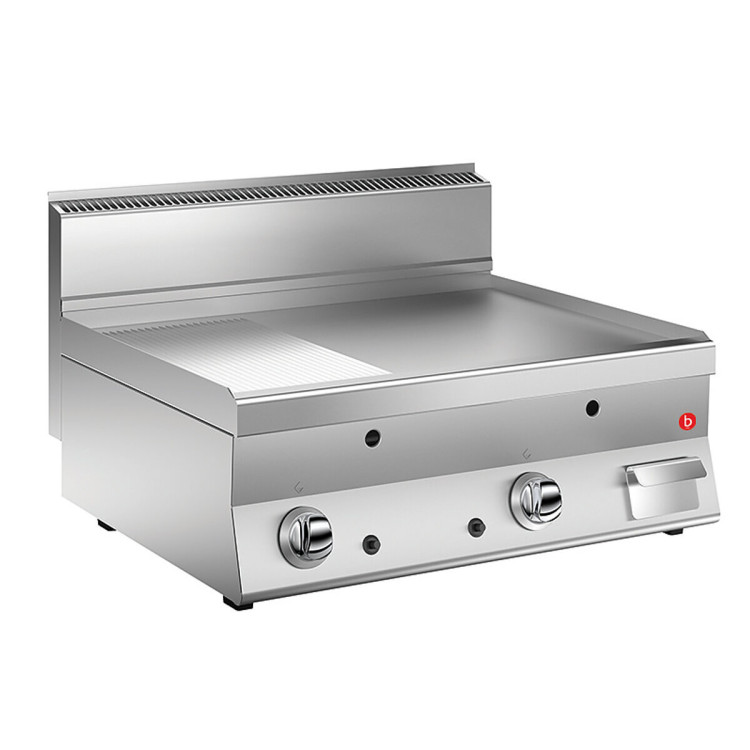

GAS FRY TOP PLATE 2/3 SMOOTH 1/2 RIBBED AISI 430 L800
  • GAS FRY TOP PLATE 2/3 SMOOTH 1/2 RIBBED AISI 430 L800
  • GAS FRY TOP PLATE 2/3 SMOOTH 1/2 RIBBED AISI 430 L800
  • GAS FRY TOP PLATE 2/3 SMOOTH 1/2 RIBBED AISI 430 L800

GAS FRY TOP PLATE 2/3 SMOOTH 1/2 RIBBED AISI 430 L800

Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values. For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C. The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface. The work surface is slightly inclined so as to channel sauces, fats and condiments, into the large-capacity collection drawer. Gas models are equipped with piezo ignition, pilot flame, thermocouple and valved faucet to ensure maximum safety.

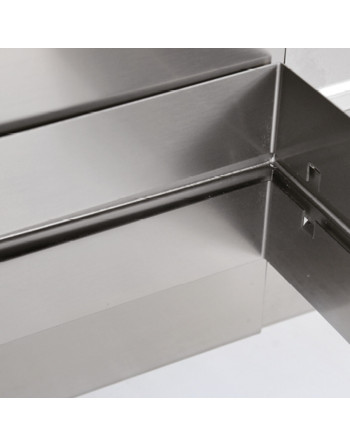

The fry tops are equipped with a perimeter splash guard and a removable drip tray.

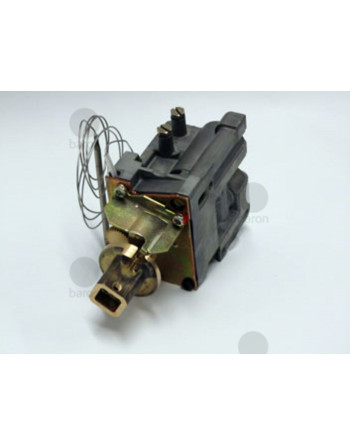

Thermostat gas versions with made-in-Italy regulation valve, which allows precise temperature control 110°C - 280°C , even for the most delicate cooking

CR0999849 - Standard Standard

Data sheet

Production site
BELLUNO
III1a2H3B-P
DK/SE
Materiale Piastra
AISI430
Tipo piastra
SMOOTH
Alimentazione
GAS
Packaging length
440
Width
800mm
Packaging height
680
Packaging width
740
Commercial Line
SERIE 600
Company
0232
Product type
STANDARD
Production start year
2021
CE-certified
CE-0085DL0171
Certified model
N6FT/G823
Chimney type
A1
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gross weight
78Kg
Net weight
69Kg
Gross volume
0422
Gas power Kcal
10750Kcal
Gas power (G25.3/25 mbar)
12,50Kw
Gas power Kw
13,00Kw
Volume
0.153m3
Height
295mm
Depth
650mm
Definition
N6FT/G823 FTG M 430 60 M80
Material type
ZPF
Commercial code
N6FT/G823
CODE
CR0999849
Model
N6FT/G823

Specific References

MPN
N6FT/G823
