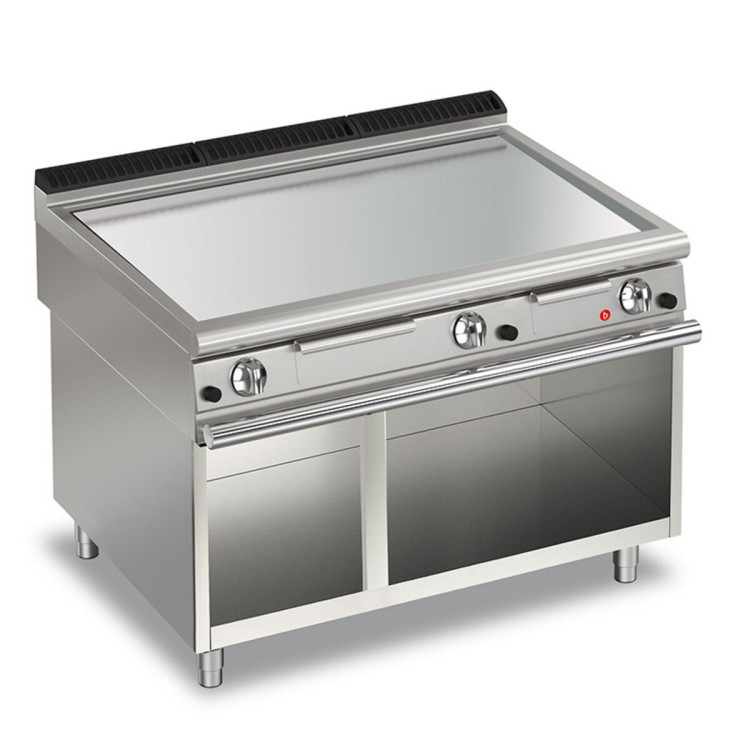

GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED
  • GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED
  • GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED
  • GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED
  • GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED

GAS FRY TOP SMOOTH PLATE AISI 430 ON OPEN ON OPEN CABINET - THERMOSTATED

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. Available with soft iron plate or polished chrome plate. Stabilized flame burners with piezo ignition. Independent controls every 1/2 module. Temperature regulation from 200°c to 400°c with thermocouple safety tap or from 100°c to 280°c with thermostatic valve. For the chrome version, the adjustment ranges from 100° to 280°. Available in three versions: - mild steel (for non-EU markets) - in AISI 430 - chrome-plated Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. AISI430 plate. Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

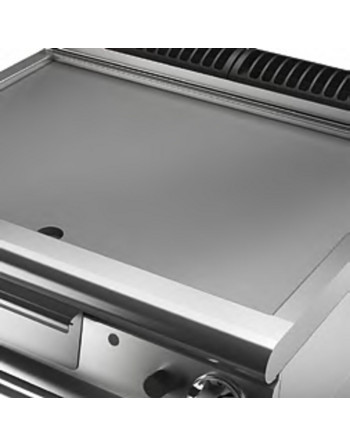

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

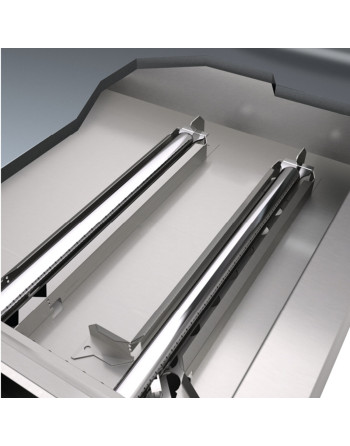

Even heat distribution thanks to several burners under the hotplate.

CR1350509 - Standard Standard

Data sheet

Width
1200mm
Chimney type
A1-B11-B21
Certified model
Q90FTTV/G1203
CE-certified
CE-0085BS0203
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Packaging height
1150
Product variant
PIASTRA LISCIA
Packaging length
1260
Alimentazione
GAS
Tipo piastra
SMOOTH
Materiale Piastra
AISI430
III1a2H3B-P
DK
Plate size
113 x 73
Controllo
THERMOSTATATE
II2H3+
ES/GB/GR/IE/IT/PT/SK
Production site
BELLUNO
Gross weight
230Kg
Net weight
202Kg
Gross volume
1478
Gas power Kcal
25800Kcal
Gas power (G25.3/25 mbar)
30,00Kw
Gas power Kw
31,50Kw
Volume
0.94m3
Height
870mm
Depth
900mm
Definition
Q90FTTV/G1203 FTG LISCIO M120 430 A/G
Material type
ZPF
Commercial code
Q90FTTV/G1203
CODE
CR1350509
Model
Q90FTTV/G1203

Specific References

MPN
Q90FTTV/G1203
