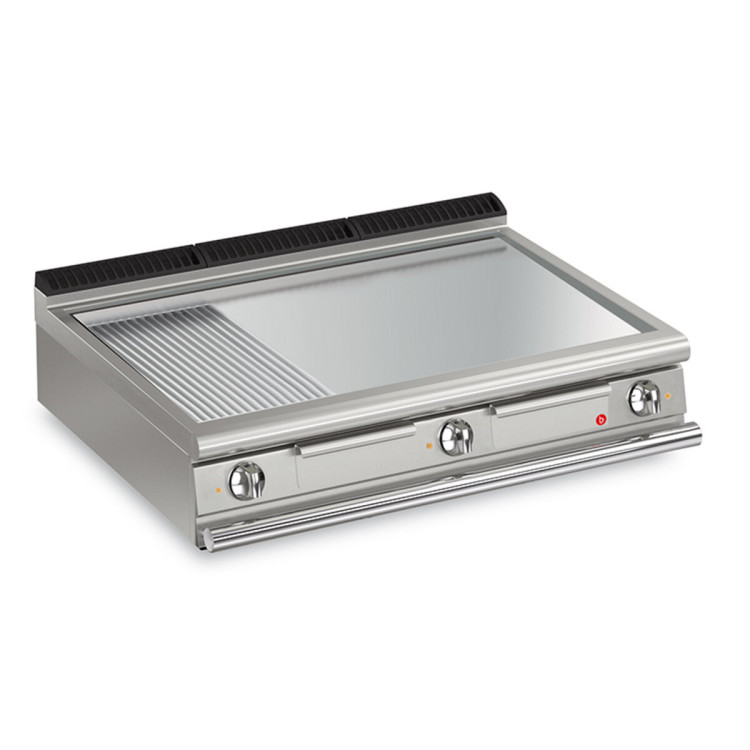

ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION
  • ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION
  • ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION
  • ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION
  • ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION

ELECTRIC FRY TOP PLATE 2/3 SMOOTH 1/3 RIBBED CHROME TOP VERSION

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. Available with soft iron plate or polished chrome plate. High-power armored heating elements made of steels stainless steel. Thermostatic safety control adjustable from 110 to 280°C for all versions. Available in three versions: - mild steel (for non-EU markets) - in AISI 430 Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Chrome-plated plate. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

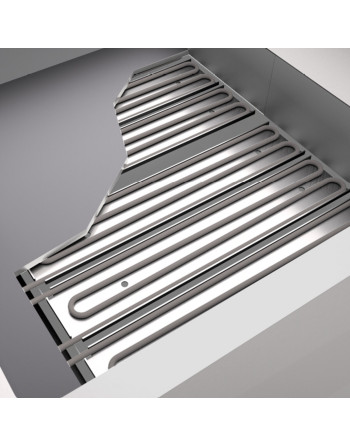

Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity.



A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

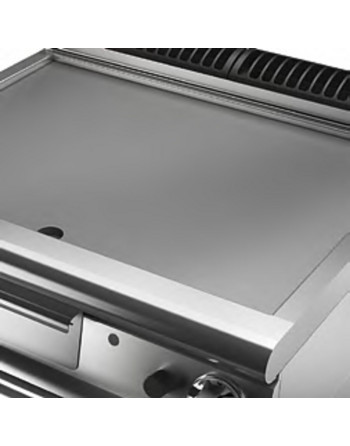

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

CR1017439 - Standard Standard

Data sheet

Company
0232
Controllo
THERMOSTATATE
Plate size
113 x 73
Materiale Piastra
CHROME
IP grade
IPX5
Electrical power
380-415V 3N
Frequency
50-60 HzHz
Electrical power
22,500Kw
Tipo piastra
1/3RIBBED
Alimentazione
ELETTRICA
Packaging length
440
Width
1200mm
Packaging height
500
Packaging width
980
Commercial Line
QUEEN
Model
Q90FT/E1225
Product type
STANDARD
Certified model
Q90FT/E1225
Product variant
PIASTRA LISCIA/RIGATA CROMATA
Production site
BELLUNO
Gross weight
171.8Kg
Net weight
161Kg
Gross volume
0540
Volume
0.27m3
Height
250mm
Depth
900mm
Definition
Q90FT/E1225 FTE 1/3 RIG. CROM. M120 TOP
Material type
ZPF
Commercial code
Q90FT/E1225
CODE
CR1017439

Specific References

MPN
Q90FT/E1225
