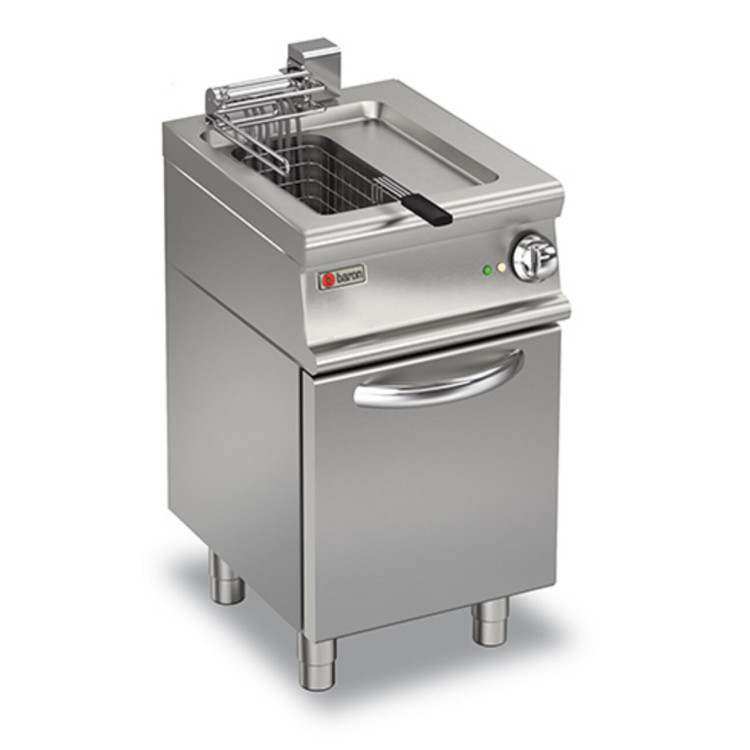

Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain tap. Safety thermostat (230°C) against excessive oil temperatures. Oil temperature controlled by thermostat with adjustment from 100 to 190°C. Tank with a capacity of 10 L. GAS FRYER Heating by stainless steel burner outside tank. ELECTRIC FRYER Heating by armored heating elements inside the tank and rotatable by more than 90°.
CR1010369 - Standard Standard

Data sheet

Model
N550FR/E450
CODE
CR1010369
Commercial code
N550FR/E450
Material type
ZPF
Definition
N550FR/E450 FRIGGITRICE ELE. 1V.10LT M45
Depth
550mm
Height
870mm
Volume
0.215m3
Gross volume
0475
Net weight
47Kg
Gross weight
69Kg
Production site
BELLUNO
Chimney type
A1
Certified model
N550FR/E450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
700
Packaging height
1280
Width
450mm
Packaging length
530
Alimentazione
ELETTRICA
Electrical power
9,000Kw
Frequency
50-60 HzHz
Capacity
15 litri
Electrical power
380-415V 3N
IP grade
IPX4
Capacità litri
10L
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Cestelli
1 basket 15.7x32x12.2

Specific References

MPN
N550FR/E450
