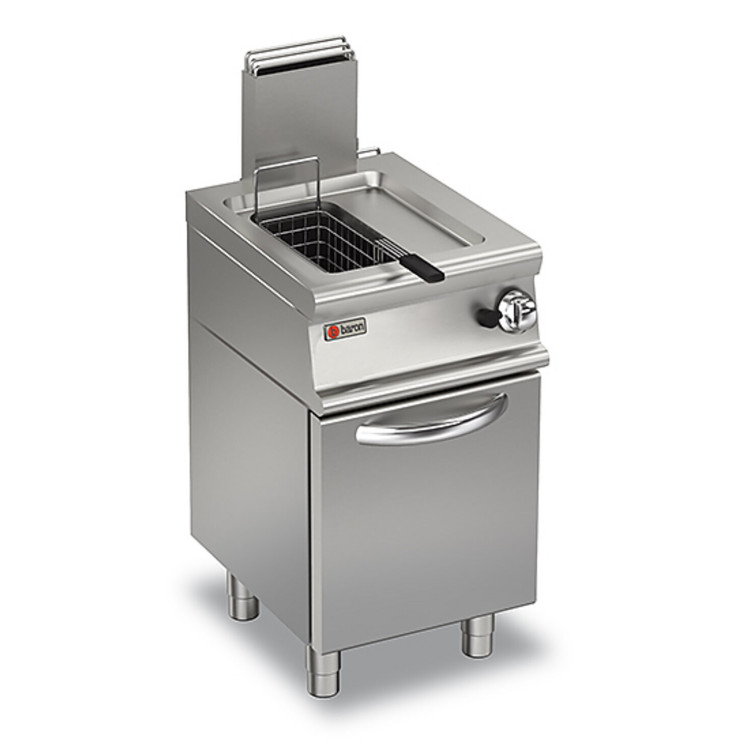

Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain tap. Safety thermostat (230°C) against excessive oil temperatures. Oil temperature controlled by thermostat with adjustment from 100 to 190°C. Tank with a capacity of 10 L. GAS FRYER Heating by stainless steel burner outside tank. ELECTRIC FRYER Heating by armored heating elements inside the tank and rotatable by more than 90°.
CR1010349 - Standard Standard

Data sheet

Chimney type
A1
Cestelli
1 basket 15.7x32x12.2
Gas/refrigerant type
METANO "H E" G20 20/25mbar
III1a2H3B-P
DK
Capacità litri
10L
Capacity
15 litri
Alimentazione
GAS
Packaging length
530
Width
450mm
Packaging height
1280
Packaging width
700
Commercial Line
SERIE 1100
Company
0232
Product type
STANDARD
CE-certified
CE-0085CM0480
Certified model
N550FR/G450
II2H3+
ES/GB/GR/IE/IT/PT/SK
Production site
BELLUNO
Gross weight
100Kg
Net weight
78Kg
Gross volume
0475
Gas power Kcal
14792Kcal
Gas power (G25.3/25 mbar)
17,20Kw
Gas power Kw
9,50Kw
Volume
0.215m3
Height
870mm
Depth
550mm
Definition
N550FR/G450 FRIGGITRICE GAS 1V.10LT M45
Material type
ZPF
Commercial code
N550FR/G450
CODE
CR1010349
Model
N550FR/G450

Specific References

MPN
N550FR/G450
