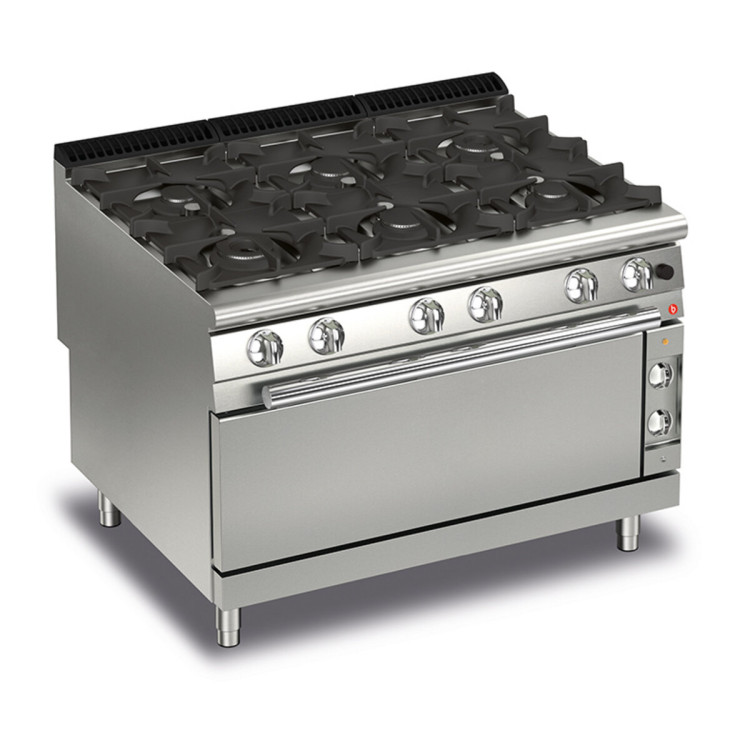

6-BURNER GAS COOKER ON WIDE GAS OVEN

Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Promo
Tipo Alimentazione
Print
Entirely moulded top made from thick stainless steel plate. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. Optional stainless rod grates available. High power cast-iron burners (3.5- 5.7- 7 and 10 kW). Piezoelectric ignition of burners available as an option. Removable stainless steel bi-fire bowl accessory. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Entirely moulded top made from thick stainless steel plate.

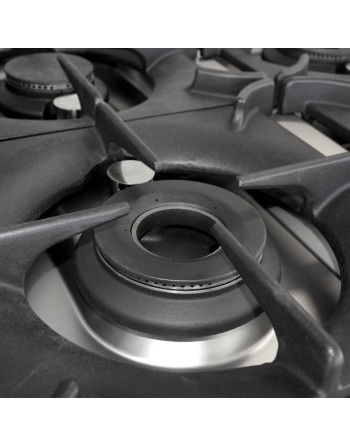

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.

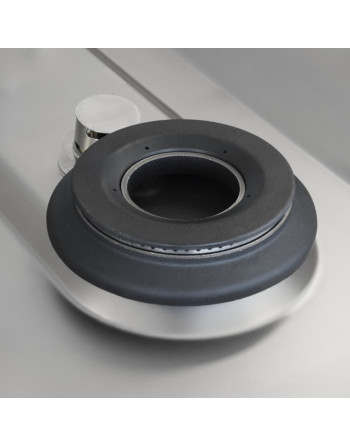

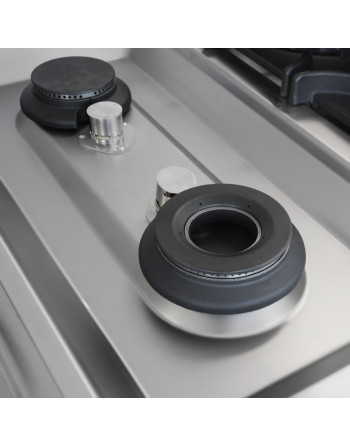

High power cast iron burners 3.5- 5.7- 7 and 10 kW.

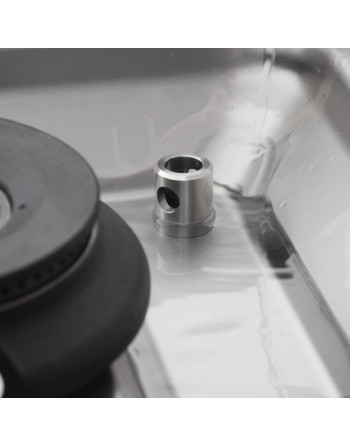

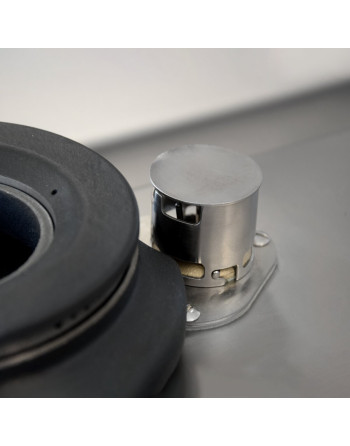

Protected pilot flame with removable and easily washable protection.



Self-cleaning version with liquid drain hole, electric ignition and flat connection kit AVAILABLE ON REQUEST

Q90PCFL/G1201
CR1015729 - Standard Standard

Data sheet

Packaging width
1020000
Material type
ZPF
Packaging height
1130
Definition
Q90PCFL/G1201 6F C/FORNO MAXI GAS
Width
1200mm
Depth
900mm
Packaging length
1240
Height
870mm
Volume
0.94m3
Alimentazione
MISTA
Gas power Kw
41,90Kw
Gross weight
238Kg
Gas power (G25.3/25 mbar)
41,90Kw
Net weight
212Kg
Gas power Kcal
36034Kcal
Electrical power
4.5Kw
380-415V 3N
Gross volume
1430
Frequency
50-60 HzHz
N. Fires/Plates
SEI FUOCHI
Production site
BELLUNO
Chimney type
A1
Certified model
Q90PCFL/G1201
IP grade
IPX4
CE-certified
CE-0085BS0151
Voltage
400
II2H3+
ES/GB/GR/IE/IT/PT/SK
Product type
5%
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Model
Q90PCFL/G1201
Company
0232
Code
CR1015729
Commercial Line
QUEEN
Commercial code
Q90PCFL/G1201

Specific References

mpn
Q90PCFL/G1201

Download

CR1015729_it.pdf

Download (1.03MB)

CR1015729_de.pdf

Download (1.03MB)

CR1015729_en.pdf

Download (1.03MB)

CR1015729_es.pdf

Download (1.03MB)

CR1015729_fr.pdf

Download (1.03MB)
