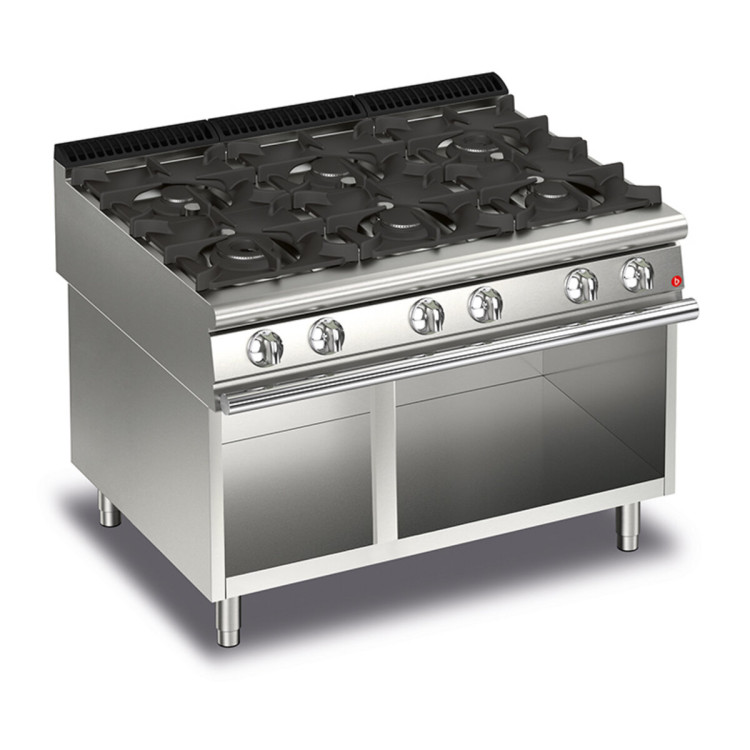

6-BURNER GAS COOKER ON OPEN COMPARTMENT

Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Tipo Alimentazione
Print
Entirely moulded top made from thick stainless steel plate. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. Optional stainless rod grates available. High power cast-iron burners (3.5- 5.7- 7 and 10 kW). Piezoelectric ignition of burners available as an option. Removable stainless steel bi-fire bowl accessory. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Entirely moulded top made from thick stainless steel plate.

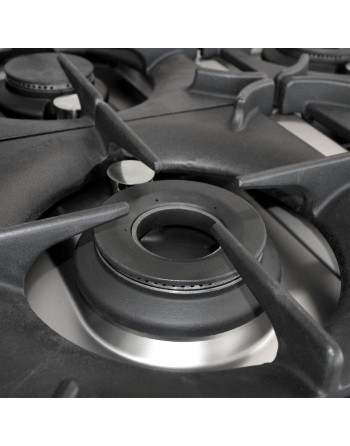

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.

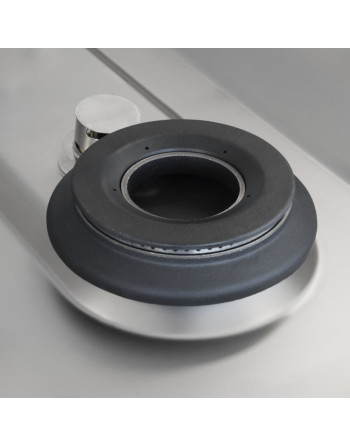

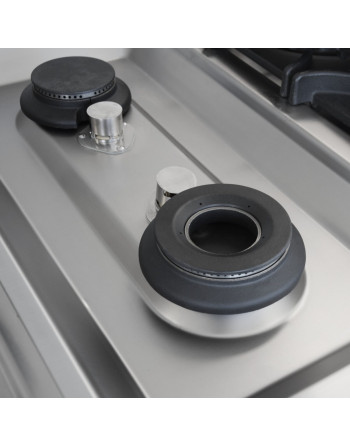

High power cast iron burners 3.5- 5.7- 7 and 10 kW.

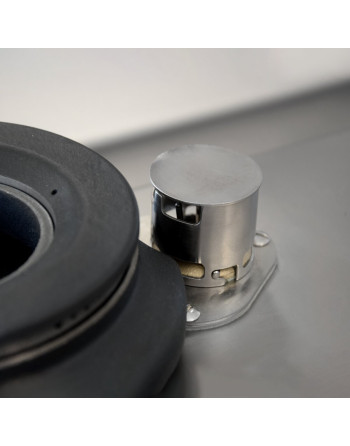

Protected pilot flame with removable and easily washable protection.



Self-cleaning version with liquid drain hole, electric ignition and flat connection kit AVAILABLE ON REQUEST

Q90PCV/G1201
CR1015569 - Metano Standard

Data sheet

Model
Q90PCV/G1201
Code
CR1015569
Material type
ZPF
Definition
Q90PCV/G1201 6 FUOCHI A/G
Width
1200mm
Height
870mm
Depth
900mm
Volume
0.94m3
Gross volume
1430
Net weight
117Kg
Gross weight
148Kg
Certified model
Q90PCV/G1201
CE-certified
CE-0085BS0151
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Packaging height
1130
Packaging length
1240
Alimentazione
GAS
Commercial code
Q90PCV/G1201
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
32.4Kw
Gas power (G25.3/25 mbar)
32,40Kw
Gas power Kcal
27864Kcal
N. Fires/Plates
SEI FUOCHI
Chimney type
A1
Gas/refrigerant type
METANO "H E" G20 20/25mbar

Specific References

mpn
Q90PCV/G1201

Download

CR1015569_it.pdf

Download (1.13MB)

CR1015569_de.pdf

Download (1.13MB)

CR1015569_en.pdf

Download (1.13MB)

CR1015569_es.pdf

Download (1.13MB)

CR1015569_fr.pdf

Download (1.13MB)
