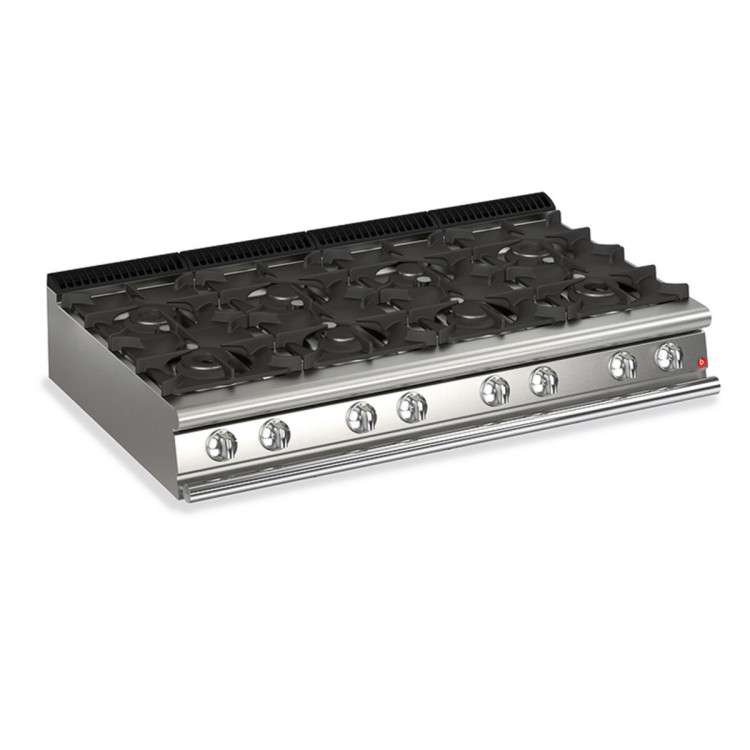

8-BURNER GAS COOKER TOP VERSION

Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Tipo Alimentazione
Print
Entirely moulded top made from thick stainless steel plate. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. Optional stainless rod grates available. High power cast-iron burners (3.5- 5.7- 7 and 10 kW). Piezoelectric ignition of burners available as an option. Removable stainless steel bi-fire bowl accessory. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Entirely moulded top made from thick stainless steel plate.

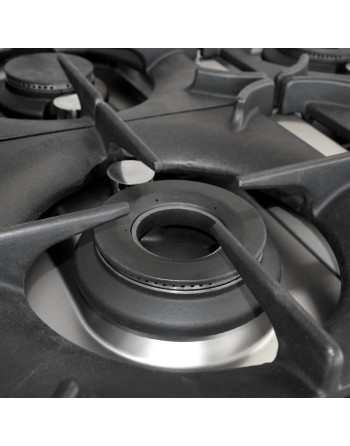

Enamelled cast-iron grills with long spokes for easy movement of pans between fires.

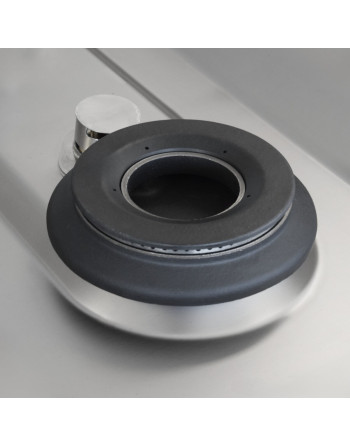

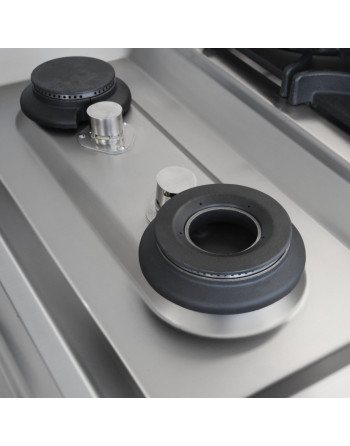

High power cast iron burners 3.5- 5.7- 7 and 10 kW.

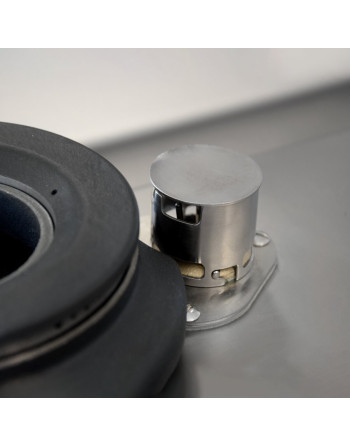

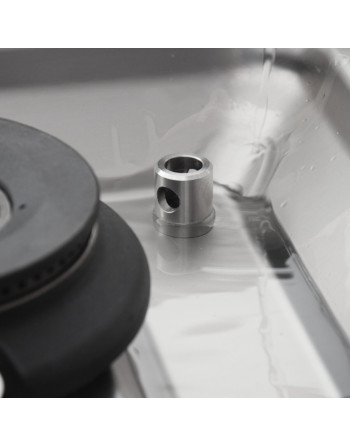

Protected pilot flame with removable and easily washable protection.



Self-cleaning version with liquid drain hole, electric ignition and flat connection kit AVAILABLE ON REQUEST

Q90PC/G1601
CR1015469 - Metano Standard

Data sheet

Model
Q90PC/G1601
Code
CR1015469
Material type
ZPF
Definition
Q90PC/G1601 8 FUOCHI GAS TOP
Width
1600mm
Height
250mm
Depth
900mm
Volume
0.36m3
Gross volume
1200
Net weight
120Kg
Gross weight
140Kg
Certified model
Q90PC/G1601
CE-certified
CE-0085BS0151
Company
0232
Commercial Line
QUEEN
Packaging width
980
Packaging height
540
Packaging length
440
Alimentazione
GAS
Commercial code
Q90PC/G1601
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
46.4Kw
Gas power (G25.3/25 mbar)
46,40Kw
Gas power Kcal
39904Kcal
Chimney type
A1

Specific References

mpn
Q90PC/G1601

Download

CR1015469_it.pdf

Download (1.04MB)

CR1015469_de.pdf

Download (1.04MB)

CR1015469_en.pdf

Download (1.04MB)

CR1015469_es.pdf

Download (1.04MB)

CR1015469_fr.pdf

Download (1.04MB)
