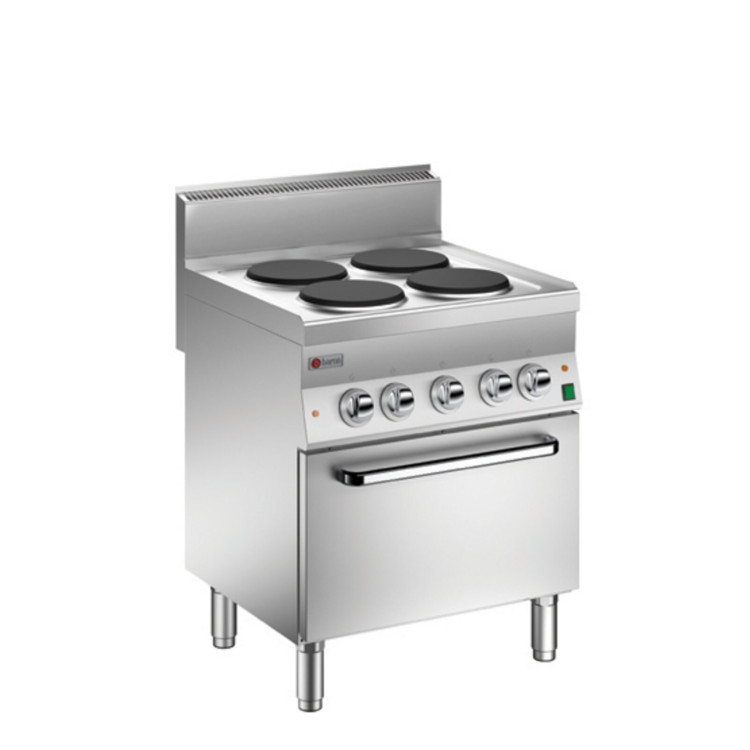

KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN
  • KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN
  • KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN
  • KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN
  • KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN

KITCHEN 4 ELECTRIC HOTPLATES ON ELECTRIC FAN OVEN

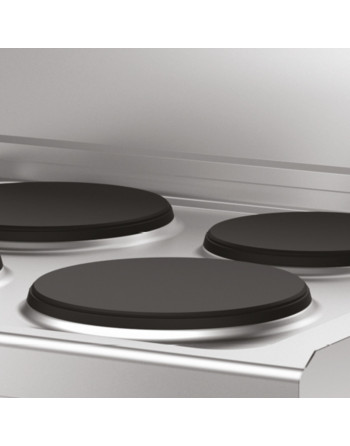

Electric cookers have round cast iron plates hermetically fixed on the top and are 180 mm and 220 mm in diameter, with 1.5 and 2.6 kW power respectively. Also available in upgraded versions with all 2.6 kW plates. Static or ventilated GN 1/1 electric oven with adjustable temperature from 110-280°C. The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.


The plates are hermetically attached to the top, which has a vessel for collecting liquids and is completely smooth for easier cleaning.



The electric oven of GN 1/1 dimensions is equipped with armoured heating elements on the top and bottom with independent regulation and adjustable thermostat from 110 to 280°C.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

CR0855809 - Standard Standard

Data sheet

Product type
STANDARD
Power supply 2
220-240V 3
IP grade
IPX3
Electrical power
380-415V 3N
Frequency
50-60 HzHz
Electrical power
14,600Kw
Alimentazione
ELETTRICA
Packaging length
640
Width
700mm
Packaging height
1170000
Packaging width
740000
Commercial Line
SERIE 600
Company
0232
Model
6NPC/EFEV700P
CE-certified
-
Certified model
6NPC/EFEV700P
Gross weight
77Kg
Net weight
63.2Kg
Gross volume
0554
Volume
0.365m3
Height
870mm
Depth
600mm
Definition
4 PIASTRE E.F.EL/V.60 M70 6NPC/EFEV700P
Material type
ZPF
Commercial code
6NPC/EFEV700P
CODE
CR0855809

Specific References

MPN
6NPC/EFEV700P
