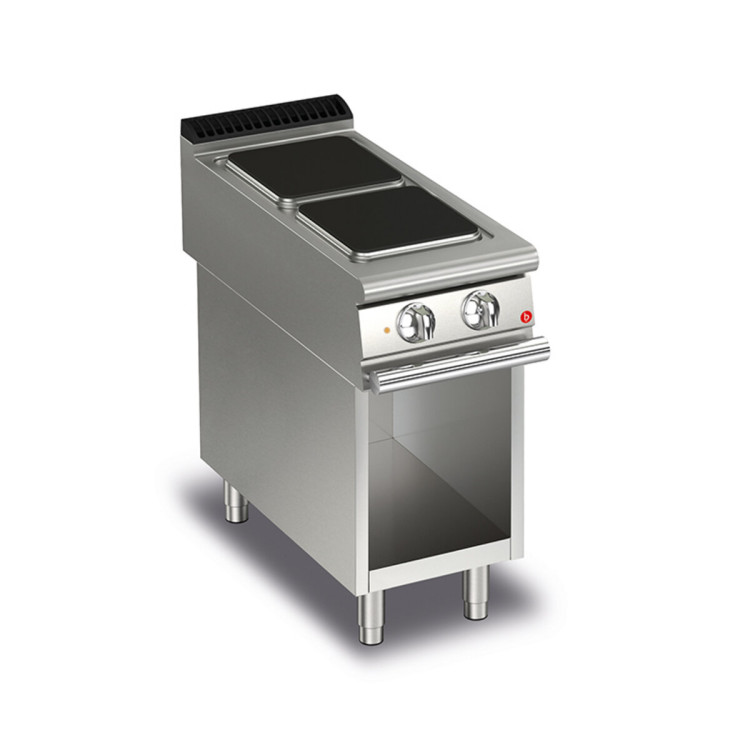

KITCHEN 2 ELECTRIC SQUARE PLATES ON OPEN COMPARTMENT

Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.
Electric Ranges: 300x300 mm cast iron plates, maximum power of 4 kW, safety thermostat and 7-position selector, water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.All-molded hob made from a single sheet of thick stainless steel. Cast-iron radiant plates, fixed watertight to eliminate any liquid infiltration on electrical wiring. 6-position, ergonomic, recessed and tilted power output knobs. Warning lights indicating "plates under tension." Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°C to 300°C. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

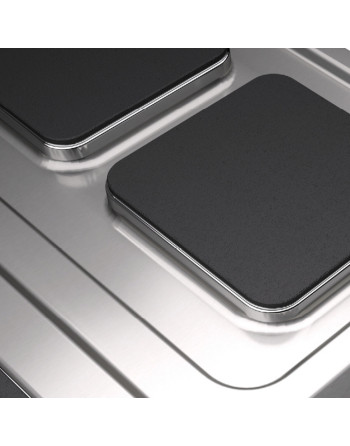

Square plates of 30x30 each, fixed watertight on the worktop.

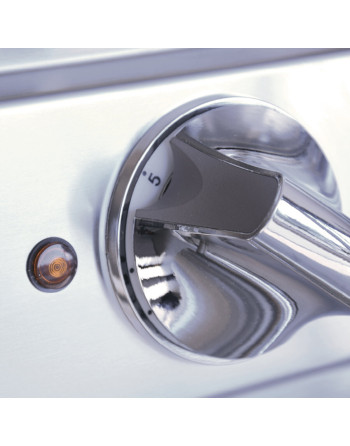

The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard.



Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme.

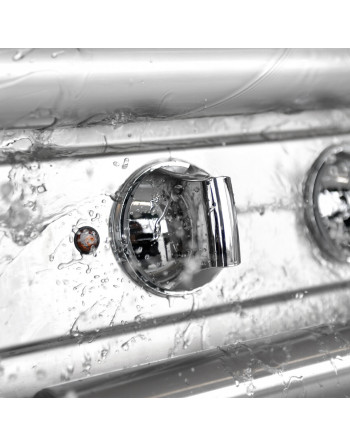

Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.

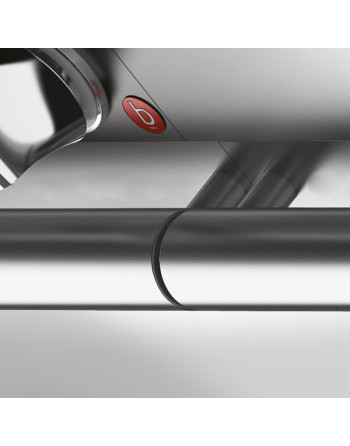

The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

CR1015799 - Standard Standard

Data sheet

Product type
STANDARD
Configurazione
2Z30x30
N. Fires/Plates
DUE FUOCHI
IP grade
IPX5
Electrical power
380-415V 3N
Frequency
50-60 HzHz
Electrical power
8,000Kw
Alimentazione
ELETTRICA
Packaging length
440
Width
400mm
Packaging height
1160
Packaging width
1020
Commercial Line
QUEEN
Company
0232
Model
Q90PCV/E401
Certified model
Q90PCV/E401
Product variant
PIASTRE EL.QUADRE
Production site
BELLUNO
Gross weight
41.9Kg
Net weight
31.9Kg
Gross volume
0522
Volume
0.313m3
Height
870mm
Depth
900mm
Definition
Q90PCV/E401 2 P.EL.Q. A/G
Material type
ZPF
Commercial code
Q90PCV/E401
CODE
CR1015799

Specific References

MPN
Q90PCV/E401
