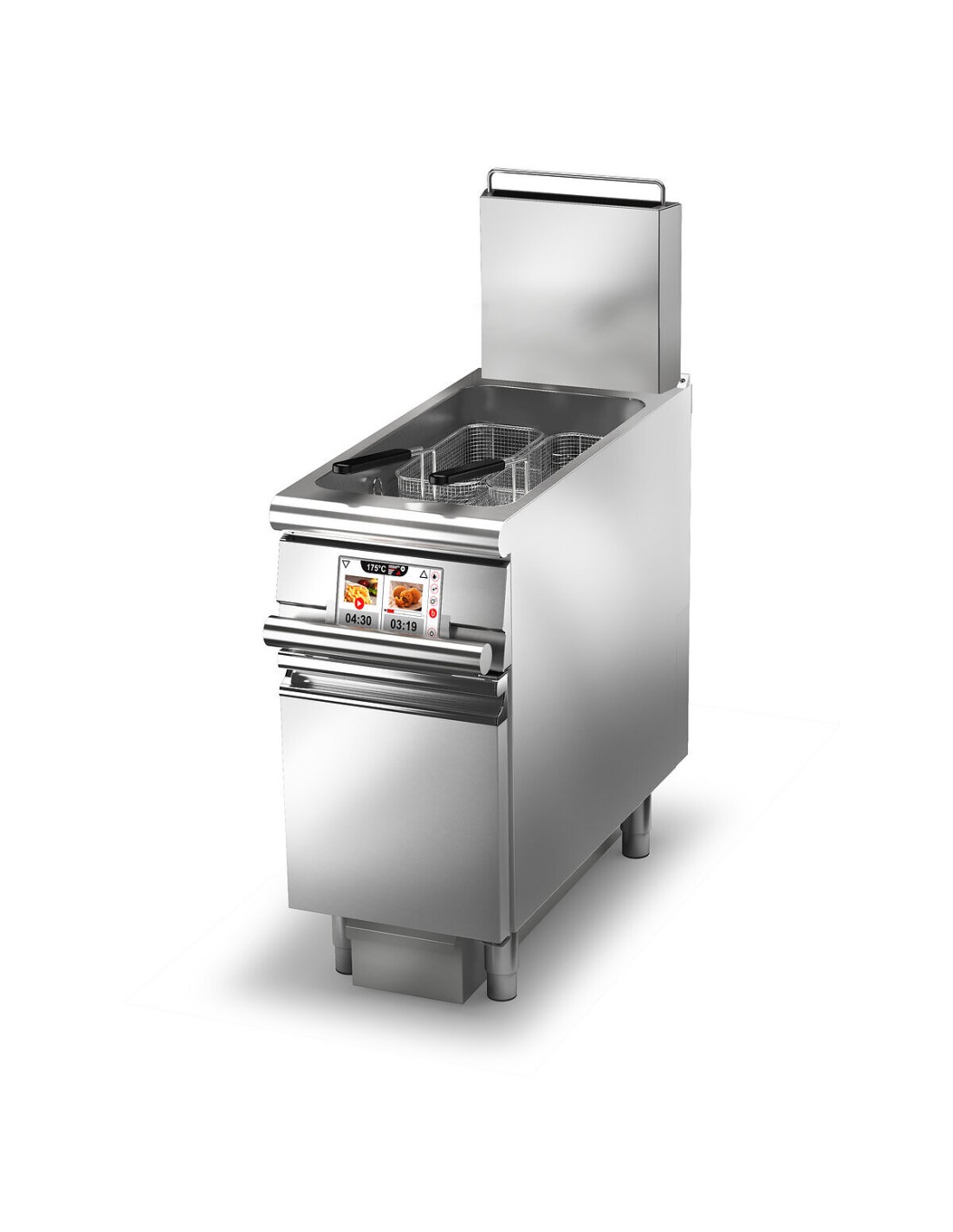

EVO GAS FRYER 1 TANK ELECTRONIC CONTROL 23 LT - Basic version

Worktop, cooking tank and dashboard made of AISI 304 stainless steel. Molded firing pan with radiused inner profile. Equipped with a large front reservoir for oil and foam expansion. Large cold zone at the bottom ensures longer integrity of the oil used. Manual reset safety thermostat. Removable filter, baskets, lid and manifold for drain tap included. Height-adjustable stainless steel feet. IPX5 degree of protection. Gas version Stainless steel burner outside the tank. Oil temperature is regulated by thermostat. Electric version Armored heating element made of AISI 304 stainless steel, inside the pots rotatable by more than 90°. Control panel with high-resolution 7" touch screen display, simple and intuitive. Oil circulation and filtration Automatic choice from a selection of pre-set and tested recipes that can be stored by the user. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 connectivity-ready version. Model T4w

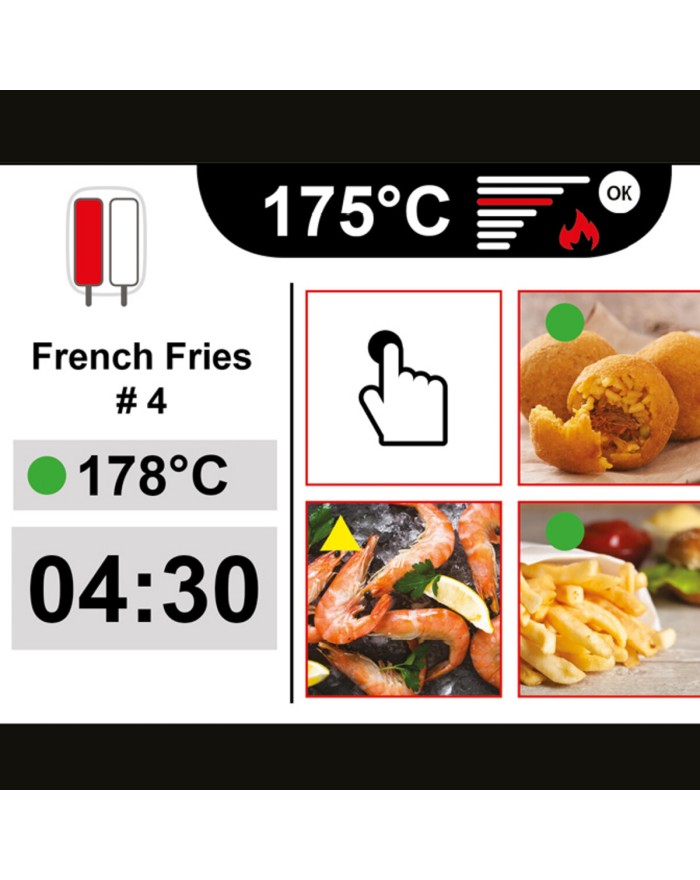

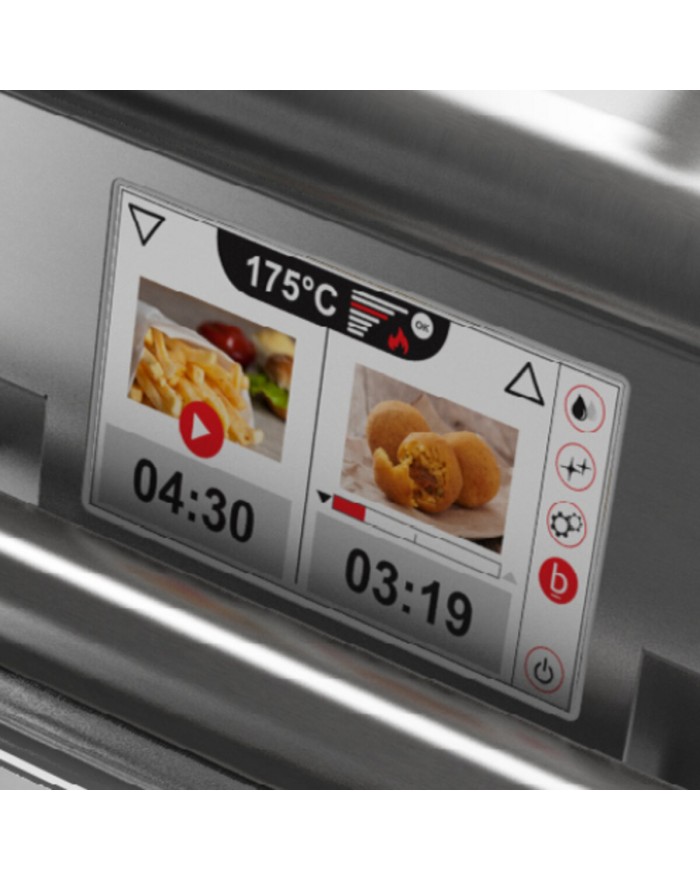

Control panel with 7-inch high-resolution touchì screen display, simple and intuitive.



Oil circulation and filtration

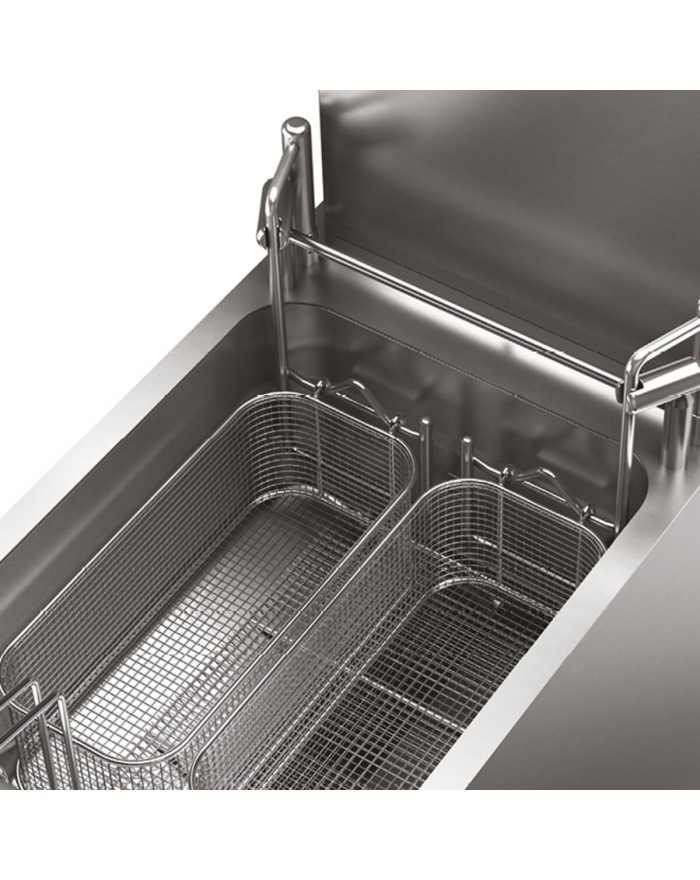

Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time.



Automatic choice from a selection of pre-set and tested recipes that can be stored by the user.

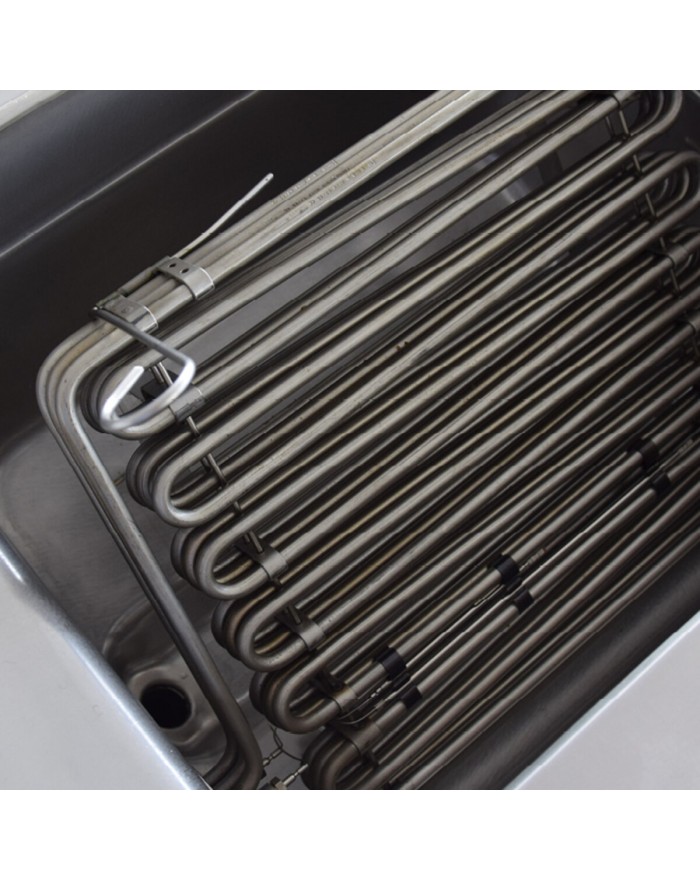

In the electric version with a22-liter tank, the heating element can be rotated more than 90°.

QT90FREV/G423-T4W
CR1209949T4W

Data sheet

Model
QT90FREV/G423-T4W
Code
CR1209949T4W
Width
400mm
Height
870mm
Depth
900mm
Company
0232
Alimentazione
MISTA
Gas power Kw
25Kw
Gas power (G25.3/25 mbar)
25,00Kw
Gas power Kcal
21500Kcal
Capacità litri
23L
