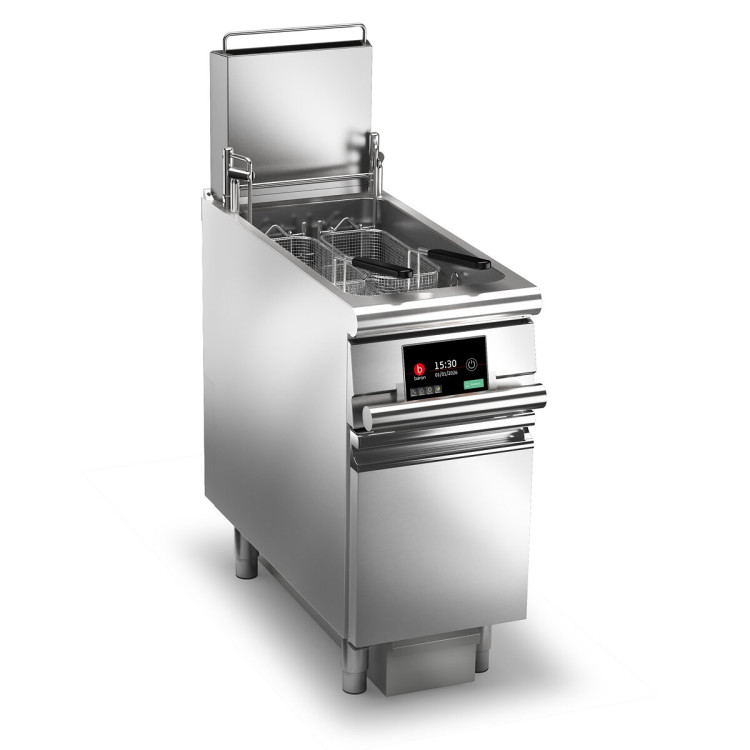

EVO GAS FRYER 1 BOWL with ELECTRONIC CONTROL 23 LT - With filtering + basket lifter

Worktop, cooking tank and dashboard made of AISI 304 stainless steel. Molded firing pan with radiused inner profile. Equipped with a large front reservoir for oil and foam expansion. Large cold zone at the bottom ensures longer integrity of the oil used. Manual reset safety thermostat. Removable filter, baskets, lid and manifold for drain tap included. Height-adjustable stainless steel feet. IPX5 degree of protection. Gas version Stainless steel burner outside the tank. Oil temperature is regulated by thermostat. Electric version Armored heating element made of AISI 304 stainless steel, inside the pots rotatable by more than 90°. Control panel with high-resolution 7" touch screen display, simple and intuitive. Oil circulation and filtration Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time. Automatic choice from a selection of pre-set and tested recipes that can be stored by the user. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 connectivity-ready version. Model T4w

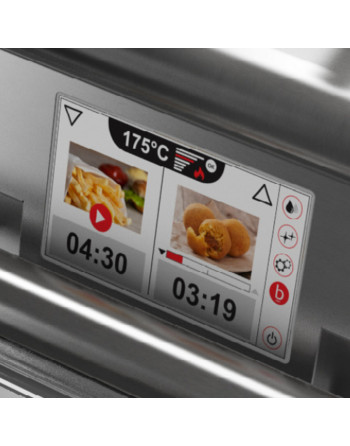

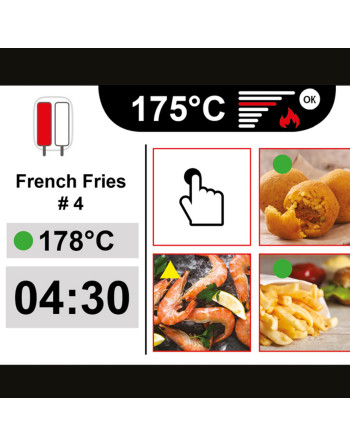

Control panel with 7-inch high-resolution touchì screen display, simple and intuitive.



Oil circulation and filtration

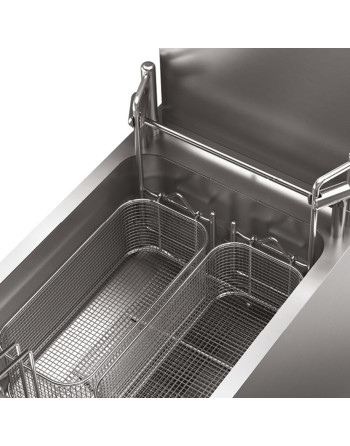

Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time.



Automatic choice from a selection of pre-set and tested recipes that can be stored by the user.

BN1209979 - Standard Standard

Data sheet

II2H3+
ES/GB/GR/IE/IT/PT/SK
Model
QS90FREV/G423FA
CODE
BN1209979
Material type
ZPF
Definition
Q90FREV/G423FA-T4W FRIG. GAS IOT 900 M40
Depth
900mm
Height
870mm
Volume
0.313m3
Gas power Kw
25,00Kw
Gas power (G25.3/25 mbar)
25,00Kw
Gas power Kcal
21500Kcal
Gross volume
0655
Net weight
100Kg
Gross weight
113Kg
Chimney type
A1-B21
Certified model
Q90FREV/G423FA
CE-certified
CE-0051DM5041/M1
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
440
Packaging height
1460
Width
400mm
Packaging length
1020
Alimentazione
MISTA
Electrical power
0,100Kw
Frequency
50 HzHz
Electrical power
220-240V 1N
IP grade
IPX5
Capacità litri
23L

Specific References

MPN
QS90FREV/G423FA
