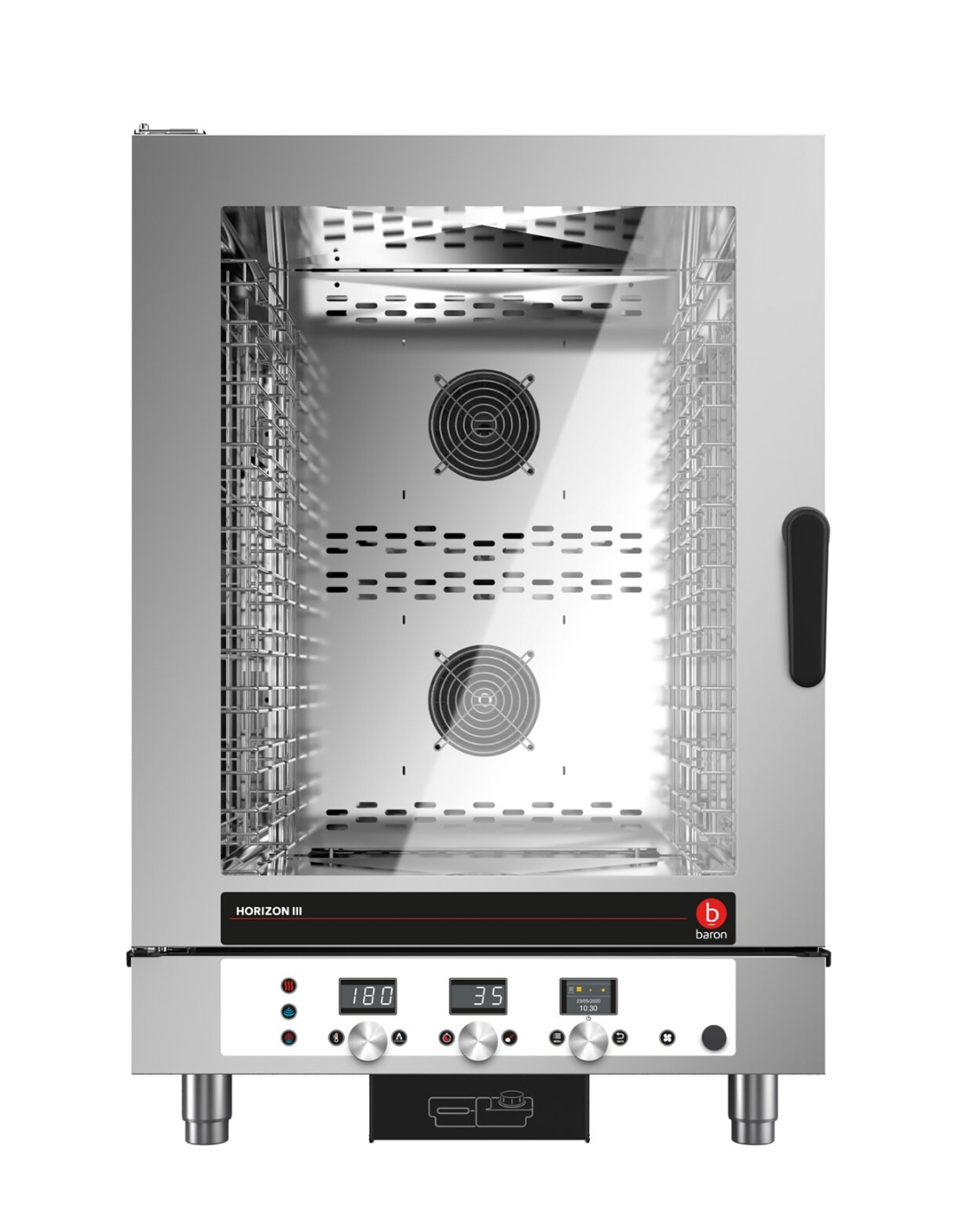

DIRECT STEAM GAS COMBI-OVEN - 10 X 1/1 GN - 10 X 600 X 400 ● ELECTROMECHANICAL CONTROLS

COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
Tipo Alimentazione
Print
The control panel of the manual oven consists of selectors and knobs with an ergonomic design that makes it easy to use and intuitive. Functions are controlled by electromechanical controls, while indicator lights provide feedback on oven operation clearly and immediately. COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
HOGM101E
HOGM101E - Metano Standard

Data sheet

Model
HOGM101E
Code
HOGM101E
Material type
ZPF
Definition
ICGM101E MISTO GAS 10T C/MEC.
Width
812mm
Height
1145mm
Depth
725mm
Volume
0.674m3
Electrical power
0.5Kw
220-240V 1N
Gross volume
1085
Net weight
115Kg
Gross weight
130Kg
IP grade
IPX3
Certified model
MEGM101E
Product type
STANDARD
Company
0230
Commercial Line
ICON E
Packaging width
910
Packaging height
1370
Packaging length
870
Alimentazione
GAS
Commercial code
ICGM101E
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
16Kw
Chimney type
A3-B13-B23
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Variants
PORTA STD

Specific References

mpn
HOGM101E

Download

HOGM101E_it.pdf

Download (625.87KB)

HOGM101E_de.pdf

Download (628.31KB)

HOGM101E_en.pdf

Download (625.25KB)

HOGM101E_es.pdf

Download (626.46KB)

HOGM101E_fr.pdf

Download (629.22KB)
