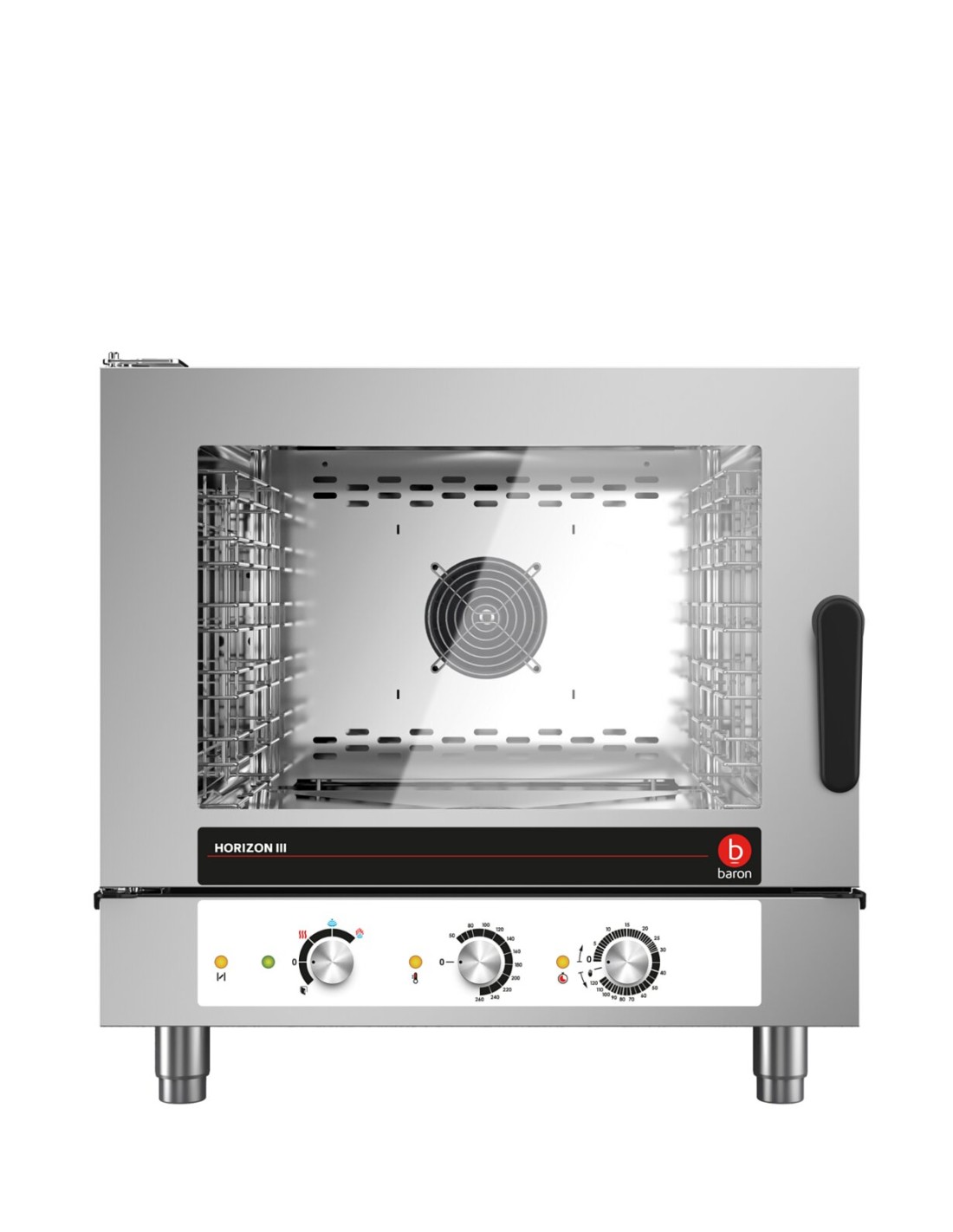

DIRECT STEAM GAS COMBI-OVEN - 5 X 1/1 GN - 5 X 600 X 400 ● ELECTROMECHANICAL CONTROLS

Data Sheet

HOGM051E_pl.pdf

DWG-3D

HOGM051E.dwg

Pictures


Tipo Alimentazione

Promo

Categories: Home , OVENS , Horizon III , M Control

Tags:

The control panel of the manual oven consists of selectors and knobs with an ergonomic design that makes it easy to use and intuitive. Functions are controlled by electromechanical controls, while indicator lights provide feedback on oven operation clearly and immediately. COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).

always cooking uniformity,thanks to the CLIMA system: automatic temperature and humidity control always ideal depending on the food being cooked.

For gas ovens, the Green Fine Tuning burner modulation system and patented high-efficiency heat exchanger prevent wasted power and reduce harmful emissions.

The Ecospeed Dynamic system, depending on the quantity and type of product, optimises and controls the energy supply, ensuring the correct cooking temperature at all times, avoiding fluctuations and thus lower energy and water consumption and reduced weight loss.

Modello HOGM051E

Codice HOGM051E - Standard Standard

Data sheet

Variants: PORTA STD
Net weight: 83Kg
Gross weight: 95Kg
Chimney type: A3-B13-B23
Certified model: MEGM051E
Product type: PLANNED VARIANT
II2H3+: ES/GB/GR/IE/IT/PT/SK
Company: 0230
Model: HOGM051E
Commercial Line: ICON E
CODE: HOGM051E
Packaging width: 870
Commercial code: ICGM051E
Packaging height: 1000
Material type: ZPF
Width: 812mm
Definition: ICGM051E MISTO GAS 5T C/MEC.
Packaging length: 910
Depth: 725mm
Alimentazione: GAS
Height: 770mm
Electrical power: 0.25Kw
220-240V 1N
Volume: 0.453m3
IP grade: IPX3
Gas power Kw: 8.5Kw
Gas/refrigerant type: METANO "H E" G20 20/25mbar
Gross volume: 0792

Specific References

mpn: HOGM051E

SECURITY DOOR OPENING WITH DOUBLE CLICK

Modello: APDS
Codice: APDS
