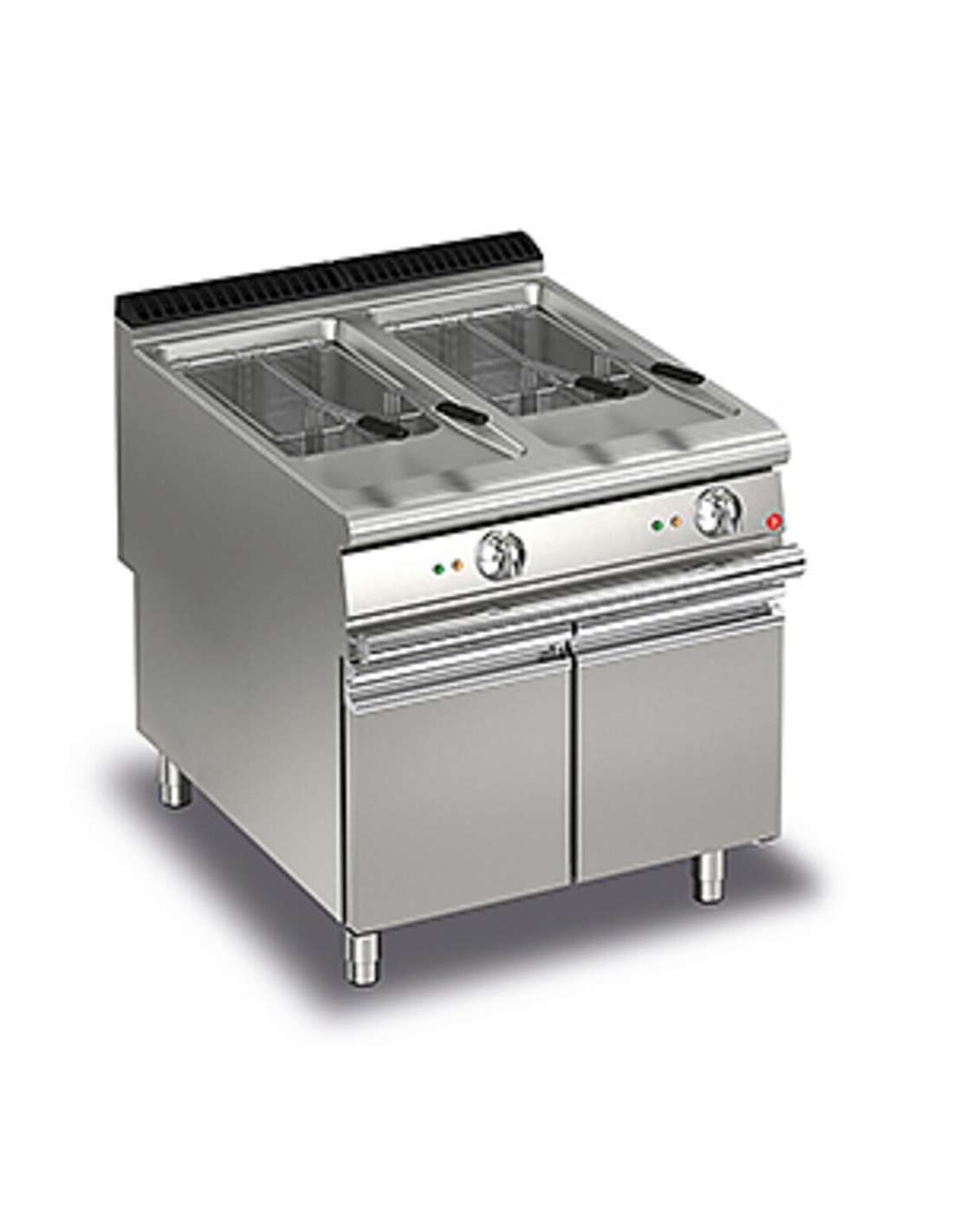

ELECTRIC FRYER 2 BASINS 22+22 L - WITH 4 BASKET KIT

Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.
Tipo Alimentazione
Promo
Print
Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.Stainless steel outer shells and feet. Working table height adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain taps. Oil drip pans on request. Safety thermostat (230°C) against excessive oil temperatures Gas version: Heating by stainless steel burner outside the tank (1-tank model with in-tank burner also available). Oil temperature controlled by mechanical thermostat with adjustment from 100 to 185°C. Electric version: Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version. Fully removable heating element in das 10 and 15-liter tank version. The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.



Tank depth and width increased to increase capacity.

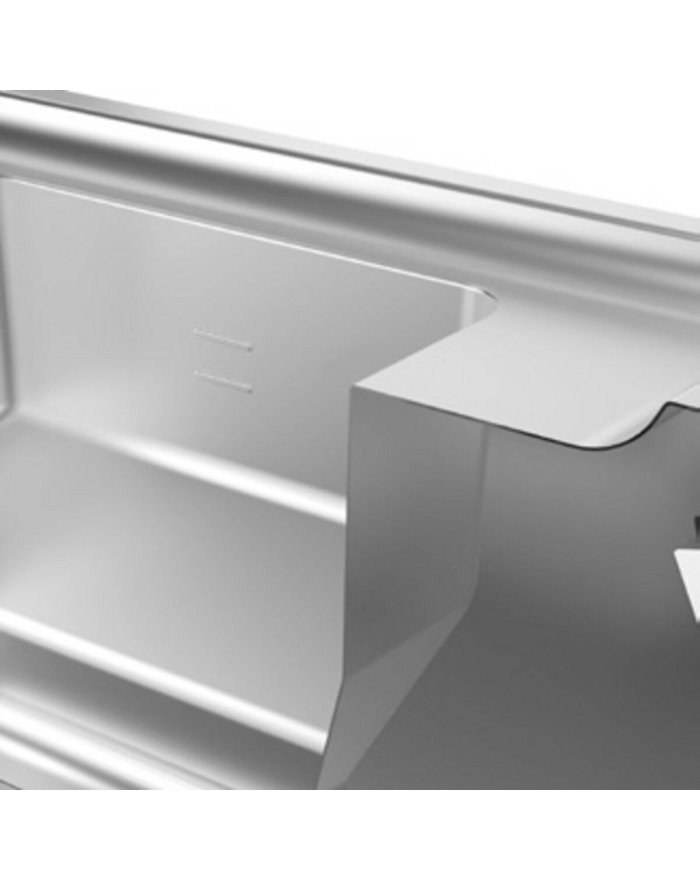

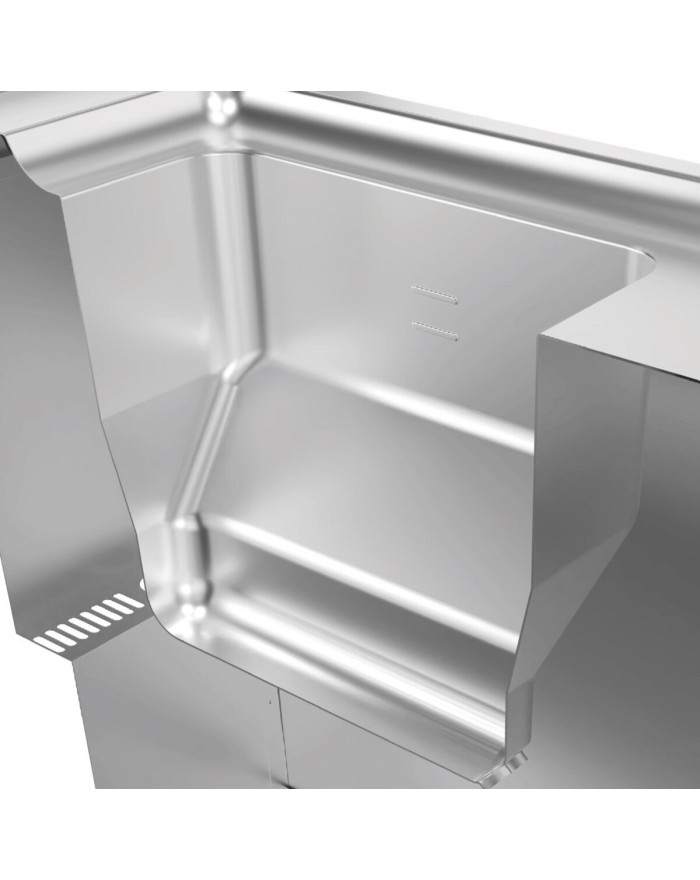

Moulded basin with flat top and large cold zone for easy cleaning.

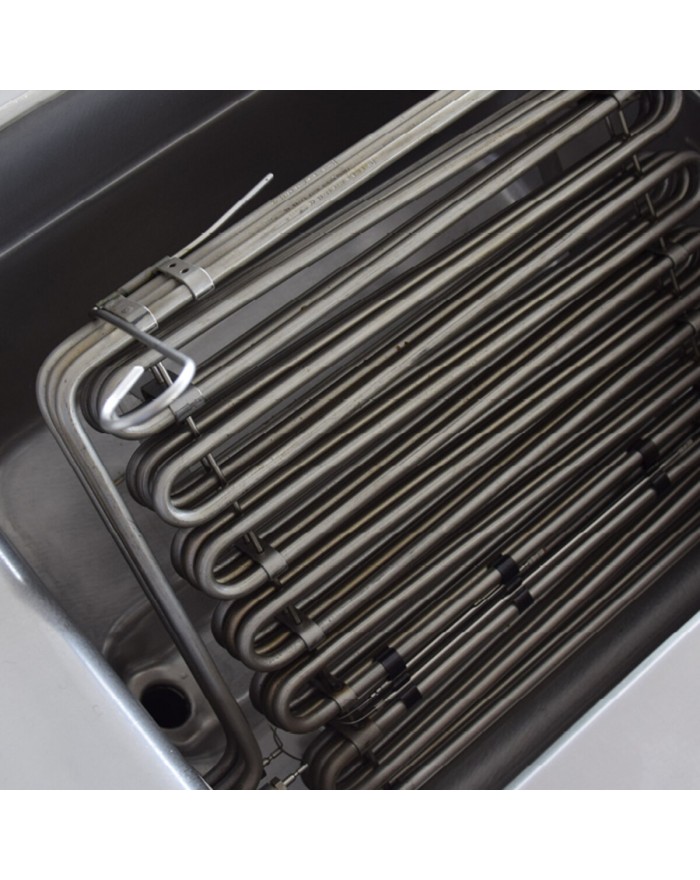

In the electric version, the heating element can be rotated by more than 90°.

Q90FRI/E822
CR1353809 - Standard Standard

Data sheet

Production site
BELLUNO
Electrical power
36,000Kw
380-415V 3N
Certified model
Q90FRI/E822
IP grade
IPX4
CE-certified
-
Capacità litri
22L
Production start year
2021
Cestelli
4 x QCF22/23P + Bottom Grid
Product type
STANDARD
Model
Q90FRI/E822
Company
0232
CODE
CR1353809
Commercial Line
QUEEN
Commercial code
Q90FRI/E822
Packaging width
1020
Material type
ZPF
Packaging height
1170
Definition
Q90FRI/E822 FRIGGITRICE EL.2V22+22LT M80
Width
800mm
Depth
900mm
Packaging length
820
Height
870mm
PROMO
RAPIDO
Volume
0.626m3
Alimentazione
ELETTRICA
Gross volume
0913
Net weight
101.2Kg
Frequency
50/60 HzHz
Gross weight
111.2Kg
Capacity
22 litri

Specific References

mpn
Q90FRI/E822
