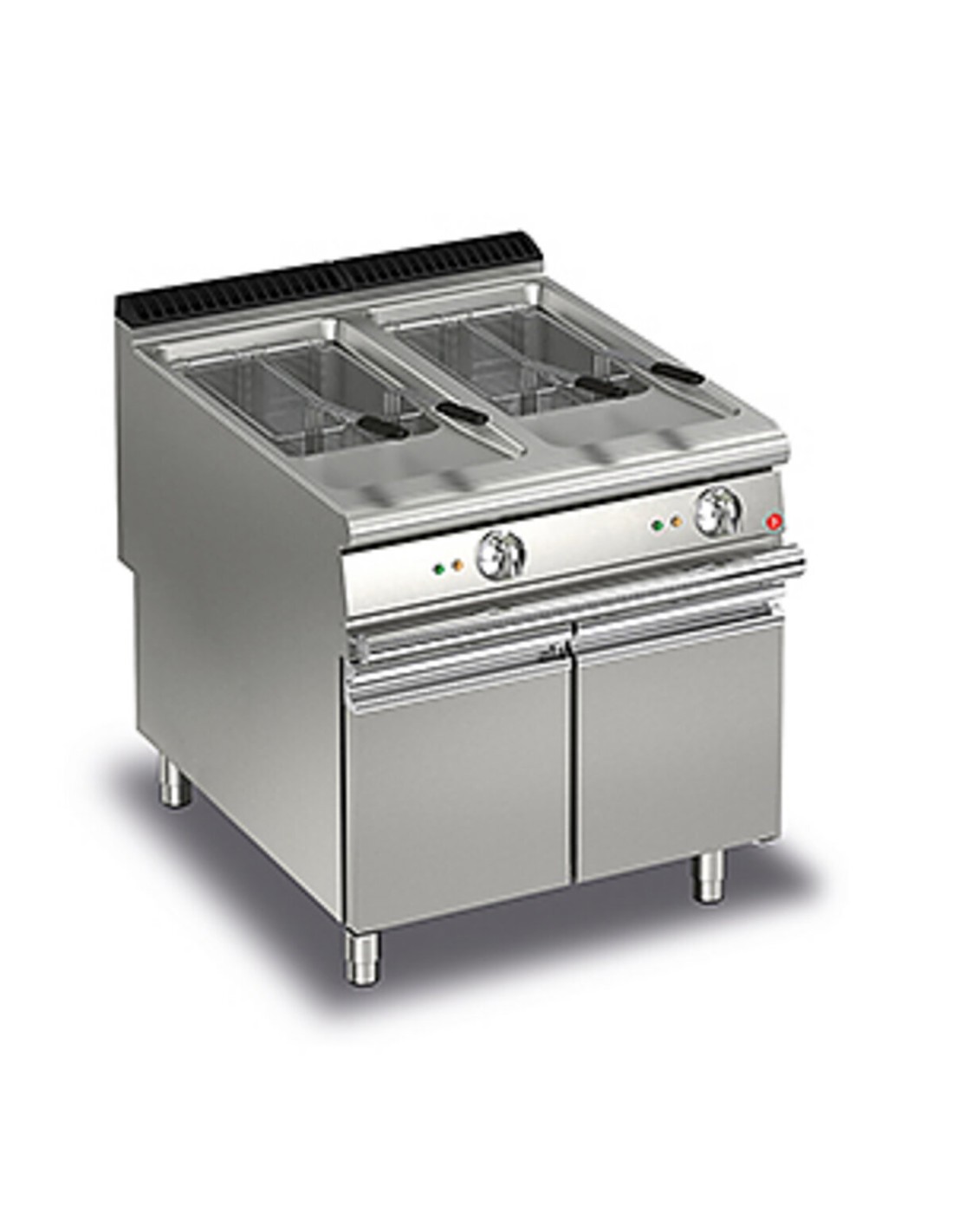

ELECTRIC FRYER 2 BASINS 22+22 L - WITH 4 BASKET KIT
Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating.
Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.
DWG-3D
Pictures
Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating.
Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.Stainless steel outer shells and feet.
Working table height adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
AISI 18/10 stainless steel tanks with cold zone and foam expansion zone.
Oil drain taps. Oil drip pans on request.
Safety thermostat (230°C) against excessive oil temperatures
Gas version:
Heating by stainless steel burner outside the tank (1-tank model with in-tank burner also available).
Oil temperature controlled by mechanical thermostat with adjustment from 100 to 185°C.
Electric version:

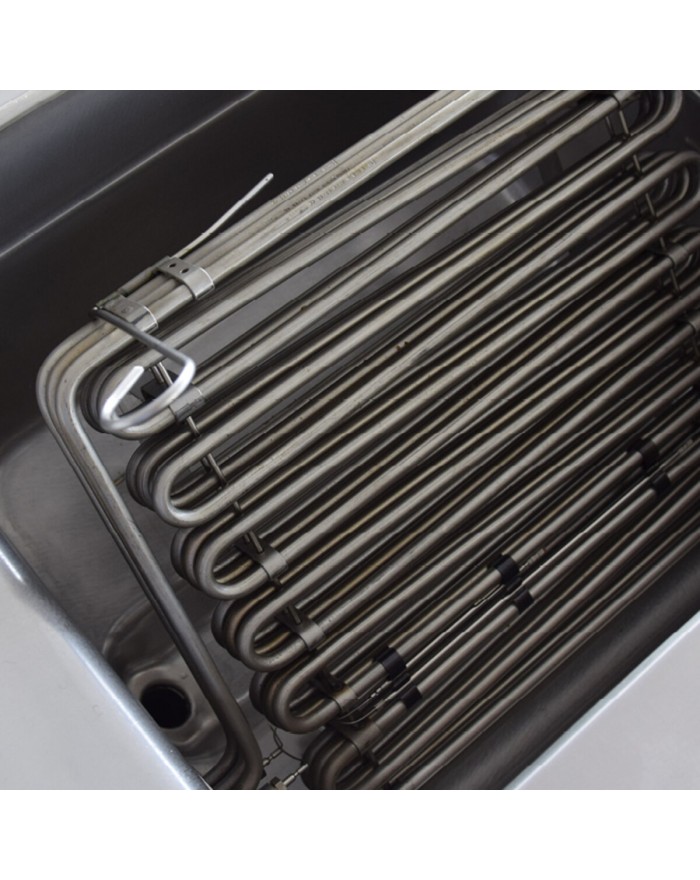

Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version.
Fully removable heating element in das 10 and 15-liter tank version.
The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.





In the gas version, the molded inner tank is clean with external burners for easy cleaning.

Tank depth and width increased to increase capacity.

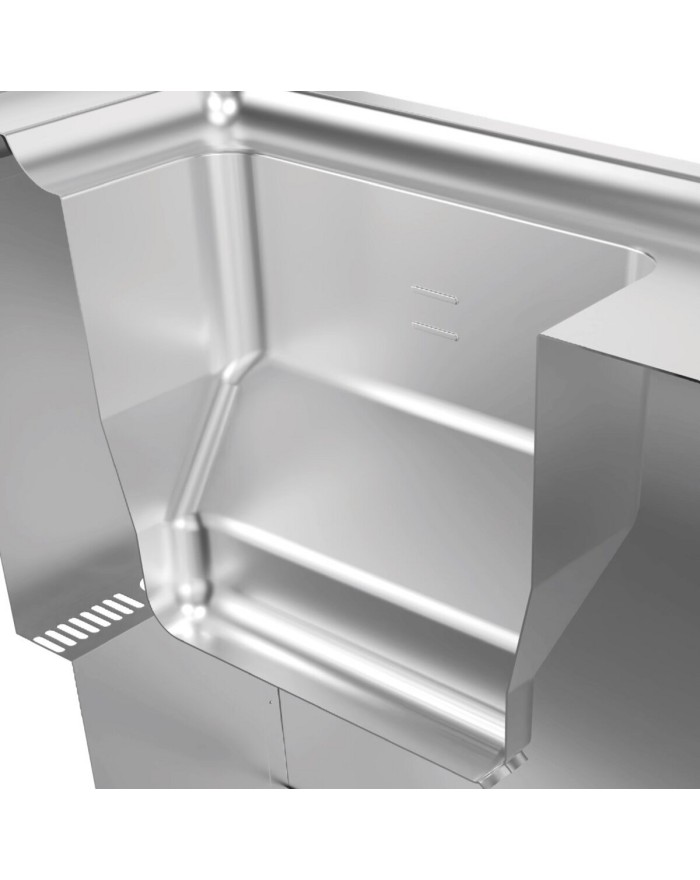

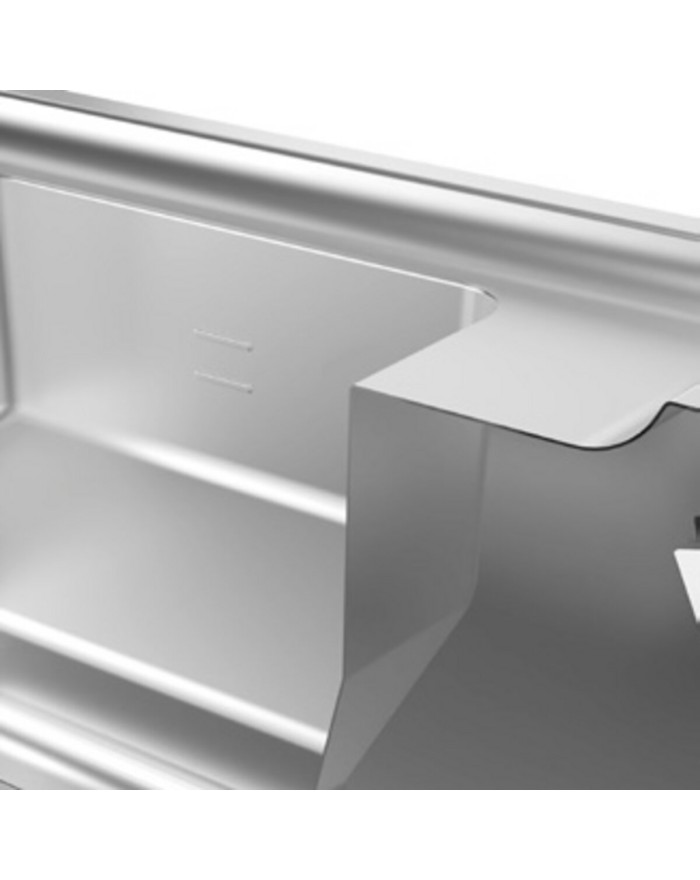

Moulded basin with flat top and large cold zone for easy cleaning.

In the electric version, the heating element can be rotated by more than 90°.
Q90FRI/E822
CR1353809 - Standard Standard
Data sheet
- Model
- Q90FRI/E822
- CODE
- CR1353809
- Commercial code
- Q90FRI/E822
- Material type
- ZPF
- Definition
- Q90FRI/E822 FRIGGITRICE EL.2V22+22LT M80
- Height
- 870mm
- Width
- 800mm
- Depth
- 900mm
- Volume
- 0.626m3
- Gross volume
- 0913
- Net weight
- 101.2Kg
- Gross weight
- 111.2Kg
- Production site
- BELLUNO
- Certified model
- Q90FRI/E822
- CE-certified
- -
- Production start year
- 2021
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 1020
- Packaging height
- 1170
- Packaging length
- 820
- Alimentazione
- ELETTRICA
- Electrical power
- 36,000Kw
380-415V 3N - Frequency
- 50/60 HzHz
- Capacity
- 22 litri
- IP grade
- IPX4
- Capacità litri
- 22L
- Cestelli
- 4 x QCF22/23P + Bottom Grid
Specific References
- mpn
- Q90FRI/E822
