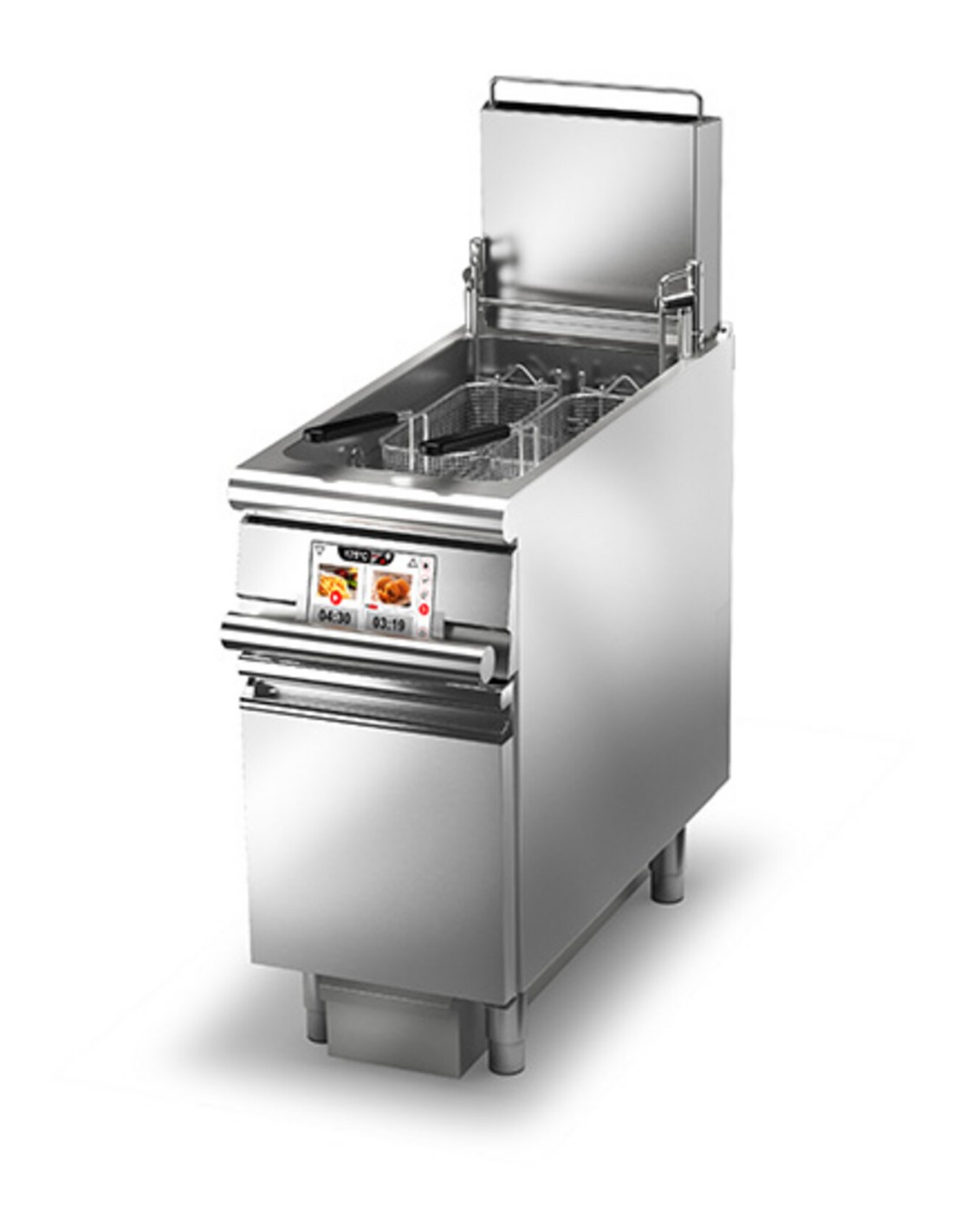

EVO GAS FRYER 1 BOWL with ELECTRONIC CONTROL 23 LT - With filtering + basket lifter

EVO Fryer: Advanced touch-screen system with 30 customizable programs, HACCP management, precise temperature control, and optimized energy consumption for high performance. Oil filtration up to 185°C, automated basket lifting, and water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.
Tipo Alimentazione
Promo
Print
EVO Fryer: Advanced touch-screen system with 30 customizable programs, HACCP management, precise temperature control, and optimized energy consumption for high performance. Oil filtration up to 185°C, automated basket lifting, and water jet protection (IPX5). Certified equipment compliant with Low Voltage Directive 2014/35/EU under the international CB scheme.Worktop, cooking tank and dashboard made of AISI 304 stainless steel. Molded cooking vessel with internal profile radiused. Equipped with a large front reservoir for oil and foam expansion. Large cold zone at the bottom ensures longer integrity of the oil used. Manual reset safety thermostat. Removable filter, baskets, lid and manifold for the drain tap provided. Height-adjustable stainless steel feet. IPX5 degree of protection. Gas version Stainless steel burner outside the tank. Oil temperature is regulated by thermostat. Electric version Armored heating element made of AISI 304 stainless steel, inside the pots rotatable by more than 90°. Control panel with high-resolution 7" touch screen display, simple and intuitive. Oil circulation and filtration Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time. Automatic choice from a selection of pre-set and tested recipes that can be stored by the user. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 connectivity-ready version. Model T4w

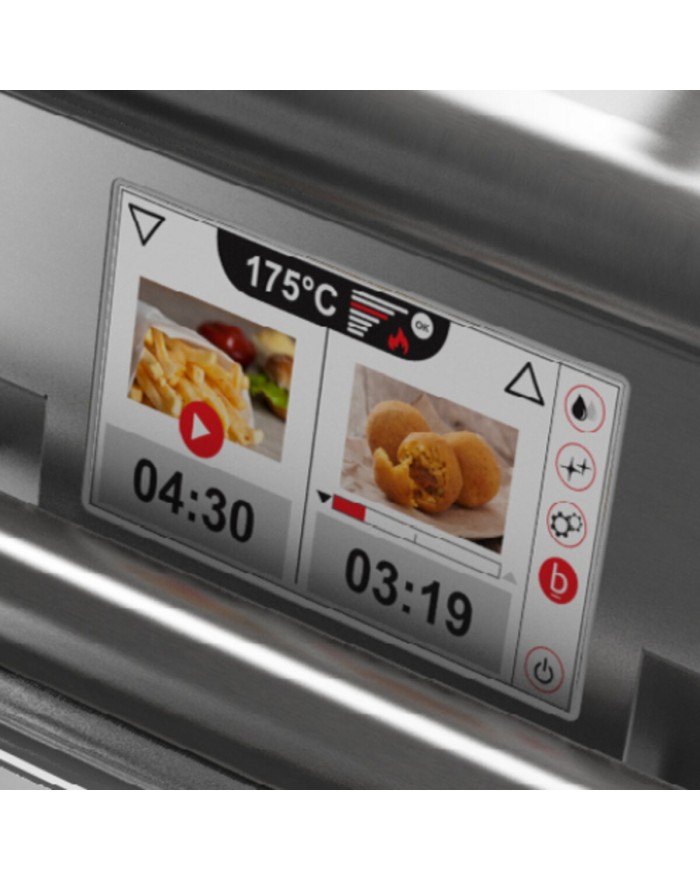

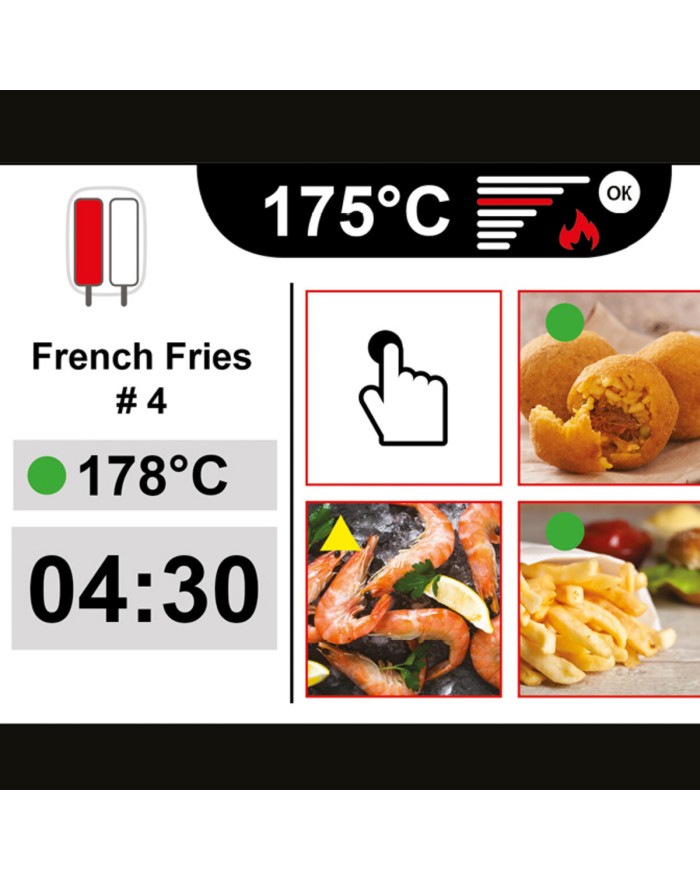

Control panel with high-resolution 7" touch screen display, simple and intuitive.



Oil circulation and filtration

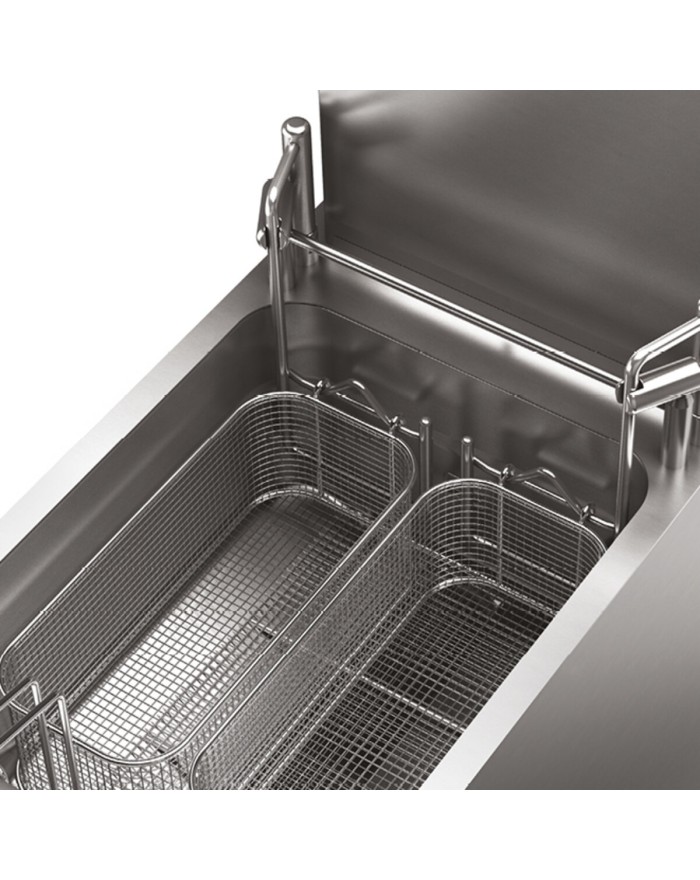

Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time.



Automatic choice from a selection of pre-set and tested recipes that can be stored by the user.

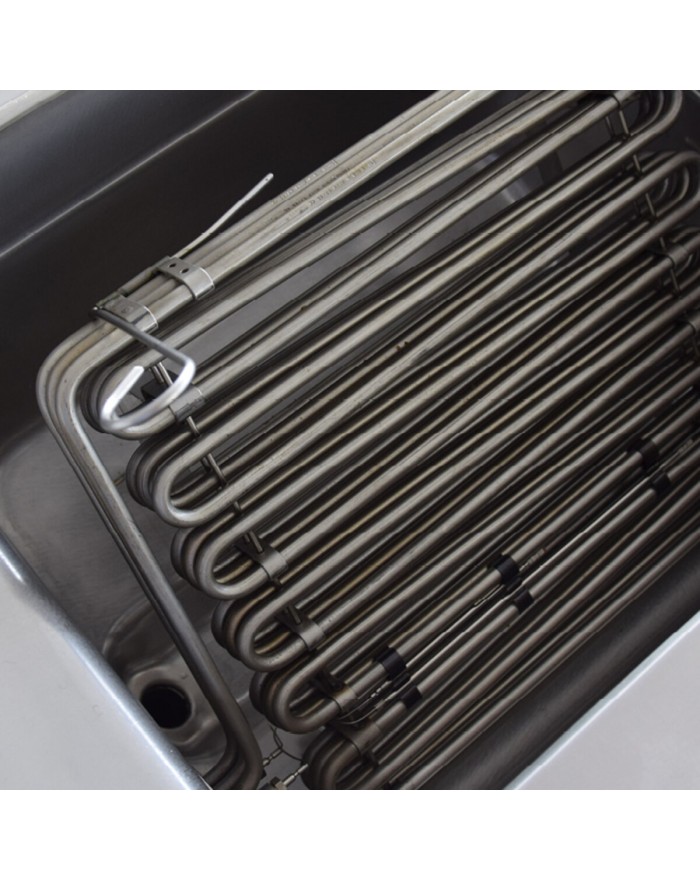

In the electric version with 22-liter tank, the heating element can be rotated more than 90° in the tank.

Q90FREV/G423FA
CR1209979 - Standard Standard

Data sheet

Packaging width
440
CODE
CR1209979
Packaging height
1410
Material type
ZPF
Width
400mm
Definition
Q90FREV/G423FA FRIGGITR.GAS 900 M40
Packaging length
1020
Depth
900mm
Alimentazione
MISTA
Height
870mm
Electrical power
0,100Kw
220-240V 1N
Volume
0.313m3
Frequency
50 HzHz
Gas power Kw
25,00Kw
Gas power (G25.3/25 mbar)
25,00Kw
Capacity
23
Gas power Kcal
21500Kcal
Gross volume
0633
IP grade
IPX5
Chimney type
A1-B21
Capacità litri
23L
Certified model
Q90FREV/G423FA
Basket dimensions
34x42x585
CE-certified
CE-0051DM5041/M1
Product type
STANDARD
Company
0232
II2H3+
ES/GB/GR/IE/IT/PT/SK
Commercial Line
QUEEN
Model
Q90FREV/G423FA

Specific References

mpn
Q90FREV/G423FA
