BLAST CHILLER CELL 1 GN1/1 TROLLEY – 1 DOOR – REMOTE CONDENSING UNIT OPTIONAL

7" touchscreen display with intuitive, easy-to-use software that allows you to quickly start work cycles, recall preset settings, and easily customize operating parameters with just a few touches.

Internal bumpers made of AISI 304 stainless steel, removable and easy to clean, for effective wall protection and maximum hygiene inside the chamber.

1-point core probe for precise control of internal temperature, ensuring maximum food safety in blast chilling and freezing cycles. Heated for easy extraction without damaging the product, it is integrated into the door for convenient and immediate use.

The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.

Master Max cabinets can be connected to the Polaris Cloud via the dedicated accessory, enabling real-time remote monitoring of equipment operation and usage from anywhere.

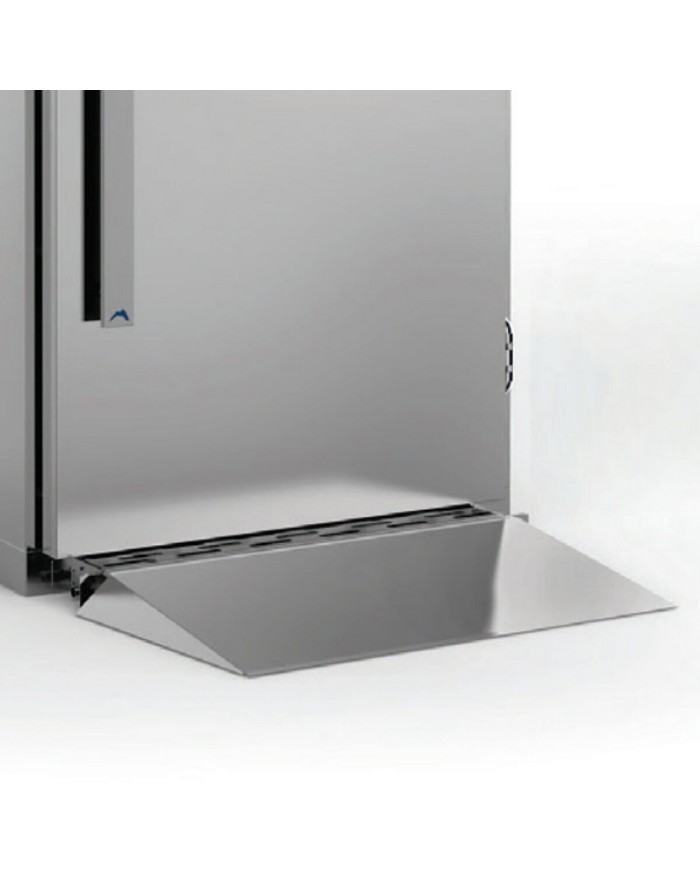

Optional access ramp, with liquid collection channel equipped with filter.

Multi-point magnetic door lock, designed to ensure an extremely stable and uniform connection between the door and the cold room structure. The locking system distributes force across multiple contact points, ensuring an optimal seal along the entire perimeter. This translates into greater thermal efficiency, reduced heat loss, and improved long-term reliability. The magnetic lock also facilitates everyday use, allowing for quick, smooth, and safe operation even under intense work conditions.
Data sheet
- Height
- 2100mm
- Volume
- 3.4125m3
- Net weight
- 450Kg
- Gross weight
- 570Kg
- Width
- 1300mm
- Electrical power
- 380-420/3Ph+N/50hz
6650WKw - Capacity
- 1 carrello GN1/1 - EN1
- Gas/refrigerant type
- R452A
- Cell dimensions
- 740x910x1820
- Cooling power
- 12610W
- INSULATION THICKNESS
- 80mm
- Model
- BGC101
- CODE
- BGC101
- Depth
- 1250mm
Specific References
- mpn
- BGC101
