BLAST CHILLER FOR TROLLEY GN 2/1 - AIR CONDENSING UNIT

Data Sheet

BKC100C_pl.pdf

DWG-3D

Pictures


Tipo Alimentazione

Promo

Categories: Home , COLD , BLAST CHILLERS , SPEEDY RIME FOR TROLLEY

Tags:

builtin condensingunit New range of compact trolley blast chillers with integrated motor on board, to meet all the space-saving needs of laboratories and professional kitchens. The SPEEDY FROST Trolley blast chiller represents a versatile solution that combines the needs of chilling and freezing of semi-industrial quantities of food with a structure that can be easily integrated into your production area. plus version T° Range +10° - 40° Trolley blast chiller - SPEEDY FROST MAIN FEATURES Roll In blast chiller with motor on board Functions: Blast Chilling, Blast Freezing Full Touch 7-inch Display IOT 4.0 connectivity Heated probe with 4 reading points COMPACT: Trolleys: 1 x GN 1/1 or 1 x EN1; 1 x GN 2/1 or 1 x EN2 Exterior finish: Scotch-Brite satin stainless steel for a sleek, easy-to-clean design. Evaporating coil: copper-aluminum with anti-corrosion painting, crankcase can be opened for quick maintenance. Highly ventilated evaporator: ensures uniformity and maximum efficiency in abatement cycles. Anti-condensation resistance: integrated on the door to prevent moisture build-up. Ergonomic handle: vertical with magnetic closure for secure opening. Protection and safety: external bumpers, R290 refrigerant, AISI 304 stainless steel internal components. Ease of cleaning: suspended evaporator for easy flushing and water drainage. Guaranteed performance: cooling capacity optimized for -25°C evaporation and +45°C condensation. USB port for firmware updates and HACCP data downloads. The 7-inch touch display, is positioned on the door of the blast chiller so that it is always at your fingertips and your eyes. With its clear interface and intuitive symbols, it allows immediate interaction with all machine functions. Readability is optimal even in intense work environments, ensuring quick and easy control of settings. Internal bumpers made of AISI 304 stainless steel, removable and easy to clean, for effective wall protection and maximum hygiene inside the chamber. Cell door with increased thickness of 100 mm and multi-point magnetic closure for perfect locking. AISI 304 steel cell floor with 5WL non-slip finish, made of multilayer structure that ensures high strength and full suitability for heavy load transit. 4 evaporators positioned in the cell, with large 30 cm diameter fans, for optimal cooling of the product contained in the carts at all levels. Copper and aluminum evaporating unit, protected with cataphoresis treatment, equipped with opening casing to facilitate maintenance operations. Positive chilling cycles +90 / +3 °C are programmable in Hard and Soft modes, with probe or time control, to ensure maximum flexibility and precision in product handling. The +90 / -18 °C freezing cycles are programmable in Hard and Soft modes, with probe or time control, to ensure maximum flexibility and precision in product handling. Ability to maintain temperature at the end of blast chilling or freezing cycle.

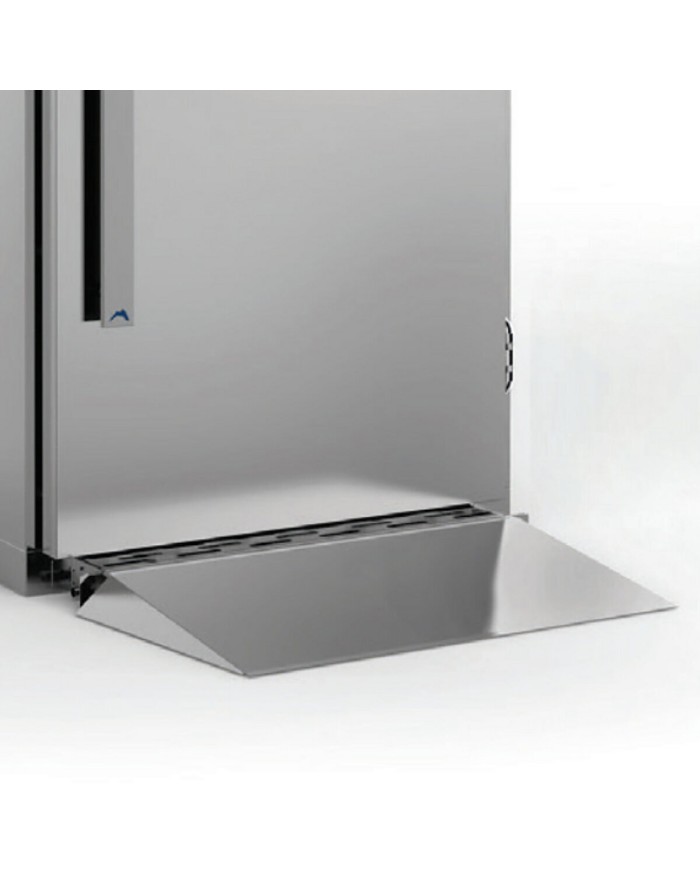

Reinforced bottom with rounded corners for easy cleaning. Reinforced structure to accommodate large-sized and high-capacity trolleys.

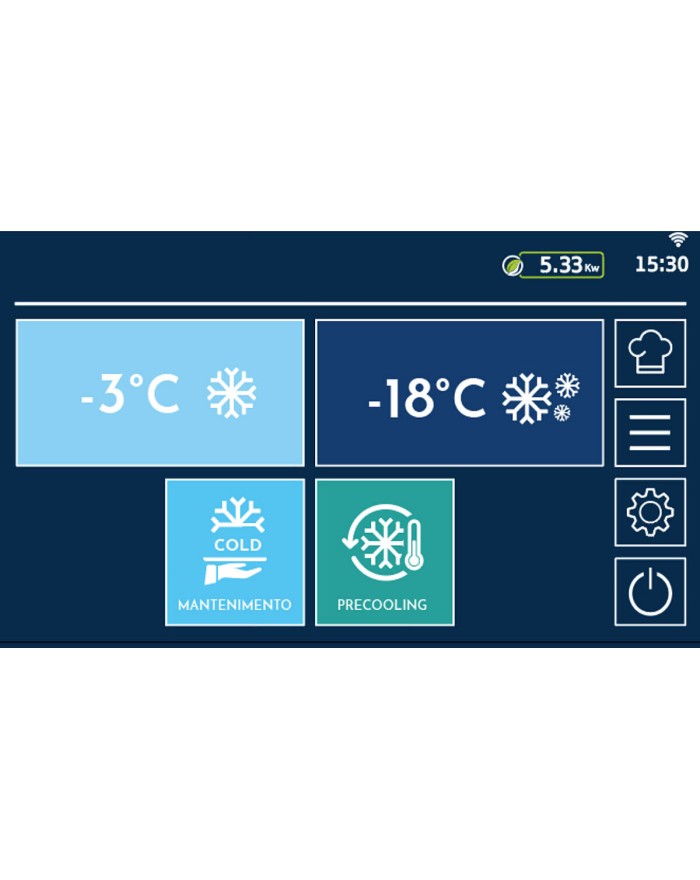

7" touchscreen display with intuitive, easy-to-use software that allows you to quickly start work cycles, recall preset settings, and easily customize operating parameters with just a few touches.

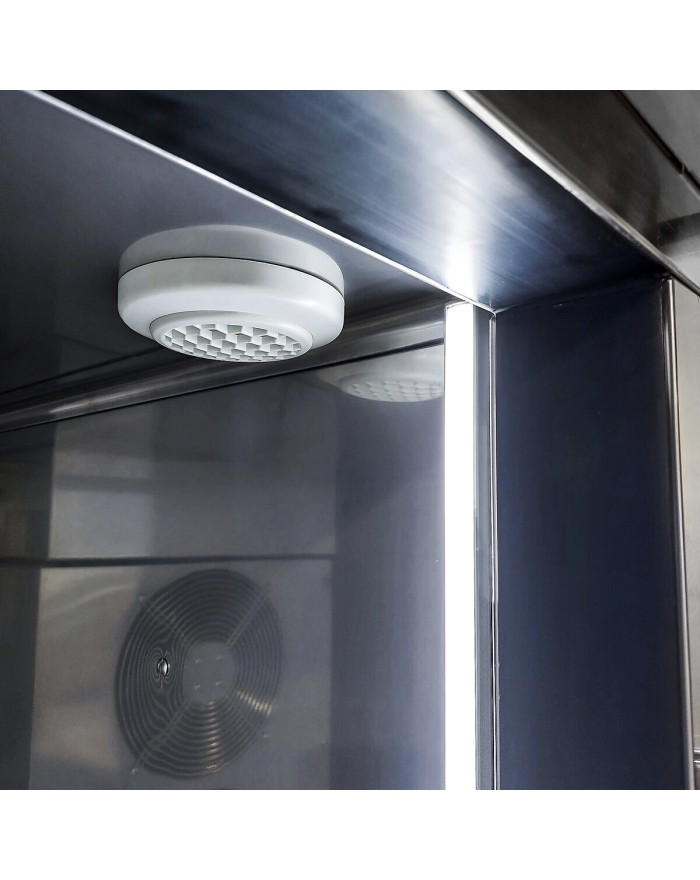

The chamber is equipped as standard with a pressure-balancing valve, a key component for maintaining internal pressure equilibrium during rapid cooling phases, thereby preventing the risk of negative pressure that could interfere with door opening and compromise the seals’ lifespan.

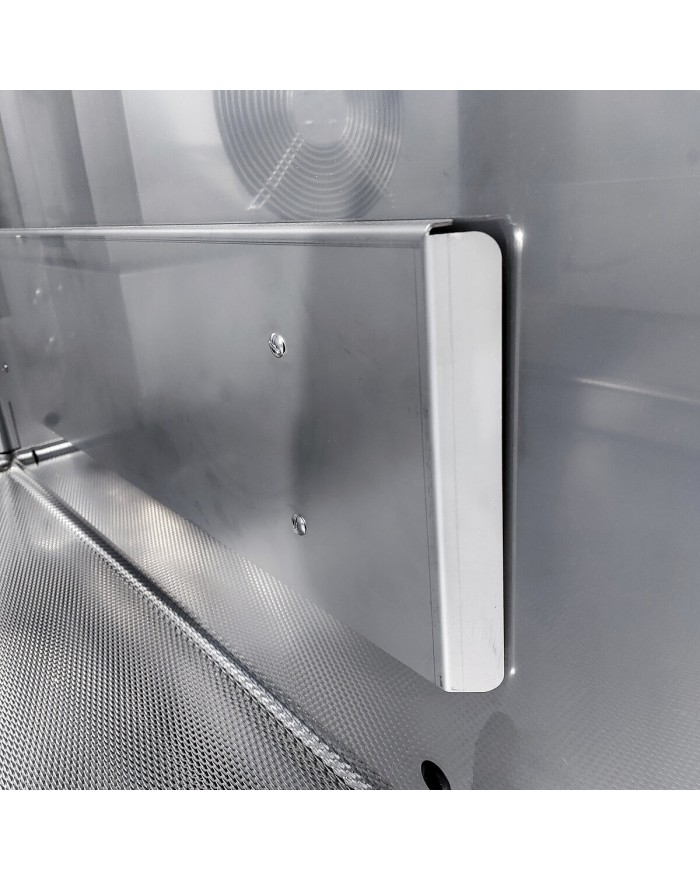

Internal bumpers made of AISI 304 stainless steel, removable and easy to clean, for effective wall protection and maximum hygiene inside the chamber.

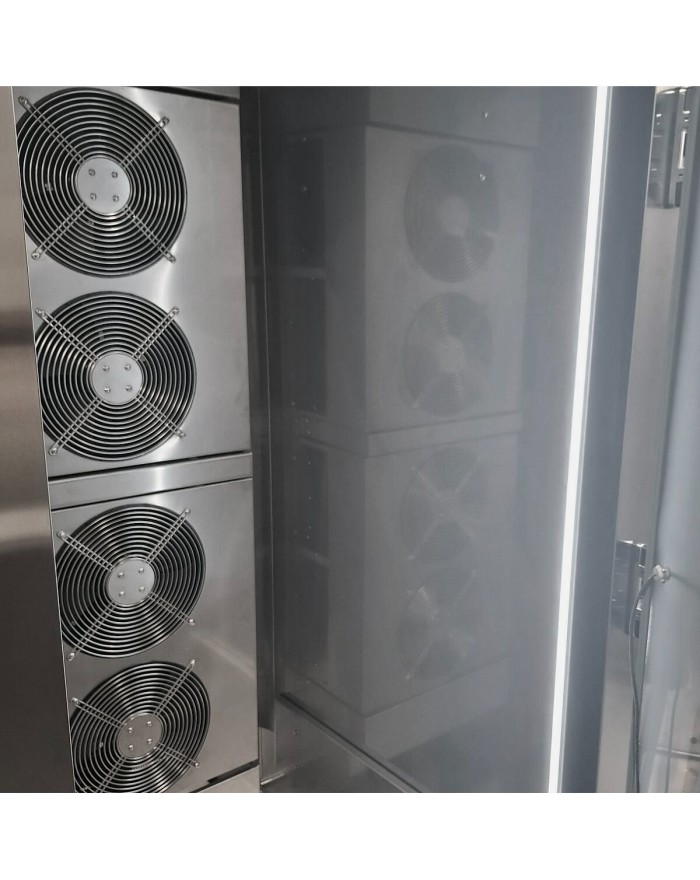

Four evaporators installed inside the cell, each equipped with large 30-cm fans, ensure uniform cold distribution and optimal cooling of the products loaded on the trolleys at every level.

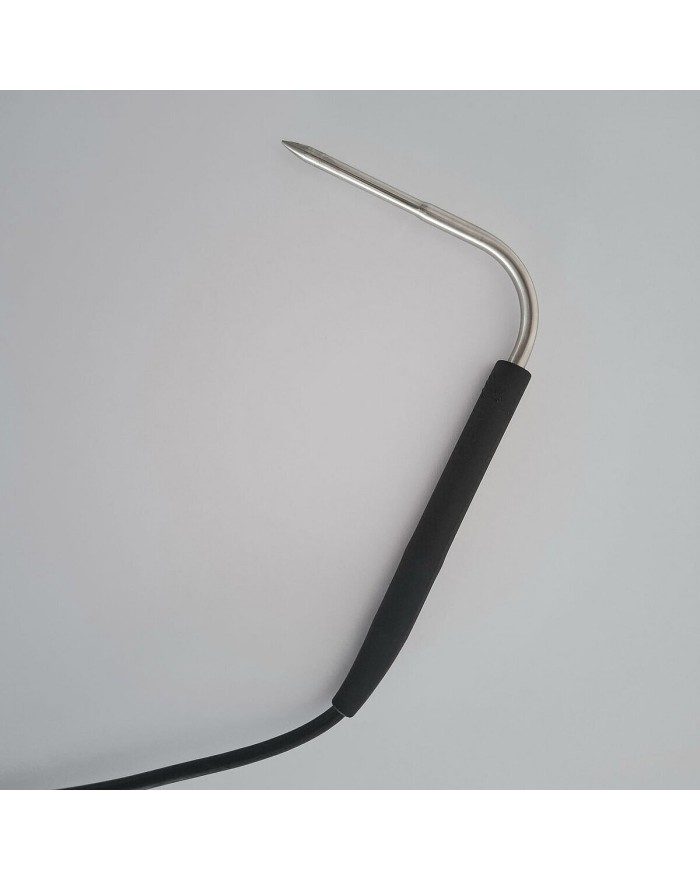

1-point core probe for precise control of internal temperature, ensuring maximum food safety in blast chilling and freezing cycles. Heated for easy extraction without damaging the product, it is integrated into the door for convenient and immediate use.

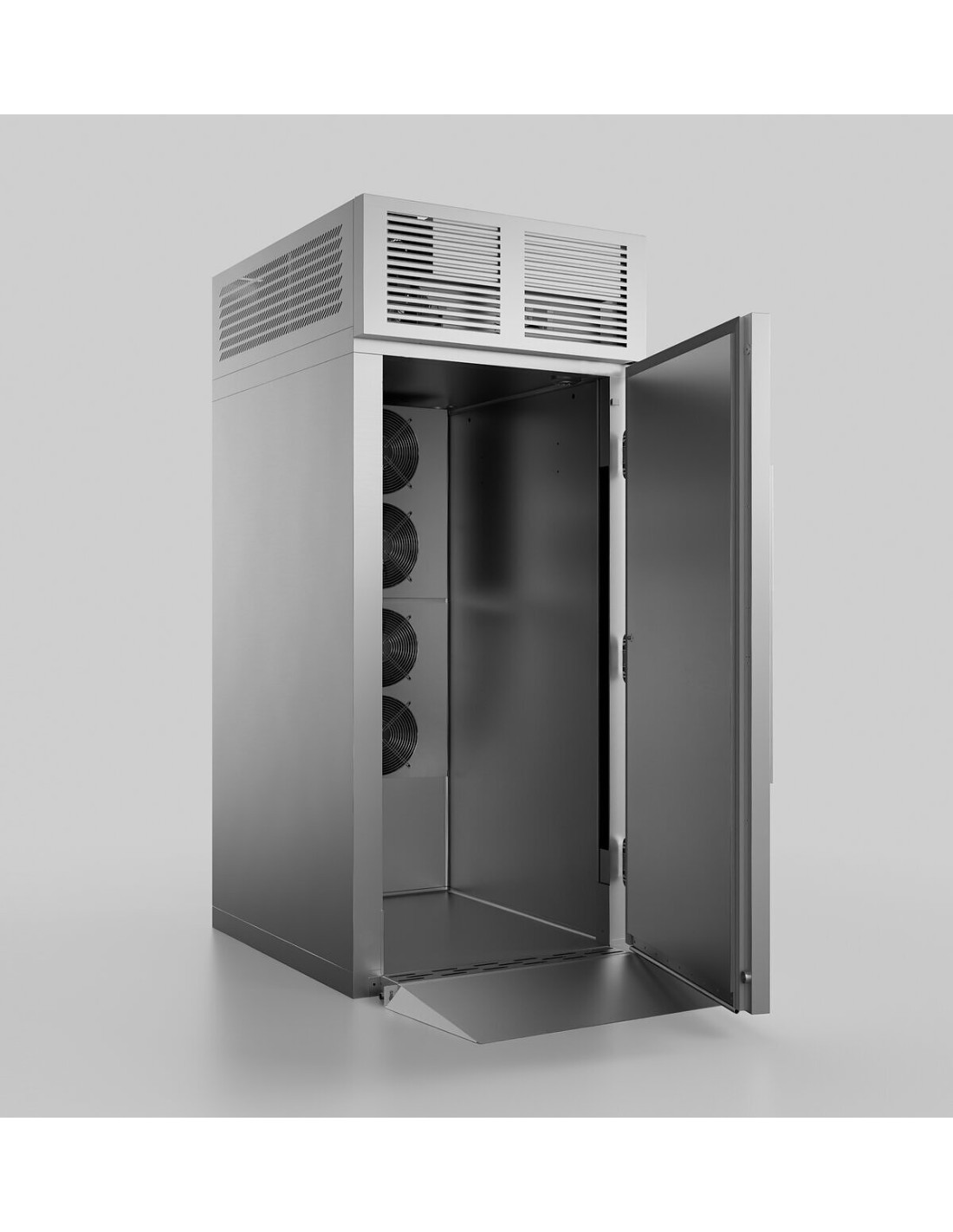

Compatible with the trolleys of the main ovens on the market, thanks to a useful internal compartment of 843×908×1919 mm, capable of accommodating trolleys for GN 1/1 and GN 2/1 trays for maximum operational versatility.

Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.

The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.

Master Max cabinets can be connected to the Polaris Cloud via the dedicated accessory, enabling real-time remote monitoring of equipment operation and usage from anywhere.

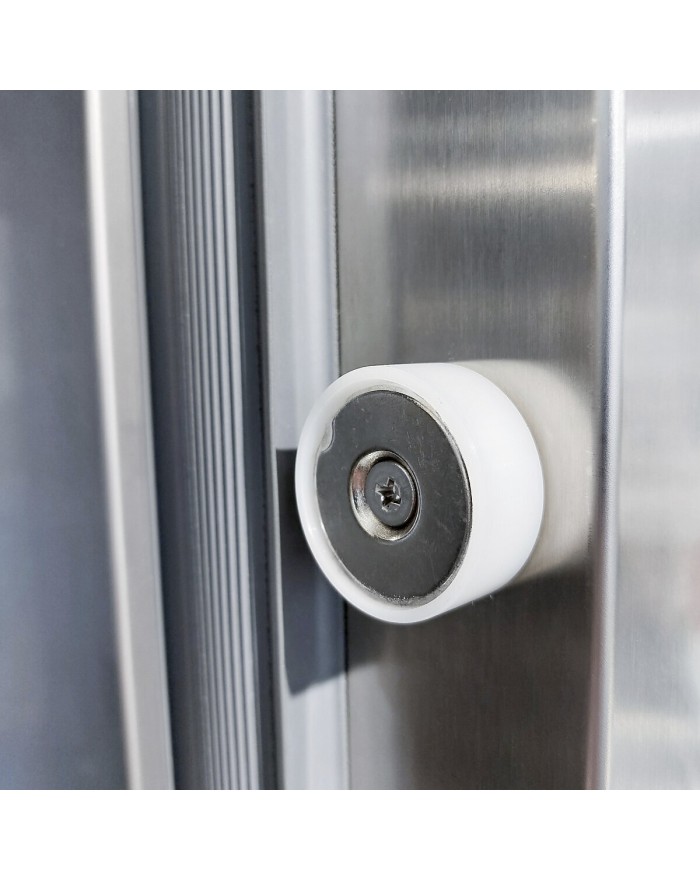

Multi-point magnetic door lock, designed to ensure an extremely stable and uniform connection between the door and the cold room structure. The locking system distributes force across multiple contact points, ensuring an optimal seal along the entire perimeter. This translates into greater thermal efficiency, reduced heat loss, and improved long-term reliability. The magnetic lock also facilitates everyday use, allowing for quick, smooth, and safe operation even under intense work conditions.
