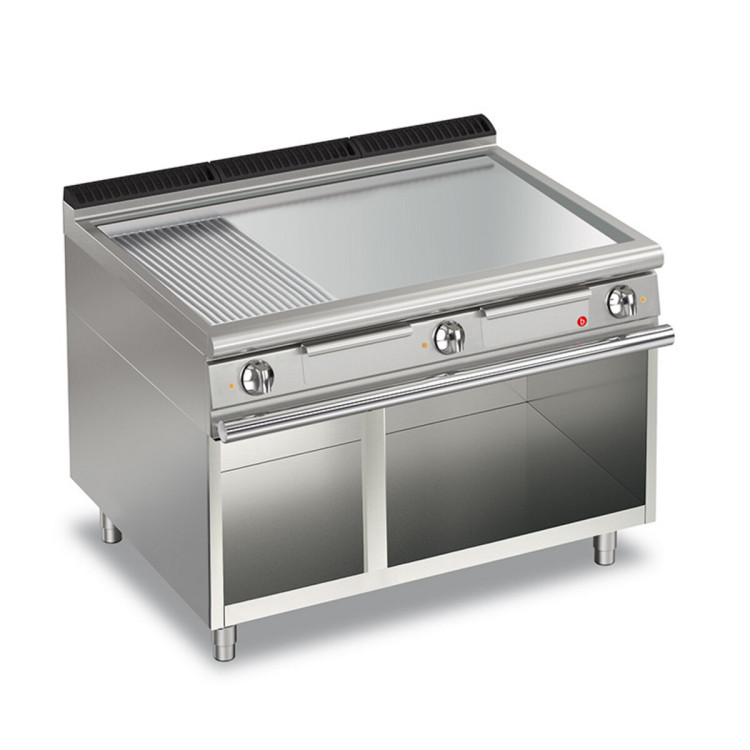

ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT
  • ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT
  • ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT
  • ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT
  • ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT

ELECTRIC FRY TOP 2/3 SMOOTH 1/3 RIBBED CHROME PLATE ON OPEN COMPARTMENT

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Tops with 2 mm thickness Plates inclined by 10mm towards the front of the machine. Large grease collection drawer. Tubular burner with self-stabilising flame with great uniformity of heat distribution. Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Chrome-plated plate. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

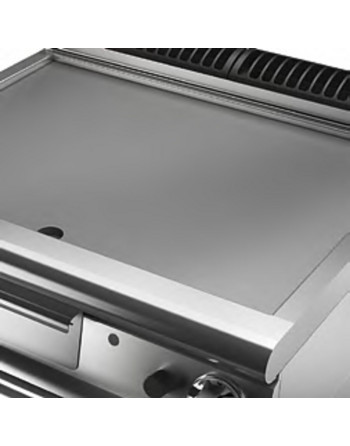

A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.



Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

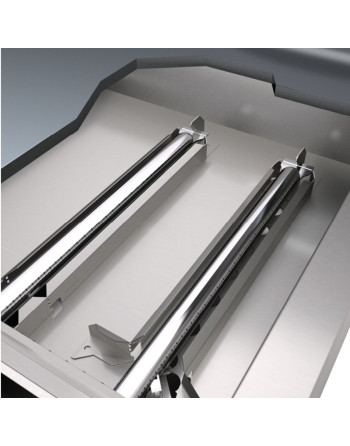

Even heat distribution thanks to several burners under the hotplate.

CR1014529 - Standard Standard

Data sheet

Model
Q70FTV/E1225
CODE
CR1014529
Commercial code
Q70FTV/E1225
Material type
ZPF
Definition
Q70FTV/E1225 FTE 1/3 RIG. CROM. M120 A/G
Depth
700mm
Height
870mm
Volume
0.731m3
Gross volume
1250
Net weight
143Kg
Gross weight
153.6Kg
Production site
BELLUNO
Product variant
PIASTRA LISCIA/RIGATA CROMATA
Certified model
Q70FTV/E1225
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1260
Packaging height
1170
Width
1200mm
Packaging length
850
Alimentazione
ELETTRICA
Tipo piastra
1/3RIBBED
Electrical power
16,200Kw
Frequency
50-60 HzHz
Electrical power
380-415V 3N
IP grade
IPX4
Materiale Piastra
CHROME
Controllo
RUBINET

Specific References

MPN
Q70FTV/E1225
