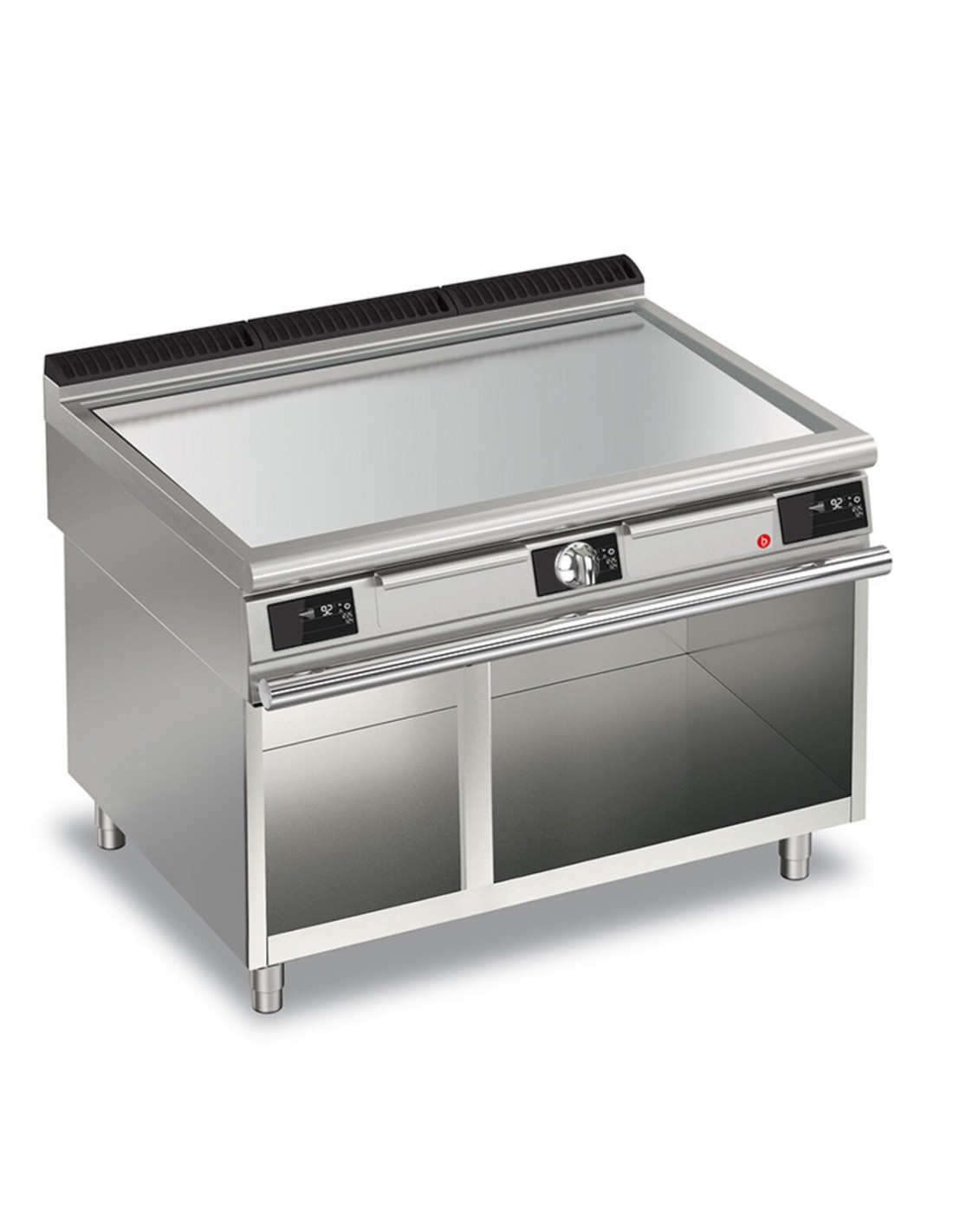

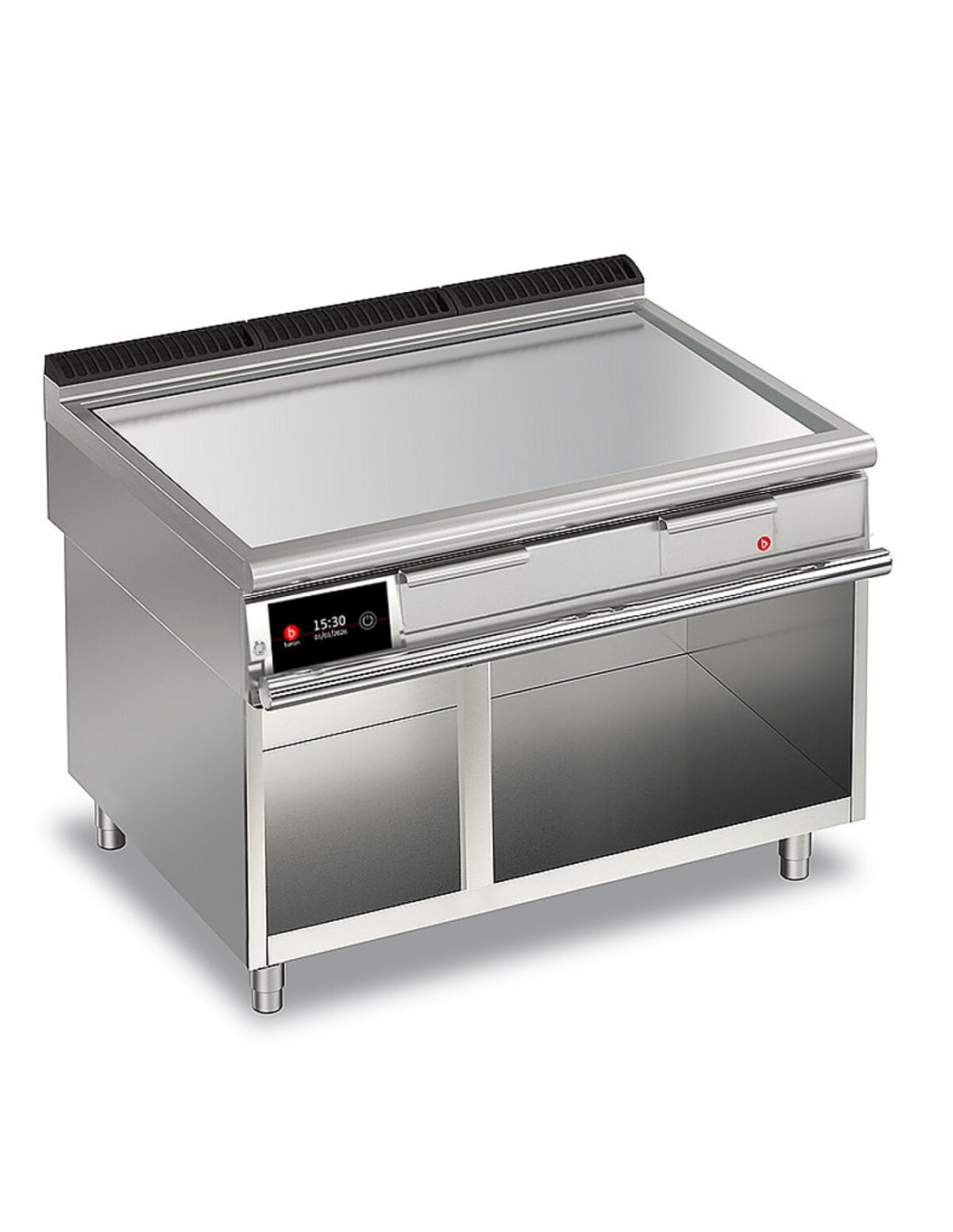

ELECTRIC FRY TOP SMOOTH PLATE AISI 430 ON OPEN COMPARTMENT

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Large grease collecting drawer. High-power armored heating elements made of steels stainless steel. Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Thermostatic safety control adjustable from 110 to 280°C for all versions. Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. AISI430 plate. Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 ready version.

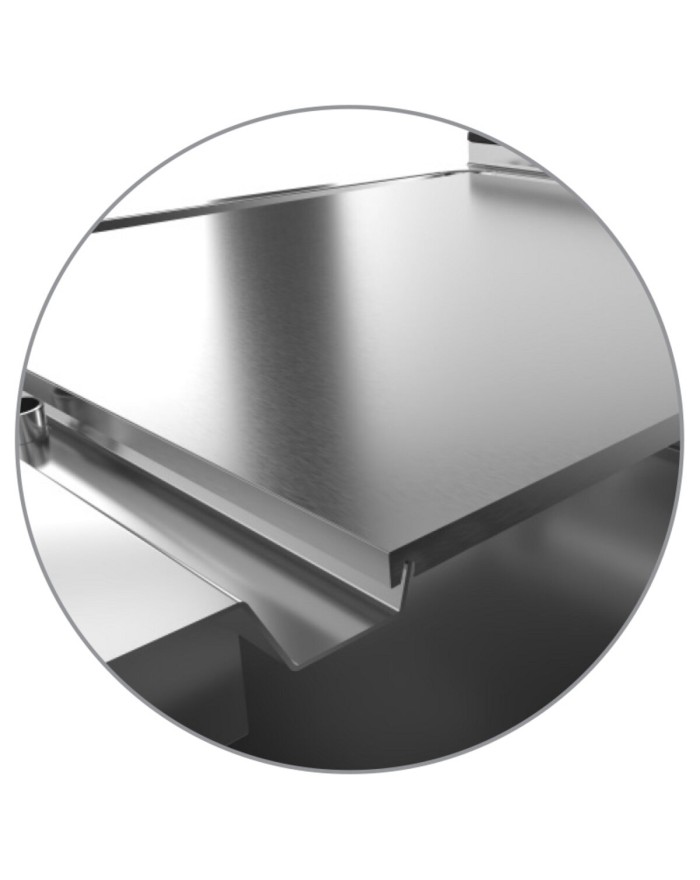

Grooved plate design ensures cleanliness right to the end of the plate



Non-welded plate to speed up maintenance and possible replacement in utilities.

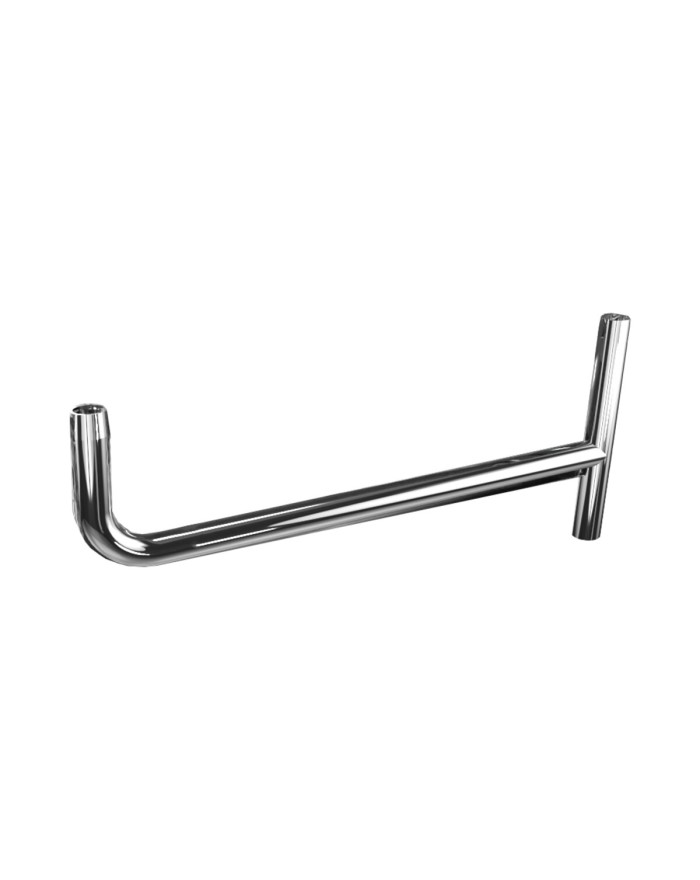

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

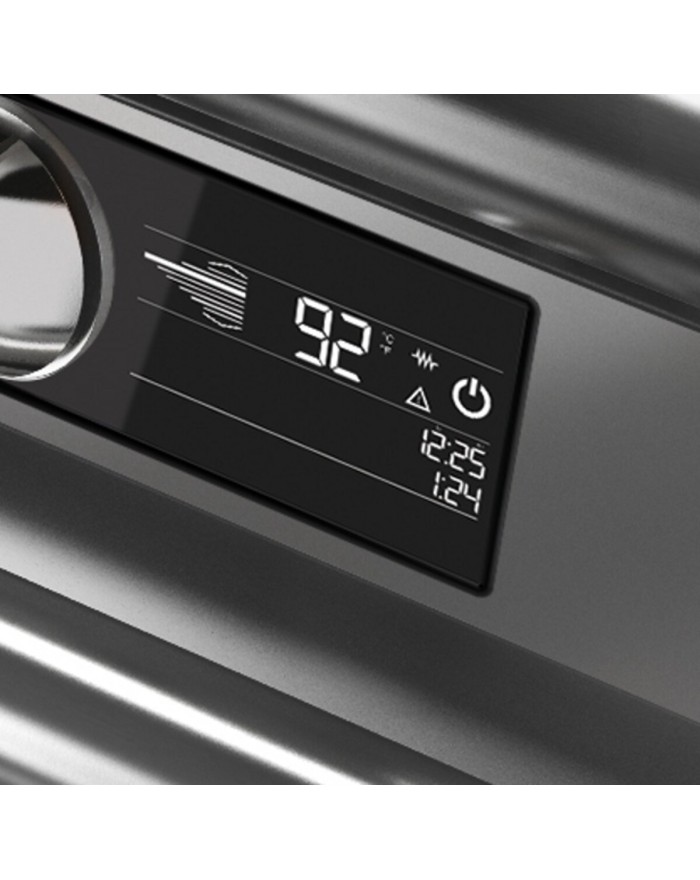

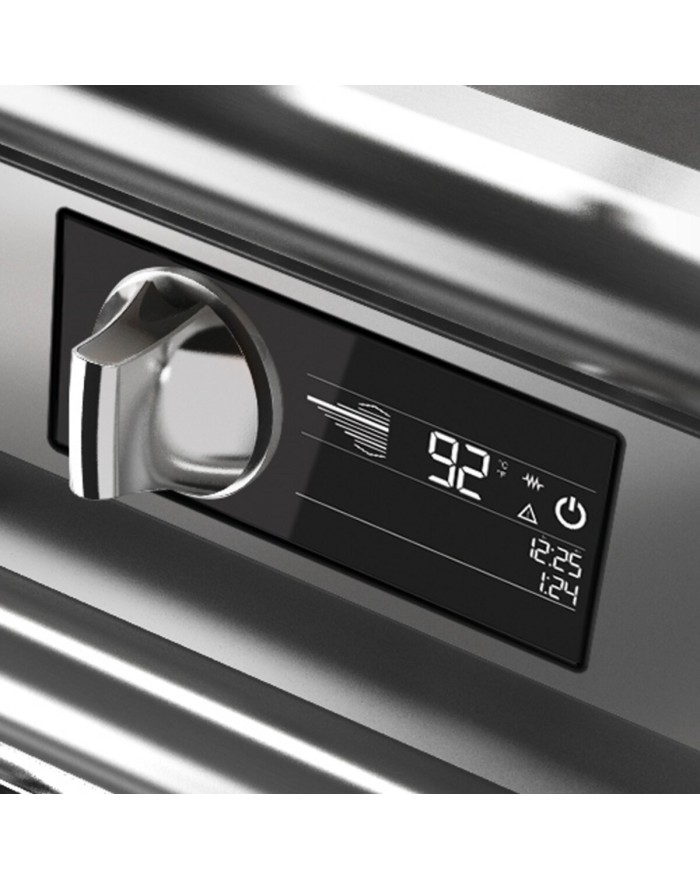

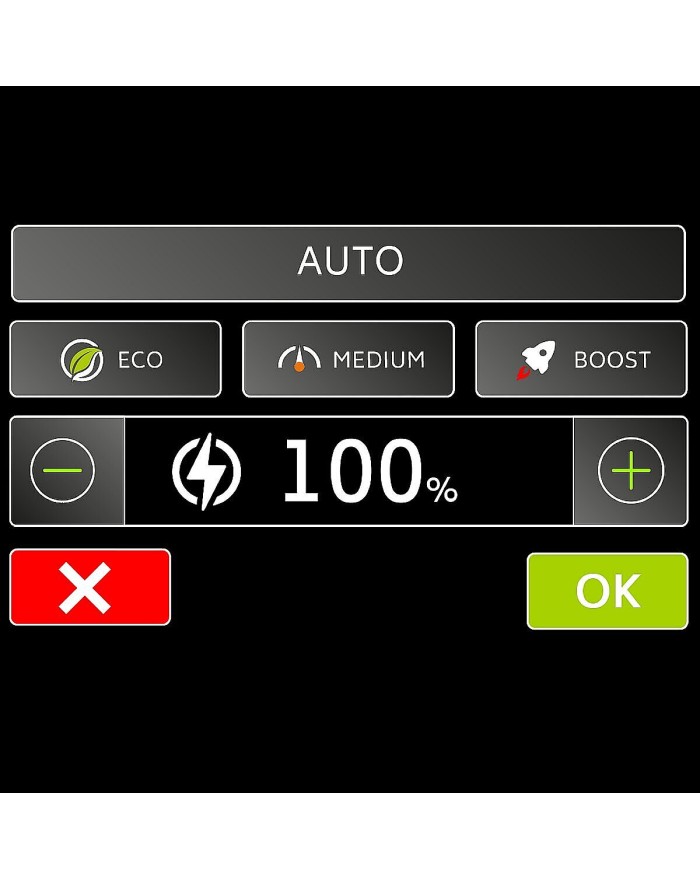

Power level control via touch screen and adjustment with ergonomic knob

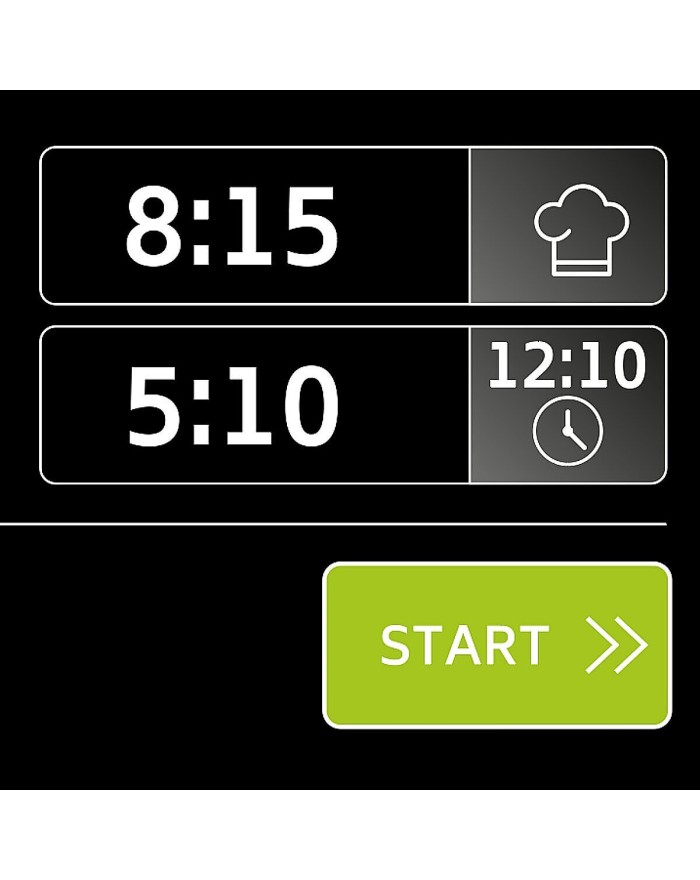

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

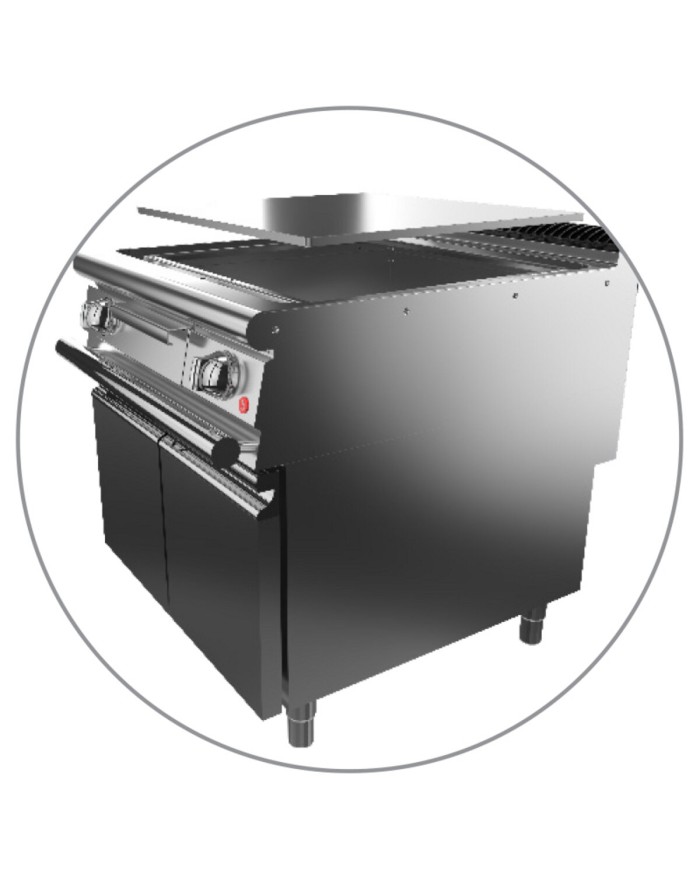

Thermal cutting that facilitates the user and adjacent machinery.



Water dispenser kit available as an accessory

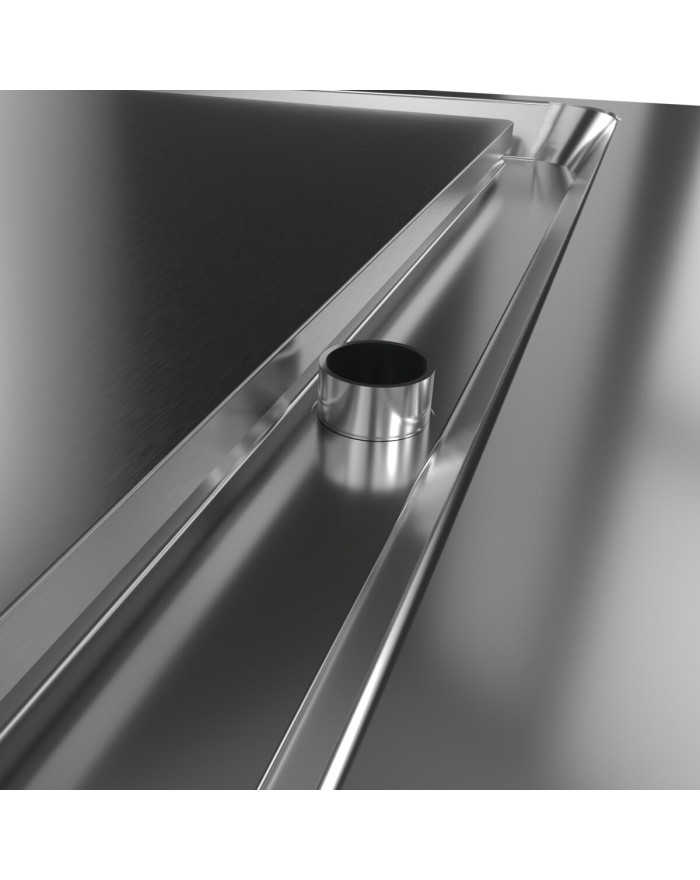

Stainless steel overflow plug provided as standard for gutter flooding management.



Plate not welded to the machine table with optimization of structural points subjected to thermal stress.

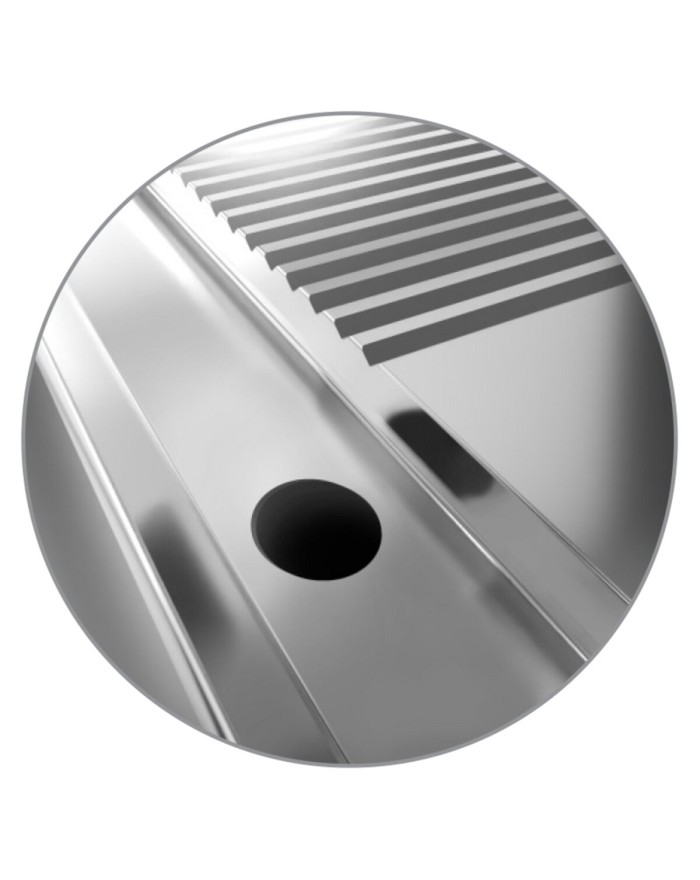

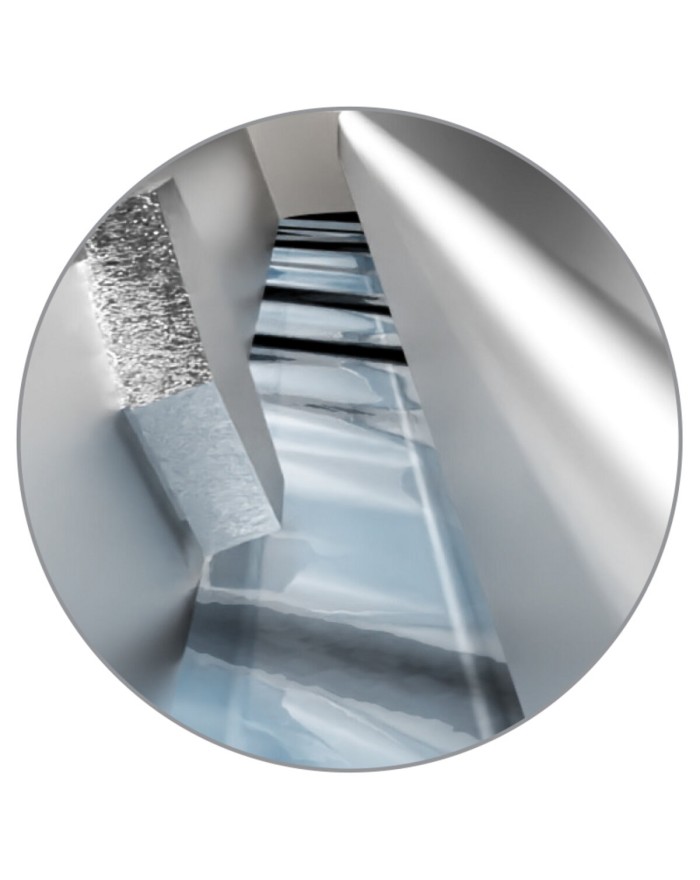

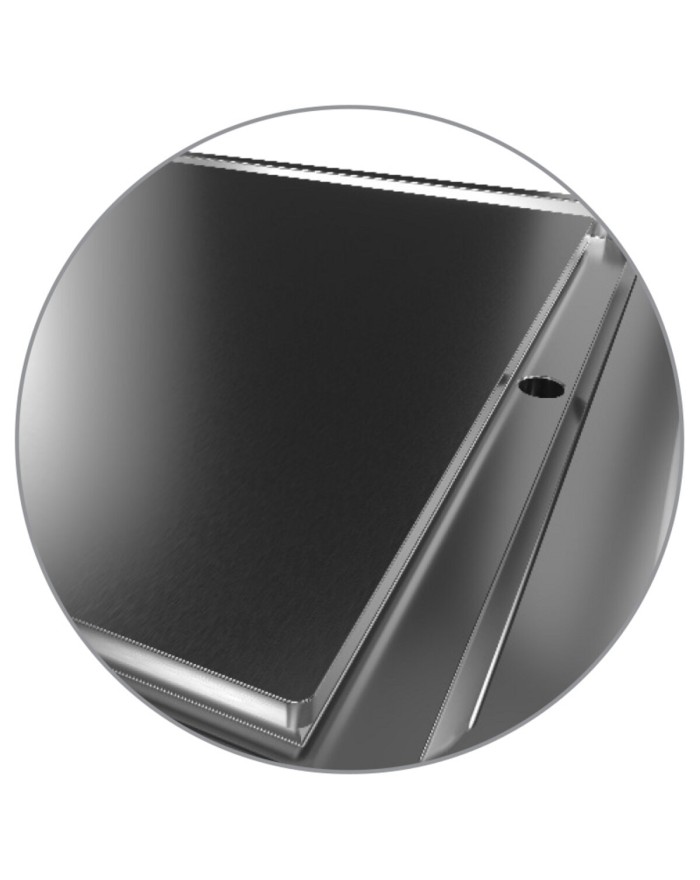

Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.

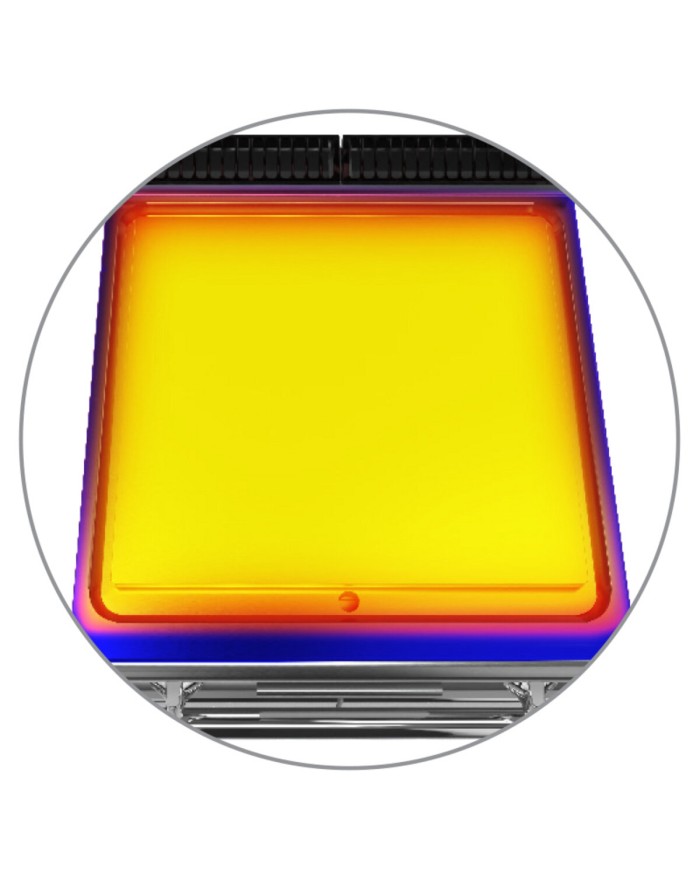

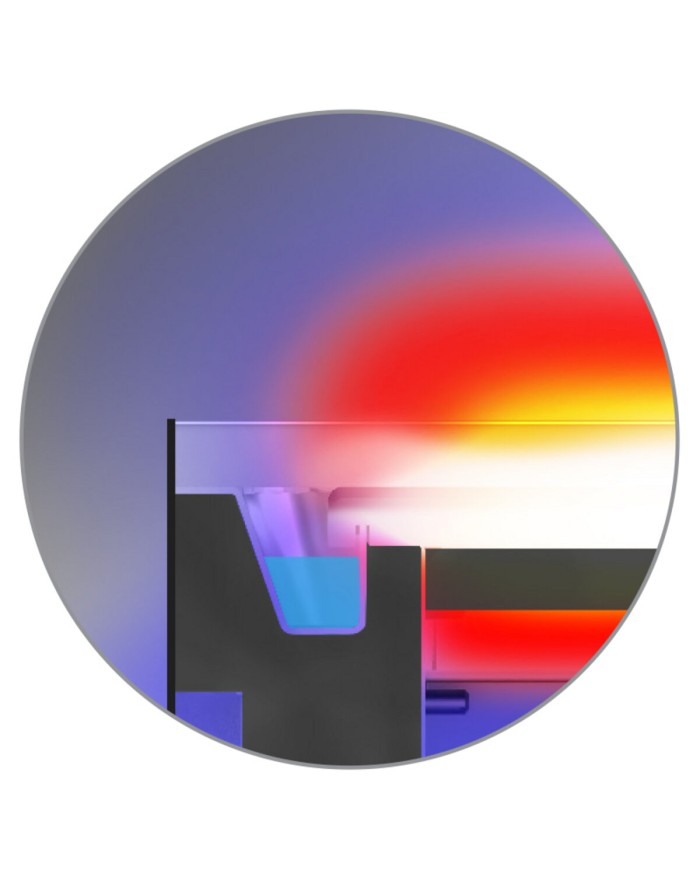

Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen.

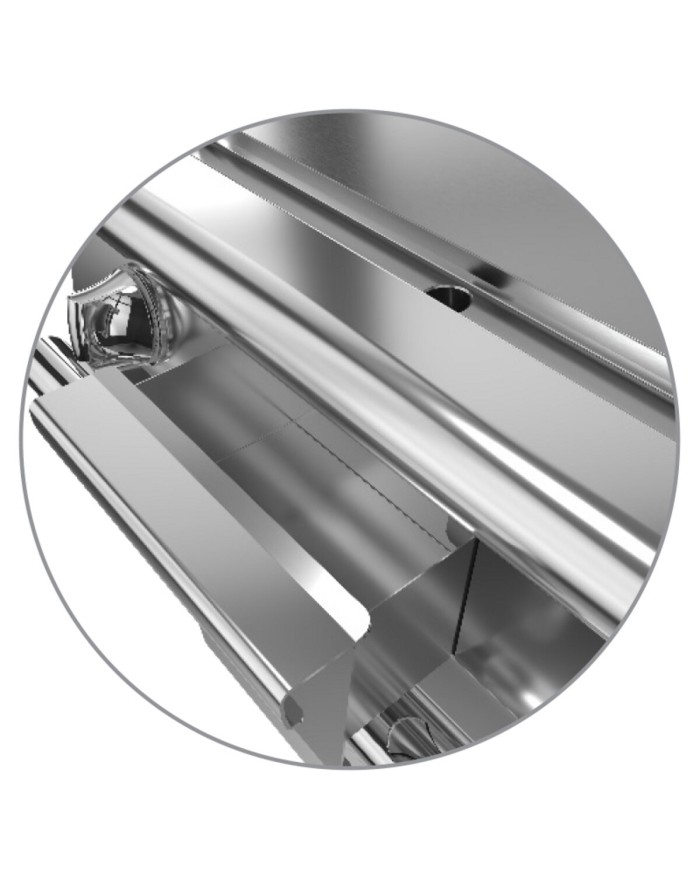

Capacious grease collection drawer with capacity of the entire volume of the perimeter channel.

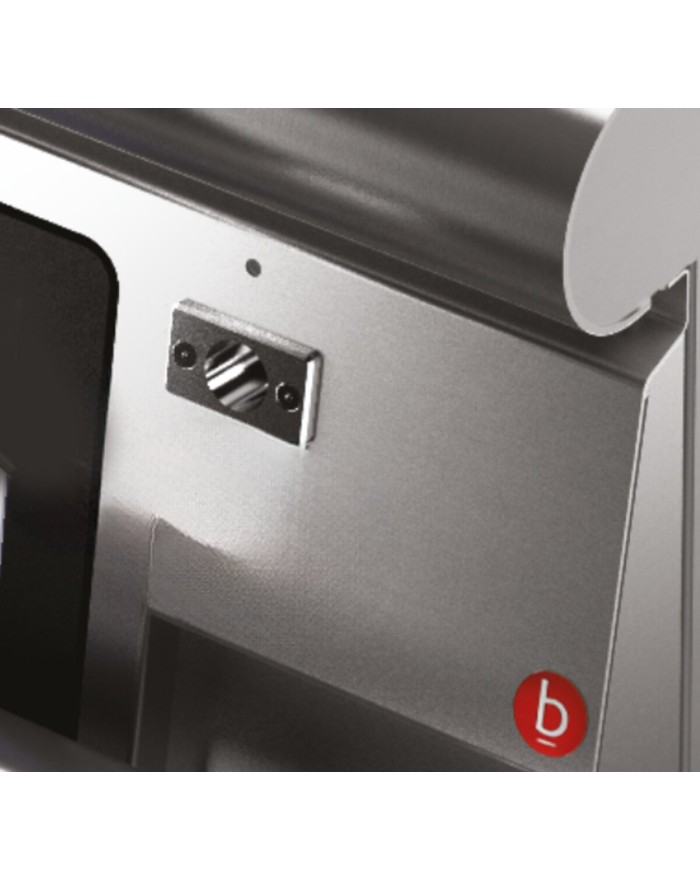

Predisposition for core probe, for even greater cooking control. Reaching the set core temperature is signalled by an acoustic signal.

QT90FTV/E1203-T4W
CR1350809T4W - Standard Standard

Data sheet

Model
QT90FTV/E1203-T4W
CODE
CR1350809T4W
Height
870mm
Width
120mm
Depth
900mm
Company
0232
Alimentazione
ELETTRICA
Tipo piastra
SMOOTH
Electrical power
16.2Kw
380-415V 3N
Materiale Piastra
AISI430
Controllo
THERMOSTATATE

Specific References

mpn
QT90FTV/E1203-T4W
