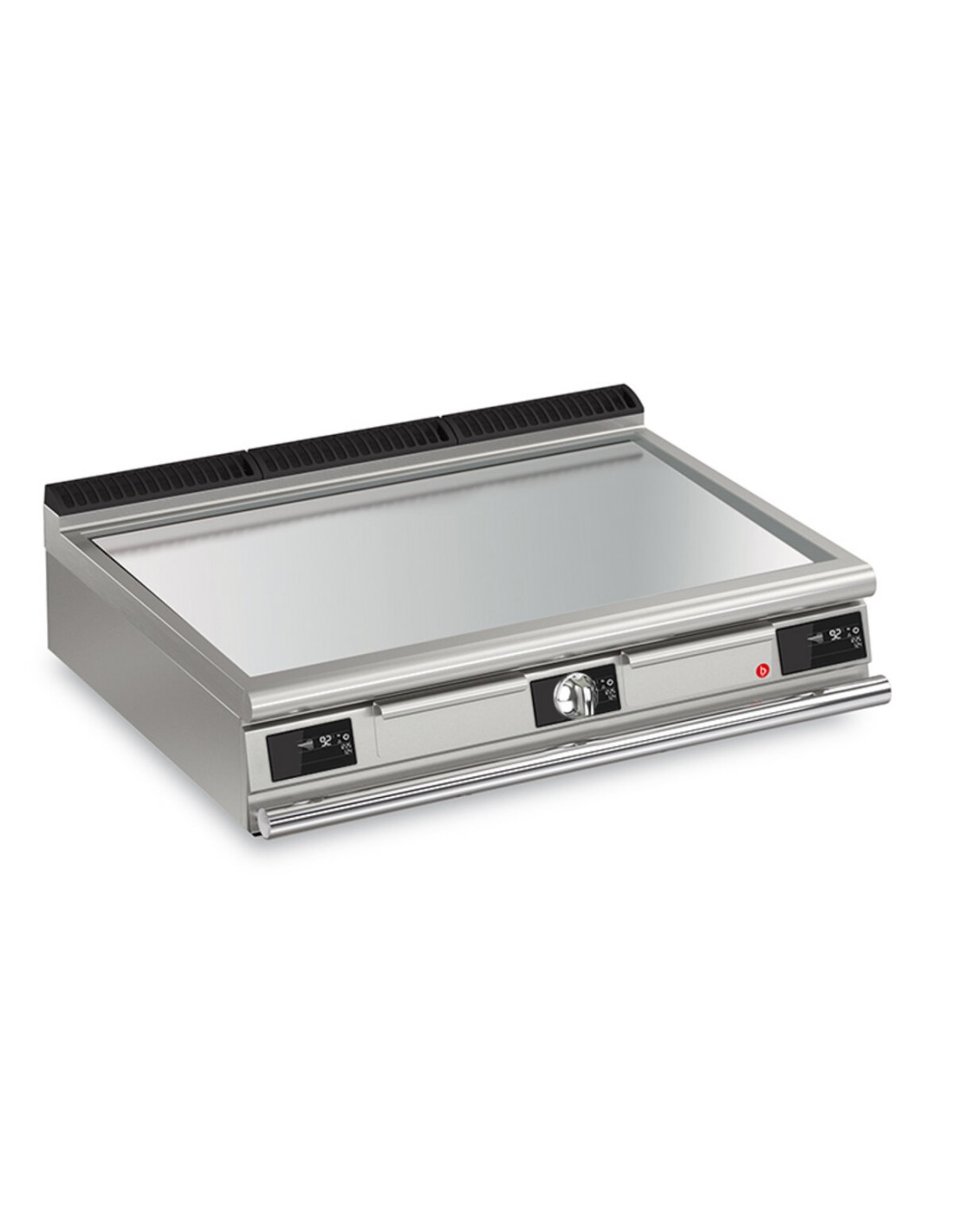

ELECTRIC FRY TOP SMOOTH PLATE AISI 430 TOP VERSION
Data Sheet
DWG-3D
Pictures

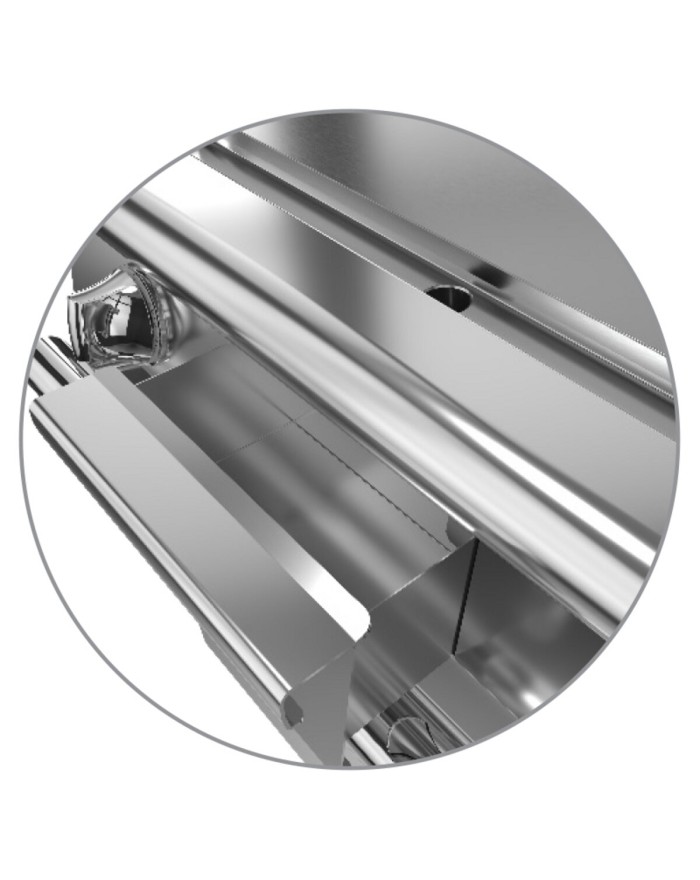

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage.
Large grease collecting drawer.
High-power armored heating elements made of steels
stainless steel.
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.
Thermostatic safety control adjustable from 110 to 280°C for all versions.
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. AISI430 plate. Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.






Industry 4.0 ready version.

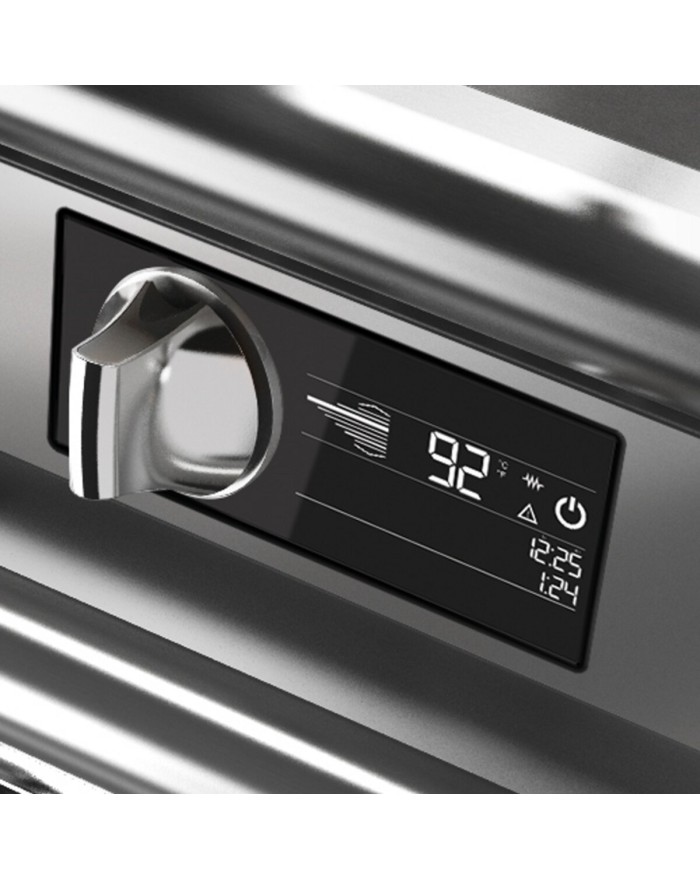

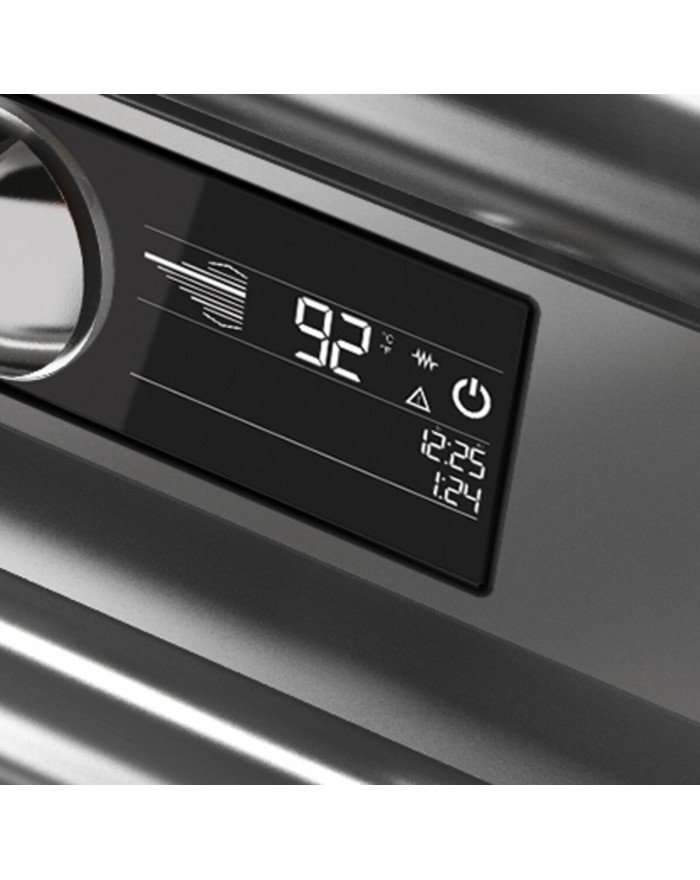

Power level control via touch screen and adjustment with ergonomic knob

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

Capacious grease collection drawer with capacity of the entire volume of the perimeter channel.

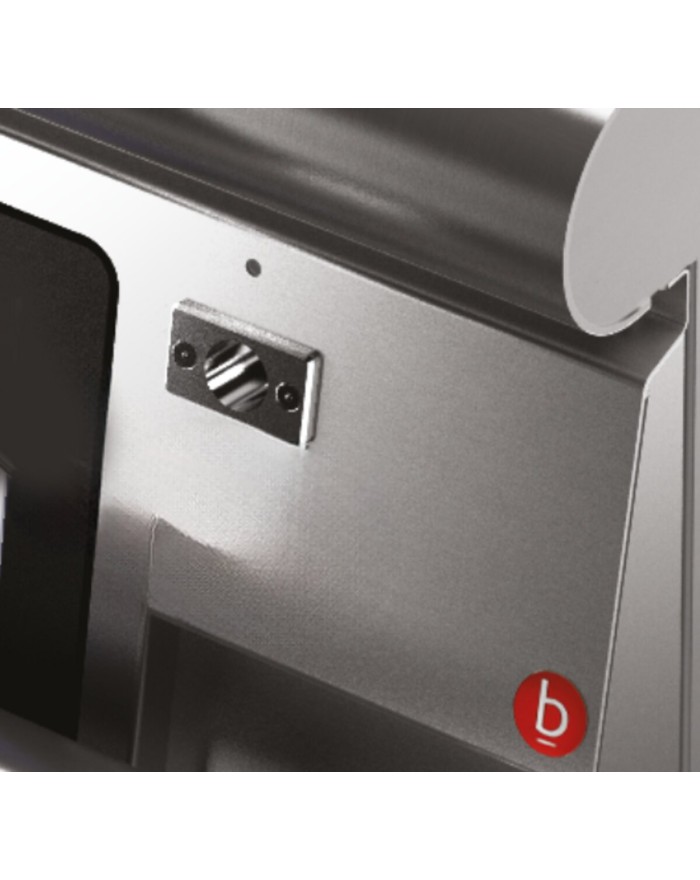

Predisposition for core probe, for even greater cooking control. Reaching the set core temperature is signalled by an acoustic signal.
QT90FT/E1203-T4W
CR1350629T4W - Standard Standard
Data sheet
- Model
- QT90FT/E1203-T4W
- CODE
- CR1350629T4W
- Height
- 250mm
- Width
- 120mm
- Depth
- 900mm
- Company
- 0232
- Alimentazione
- ELETTRICA
- Tipo piastra
- SMOOTH
- Electrical power
- 16.2Kw
380-415V 3N - Materiale Piastra
- AISI430
- Controllo
- THERMOSTATATE
Specific References
- mpn
- QT90FT/E1203-T4W
