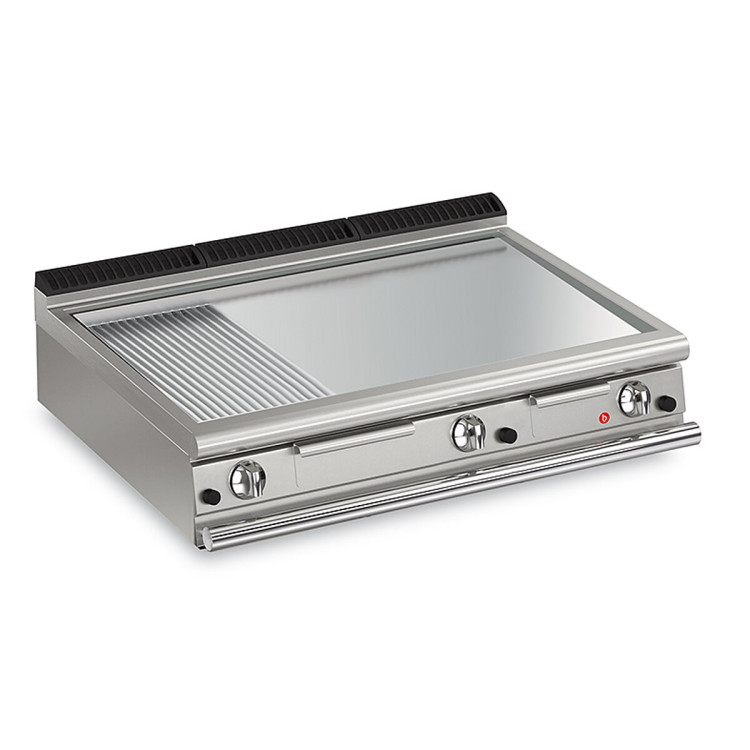

GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED
  • GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED
  • GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED
  • GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED
  • GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED

GAS FRY TOP WITH 2/3 SMOOTH SURFACE AND 1/3 RIBBED SURFACE, AISI 430 - THERMOSTAT-CONTROLLED

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Tops with 2 mm thickness Plates inclined by 10mm towards the front of the machine. Large grease collection drawer. Electric version: heating by incoloy armored heating elements. Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. AISI430 plate. Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

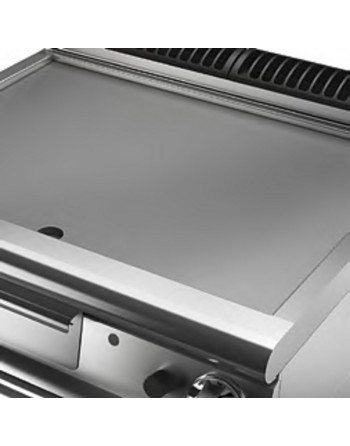

A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.



Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

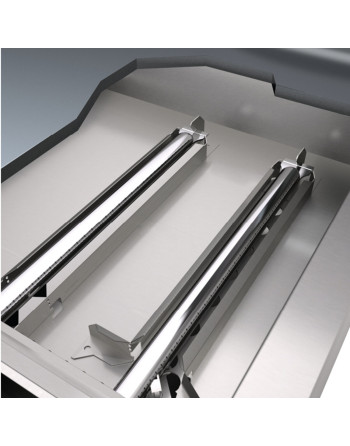

Even heat distribution thanks to several burners under the hotplate.

CR1019439 - Standard Standard

Data sheet

II2H3+
ES/GB/GR/IE/IT/PT/SK
Model
Q70FTT/G1223
CODE
CR1019439
Material type
ZPF
Depth
700mm
Height
250mm
Volume
0.731m3
Gas power Kw
19,50Kw
Gas power (G25.3/25 mbar)
18,75Kw
Gas power Kcal
16125Kcal
Gross volume
0960
Production site
BELLUNO
Product variant
PIASTRA LISCIA /RIGATA
Chimney type
A1
Certified model
Q70FTT/G1223
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
980
Packaging height
500
Width
1200mm
Packaging length
1250
Alimentazione
GAS
Tipo piastra
1/3RIBBED
Materiale Piastra
AISI430
Controllo
THERMOSTATATE

Specific References

MPN
Q70FTT/G1223
