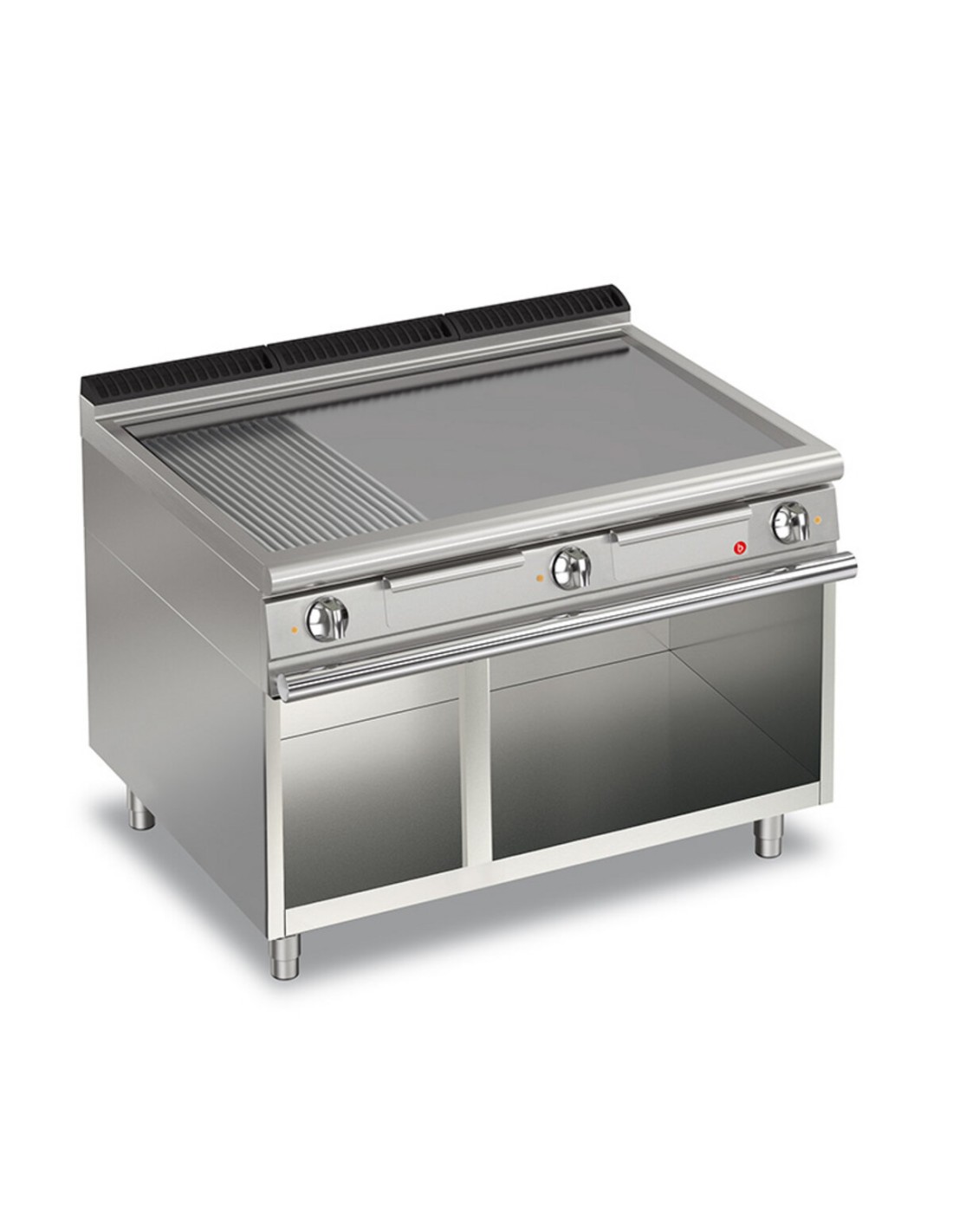

ELECTRIC FRY TOP 2/3 SMOOTH 1/3 GROOVED PLATE ON OPEN COMPARTMENT
DWG-3D
Pictures
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Mild steel plate (for non-EU markets). Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

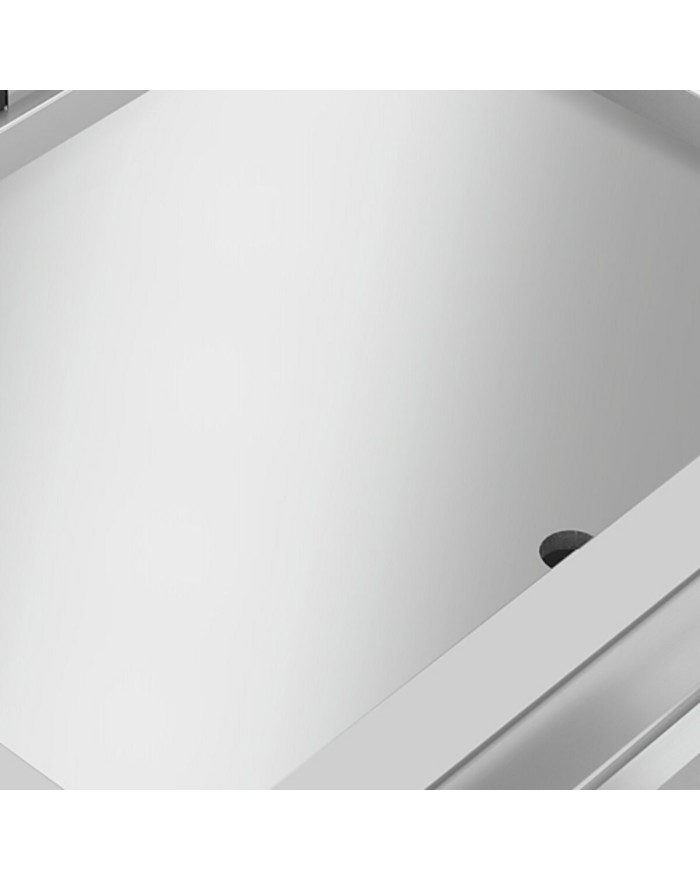

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

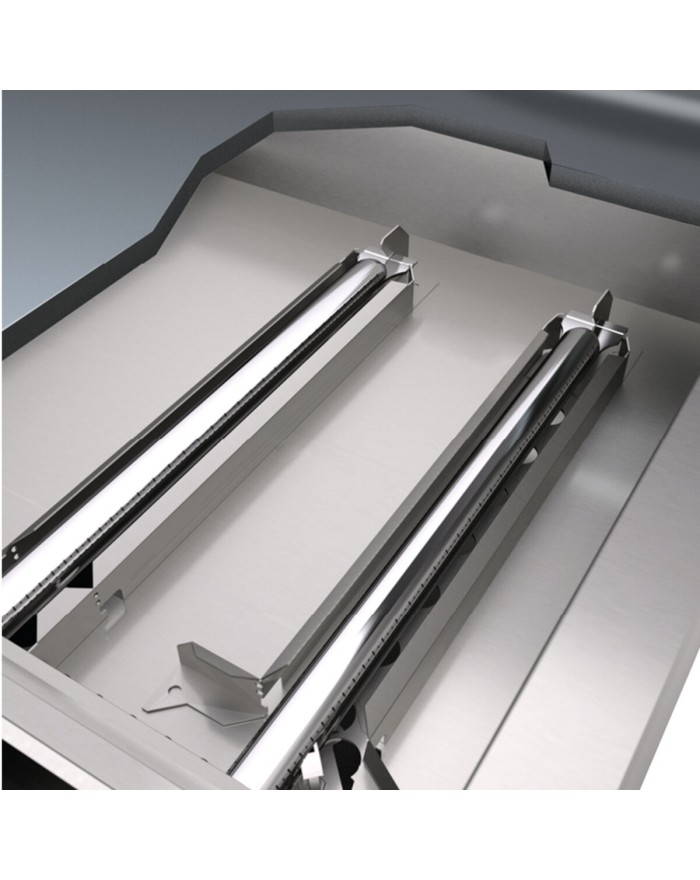

Even heat distribution thanks to several burners under the hotplate.
Q70FTV/E1220
CR1014509
Data sheet
- Model
- Q70FTV/E1220
- Code
- CR1014509
- Material type
- ZPF
- Definition
- Q70FTV/E1220 FTE 1/3 RIGATO M120 A/G
- Width
- 1200mm
- Height
- 870mm
- Depth
- 700mm
- Volume
- 0.731m3
- Electrical power
- 16.2Kw
380-415V 3N - Frequency
- 50-60 HzHz
- Gross volume
- 0980
- Net weight
- 129Kg
- Gross weight
- 143Kg
- IP grade
- IPX4
- Certified model
- Q70FTV/E1220
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 980
- Packaging height
- 500
- Packaging length
- 440
- Alimentazione
- ELETTRICA
- Commercial code
- Q70FTV/E1220
- Production site
- BELLUNO
- Product variant
- PIASTRA LISCIA /RIGATA
- Tipo piastra
- RIBBED
- Materiale Piastra
- IRON
