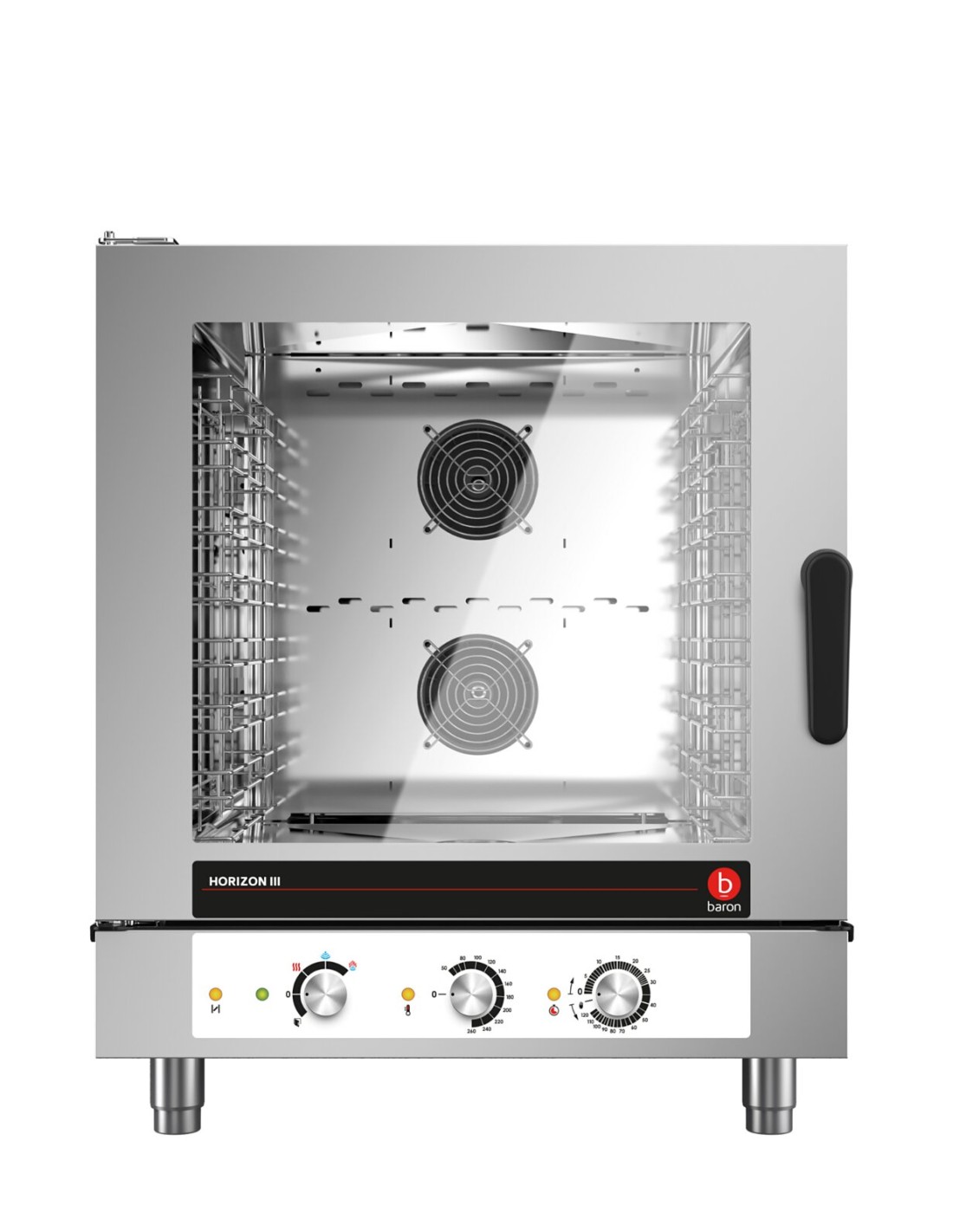

DIRECT STEAM GAS COMBI-OVEN - 7 X 1/1 GN - 7 X 600 X 400 ● ELECTROMECHANICAL CONTROLS

COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
Tipo Alimentazione
Print
The control panel of the manual oven consists of selectors and knobs with an ergonomic design that makes it easy to use and intuitive. Functions are controlled by electromechanical controls, while indicator lights provide feedback on oven operation clearly and immediately. COOKING MODE: Manual cooking with three cooking modes: Convection from 50°C to 260°C, Steam from 50°C to 130°C, Combined from 50°C to 260°C. OPERATION: Electromechanical selector control panel with operation control lights. CONTROL FEATURES: Autoreverse (automatic reversal of fan rotation direction) for perfect cooking uniformity. Manual chamber venting. LED cooking chamber lighting. IPX3 protection against water jets. CLEANING, ORDINARY MAINTENANCE: Manual washing system with external hand shower (hand shower optional).
HOGM071E
HOGM071E - Metano Standard

Data sheet

Model
HOGM071E
Code
HOGM071E
Material type
ZPF
Definition
ICGM071E MISTO GAS 7T C/MEC.
Width
812mm
Height
935mm
Depth
725mm
Volume
0.55m3
Electrical power
0.5Kw
220-240V 1N
Gross volume
0918
Net weight
99Kg
Gross weight
113Kg
IP grade
IPX3
Certified model
MEGM071E
Product type
STANDARD
Company
0230
Commercial Line
ICON E
Packaging width
870
Packaging height
1160
Packaging length
910
Alimentazione
GAS
Commercial code
ICGM071E
II2H3+
ES/GB/GR/IE/IT/PT/SK
Gas power Kw
12Kw
Chimney type
A3-B13-B23
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Variants
PORTA STD

Specific References

mpn
HOGM071E

Download

HOGM071E_it.pdf

Download (620.13KB)

HOGM071E_de.pdf

Download (622.66KB)

HOGM071E_en.pdf

Download (619.46KB)

HOGM071E_es.pdf

Download (620.74KB)

HOGM071E_fr.pdf

Download (623.6KB)
