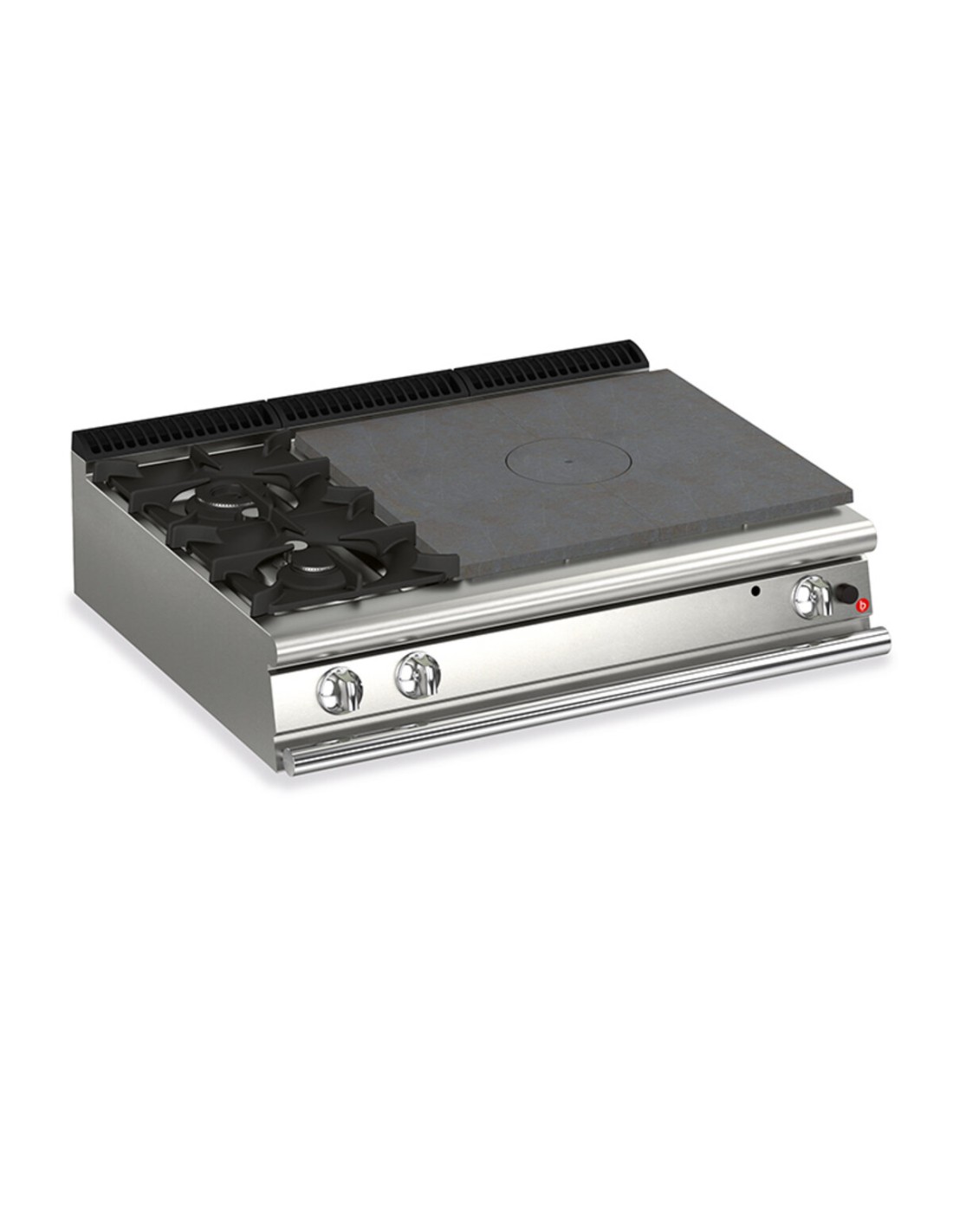

GAS SOLID TOP WITH 2 BURNERS ON THE LEFT - TOP VERSION

Gas Full Plate: Cast iron plate with temperature adjustment from 50° to 450°C, safe piezoelectric ignition. A single high-efficiency central burner creates differentiated thermal zones on the surface, with maximum heat concentration at the center and decreasing temperatures at the peripheral zones. Polished cast iron plate with a removable central disc.
Tipo Alimentazione
Promo
Print
Gas Full Plate: Cast iron plate with temperature adjustment from 50° to 450°C, safe piezoelectric ignition. A single high-efficiency central burner creates differentiated thermal zones on the surface, with maximum heat concentration at the center and decreasing temperatures at the peripheral zones. Polished cast iron plate with a removable central disc.Polished cast iron plate with removable central disk. High-power (14 kW) central burner with piezo ignition. Differentiated thermal zones with maximum temperature at the center 500°C, decreasing toward the perimeter. Safety tap with thermocouple and progressive regulation of power output. Gas oven Stainless steel cooking chamber (53x70x30cm), thermally insulated and equipped with 3 anti-tip guides for 1/1 and 2/1 reduced gastronorm containers. Thick cast iron radiant sole for effective heat distribution. Stainless steel door and counter door, perfectly insulated and mounted on self-balancing hinges. Ergonomic full-length, thermally insulated handle. Stabilized flame burner housed under the sole. Pilot burner with piezoelectric and manual ignition. Automatic valve with gas safety thermocouple. Thermostatic temperature control from 110 to 330°c. Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°C to 300°C. Various connection possibilities. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. A single high-efficiency central burner that results in differentiated heat zones on the floor with a concentration of maximum heat in the centre and decreasing temperatures in the peripheral zones. Entirely moulded top made from thick stainless steel plate. Enamelled cast-iron grills with long spokes for easy movement of pans between fires. High power cast iron burners 3.5- 5.7- 7 and 10 kW. Protected pilot flame with removable and easily washable protection. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Thick top plate with removable centre ring.

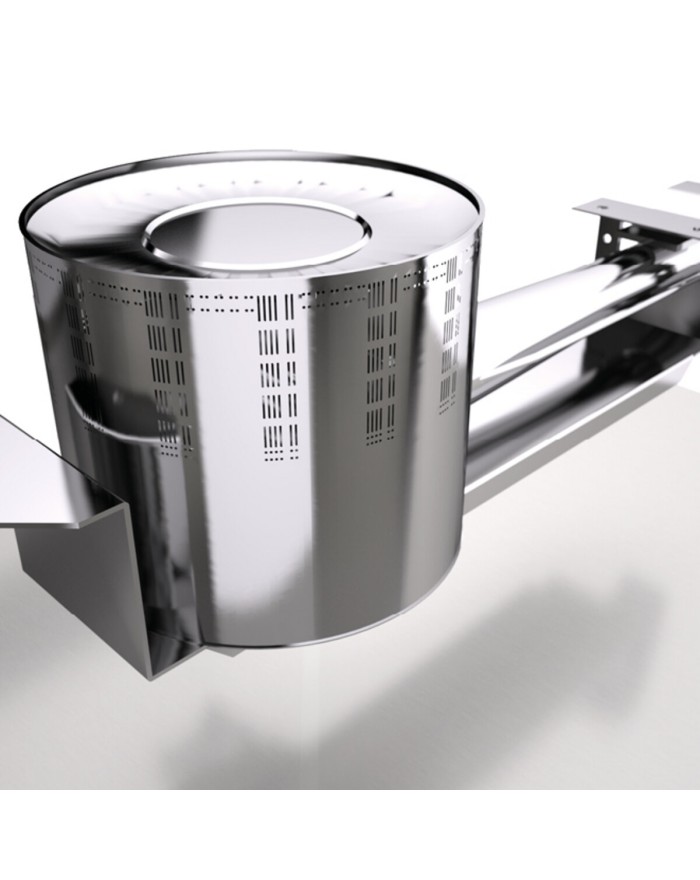

A single high-efficiency central burner that results in differentiated heat zones on the floor with a concentration of maximum heat in the centre and decreasing temperatures in the peripheral zones.

Q90TP/G1201SX
CR1016109 - Standard Standard

Data sheet

II2H3+
ES/GB/GR/IE/IT/PT/SK
Product variant
FUOCHI+PIASTRA TUTTAP. A SX
Model
Q90TP/G1201SX
Chimney type
A1
CODE
CR1016109
Certified model
Q90TP/G12SX
Commercial code
Q90TP/G1201SX
CE-certified
CE-0085BS0154
Material type
ZPF
Product type
STANDARD
Definition
Q90TP/G1201SX TUTTAPIASTRA GAS+2F SX TOP
Company
0232
Depth
900mm
Commercial Line
QUEEN
Height
250mm
Packaging width
1020
Packaging height
570
Volume
0.27m3
Width
1200mm
Gas power Kw
24,50Kw
Packaging length
1260
Gas power (G25.3/25 mbar)
24,00Kw
Alimentazione
GAS
Gas power Kcal
20640Kcal
N. Fires/Plates
DUE FUOCHI
Gross volume
0733
Gas/refrigerant type
METANO "H E" G20 20/25mbar
Net weight
82Kg
Gross weight
100Kg
Production site
BELLUNO

Specific References

mpn
Q90TP/G1201SX
