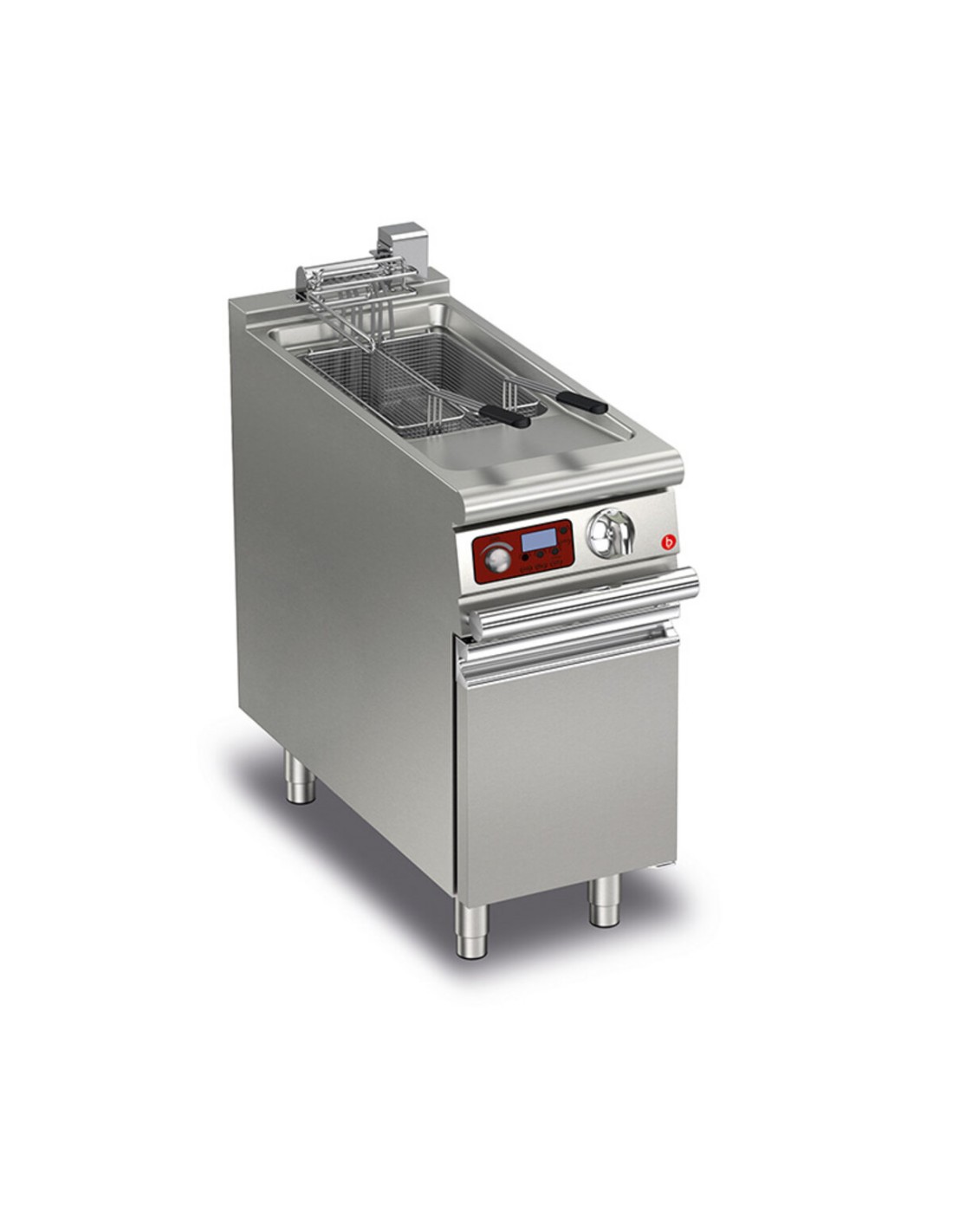

ELECTRIC FRYER 1 BASIN 15 L - ELECTRONIC CONTROL AND MELTING PHASE

Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.
Tipo Alimentazione
Promo
Print
Professional Electric Fryers: AISI 18/10 stainless steel tanks with a cold zone and foam expansion area. Equipped with oil drain taps and a safety thermostat (230°C) to prevent excessive oil overheating. Electric version: Heating via armored AISI 304 stainless steel elements inside the tank, tiltable over 90° in the 22-liter tank version. Fully removable heating elements in the 10- and 15-liter tank versions.Moulded upper surface machined from a single sheet of thick stainless steel. Large-capacity contoured firing tanks with large vertical expansion zone that prevents foam from settling during loading. Automatic regulation thermostat of the Fire safety thermostat (230°C). Oil drain taps. Holder for baskets and lids. Gas models Tubular steel burners outside the tank. Piezoelectric ignition of the pilot burner. Electric models Liftable and removable stainless steel armoured heating elements. Optical signal when the programmed temperature has been reached. Indicator light "equipment under voltage. The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Dirt collecting convector included. This element facilitates the deposition of dirt in the cold zone, preventing dirt from depositing in the hot zones of the tank. The life cycle of the oil is thus longer. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


In the gas version, the molded inner tank is clean with external burners for easy cleaning.

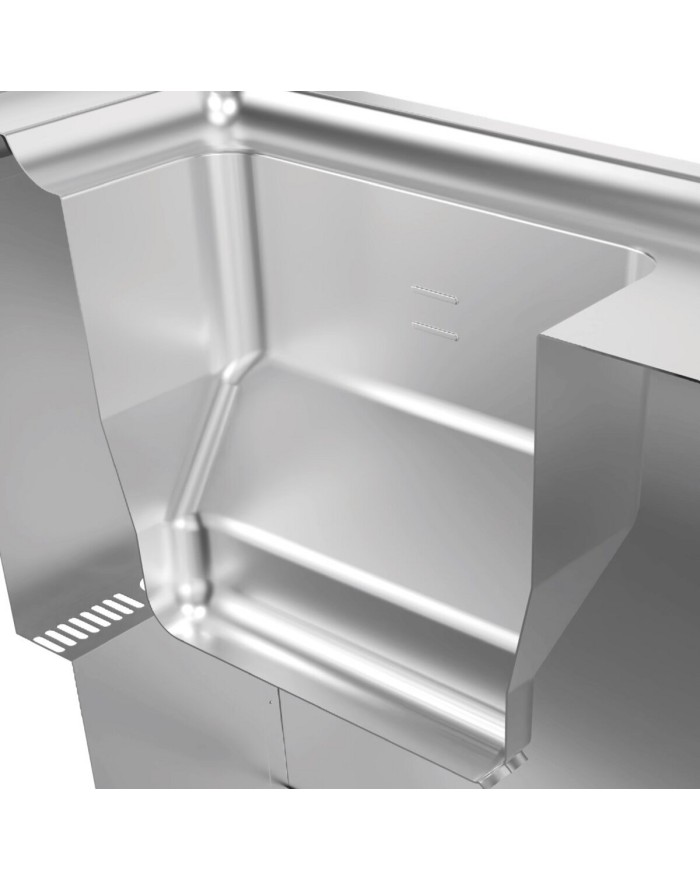

Tank depth and width increased to increase capacity.

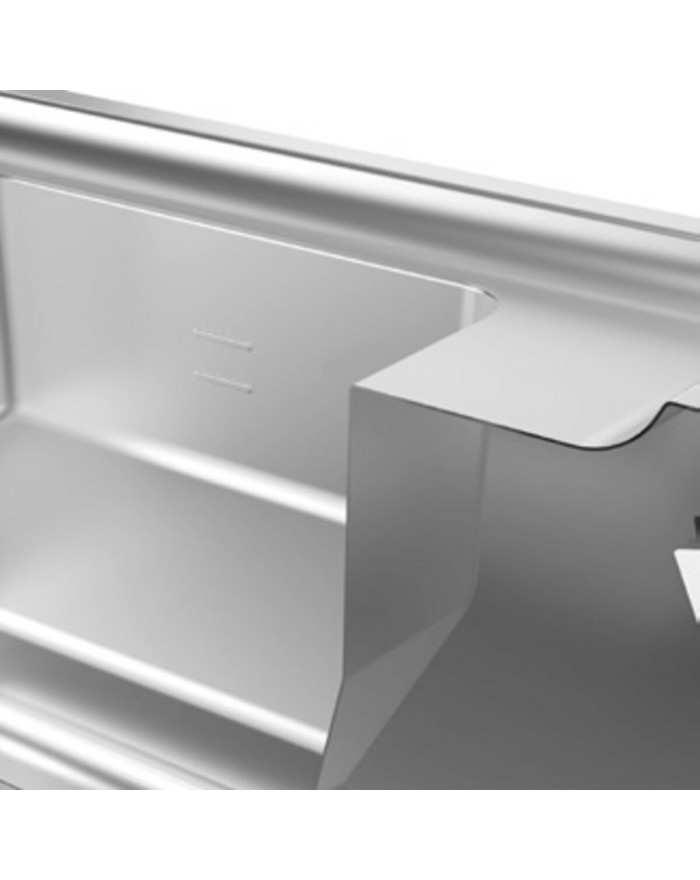

Moulded basin with flat top and large cold zone for easy cleaning.



Heating element completely removable from the tank to allow faster and more complete cleaning. In 10- and 15-liter versions

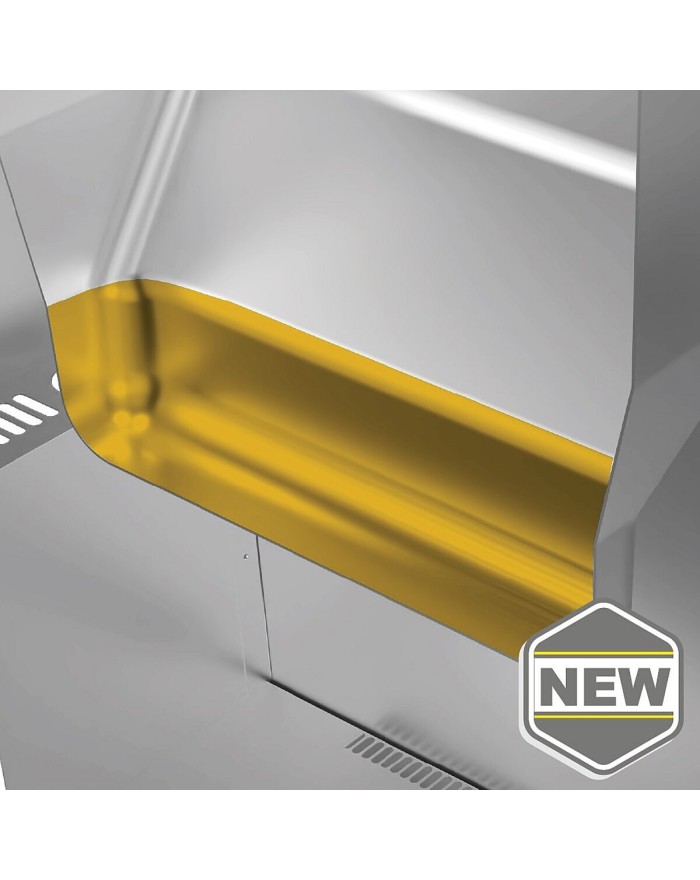

The large cold zone allows frying residues to settle, significantly extending the quality and life of the oil.

Q70FRI/E415M
CR1359529 - Standard Standard

Data sheet

Height
870mm
Frequency
50-60 HzHz
Volume
0.244m3
Capacity
15 litri
Gross volume
0450
Electrical power
13,000Kw
380-415V 3N
Net weight
51.8Kg
IP grade
IPX5
Gross weight
61Kg
Capacità litri
15L
Production site
BELLUNO
Voltage
400
Certified model
Q70FRI/E415M
Cestelli
2 x CF15P
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
Q70FRI/E415M
Packaging width
850
CODE
CR1359529
Packaging height
1150
Commercial code
Q70FRI/E415M
Width
400mm
Material type
ZPF
Packaging length
450
Definition
Q70FRI/E415M N/T FRIGGITR.EL.1V 15LT M40
Alimentazione
ELETTRICA
Depth
700mm

Specific References

mpn
Q70FRI/E415M
