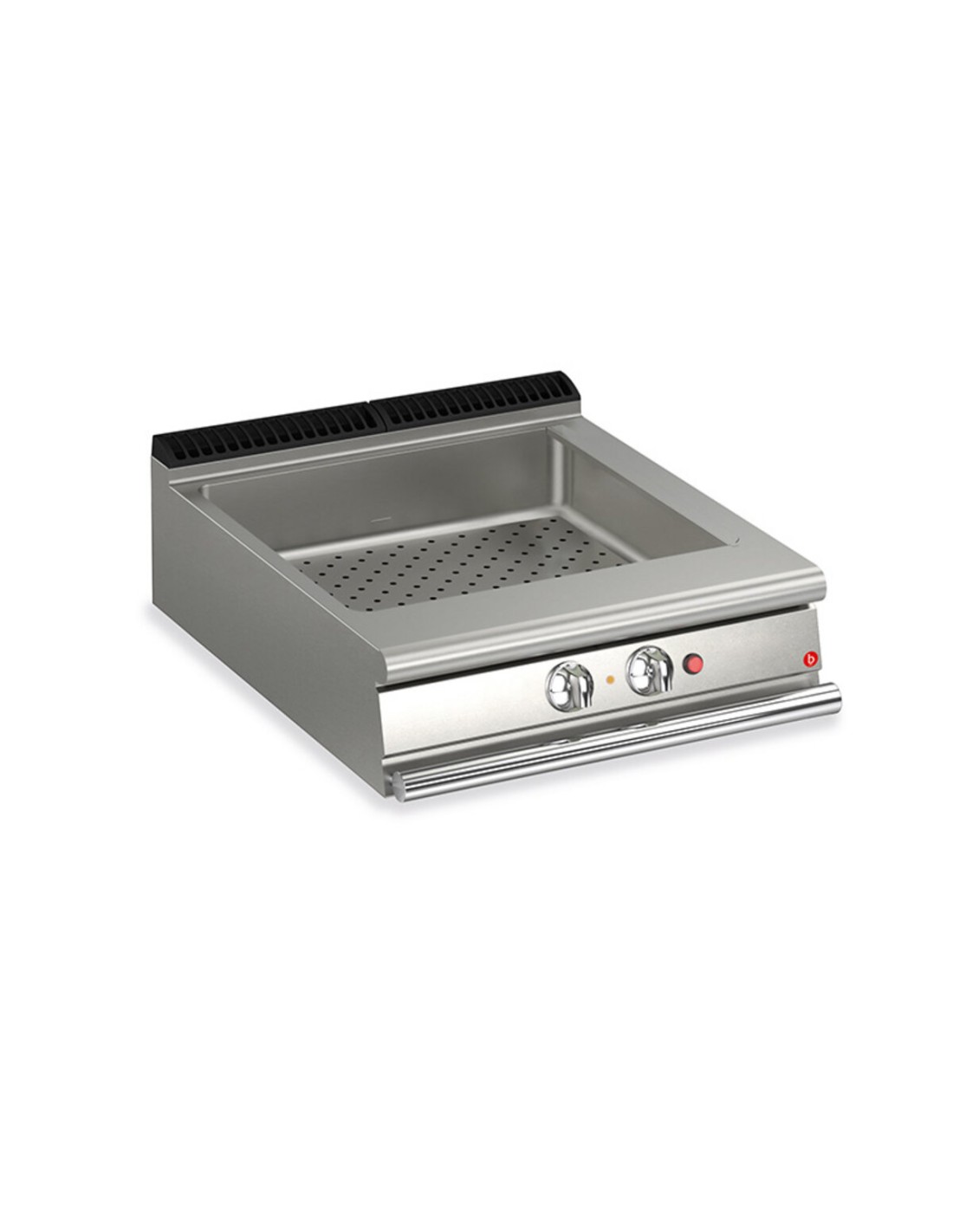

ELECTRIC BAIN-MARIE - TOP VERSION

Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.
Promo
Tipo Alimentazione
Print
Home , COOKING , QUEEN 7 , BAIN MARIES
Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.Suitable for maintaining dishes at a temperature below 100° and for very delicate cooking. Module of 40: Tank size 1xGN 1/1 Module of 80: Tank size 2xGN 1/1 Heated by armored heating elements placed externally to the tank. Control thermostat. Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 M80: 2xGN1/3 + 2xGN 1/1 Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank.

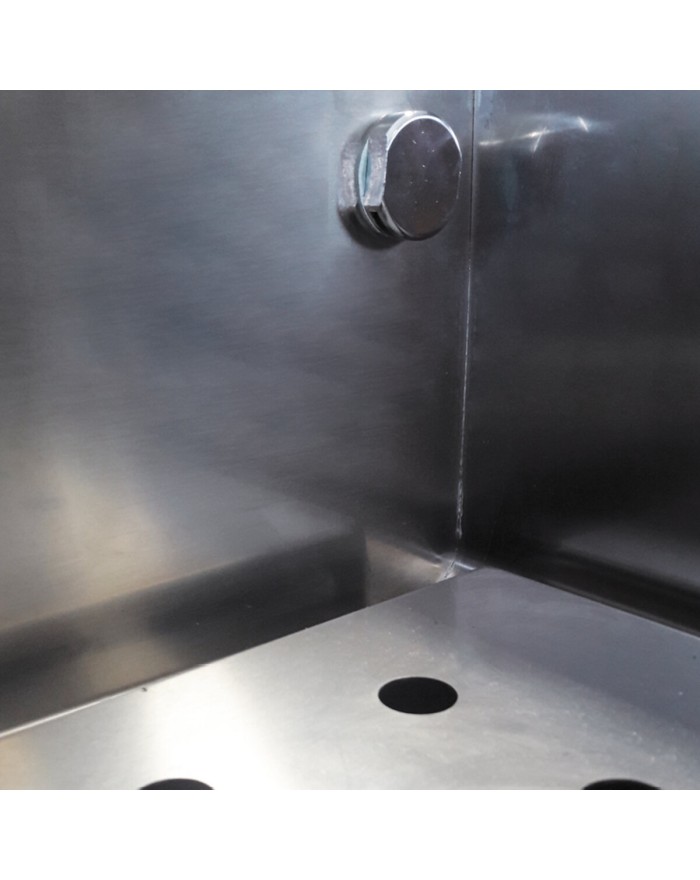

Integrated water dispenser in tank

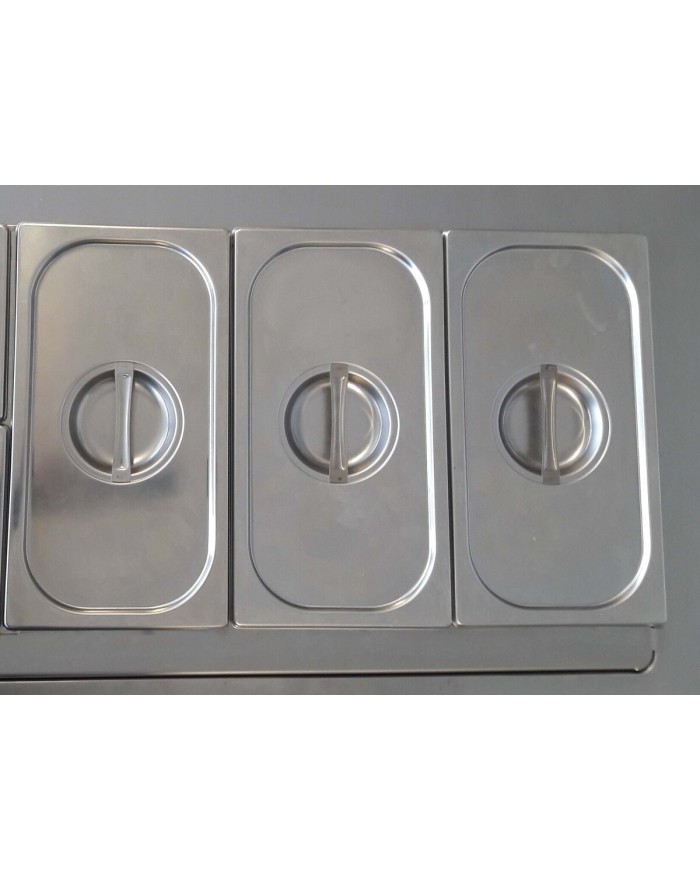

Different GN basin combinations Examples: M40: 1xGN 1/1 or 3xGN1/3 M80: 3xGN1/3 + 1xGN 1/

Q70BM/E800
CR1014579 - Standard Standard

Data sheet

Gross volume
0422
Capacita GN
no. 2 GN 1/1
Net weight
39Kg
Gross weight
47Kg
Certified model
Q70BM/E800
CE-certified
-
Company
0232
Commercial Line
QUEEN
Packaging width
850
Packaging height
570
Model
Q70BM/E800
Width
800mm
CODE
CR1014579
Packaging length
850
Material type
ZPF
Alimentazione
ELETTRICA
Definition
Q70BM/E800 BAGNOMARIA EL. M80 TOP
Electrical power
5,400Kw
380-415V 3N
Depth
700mm
Frequency
50-60 HzHz
Height
250mm
Volume
0.14m3
IP grade
IPX4

Specific References

mpn
Q70BM/E800
