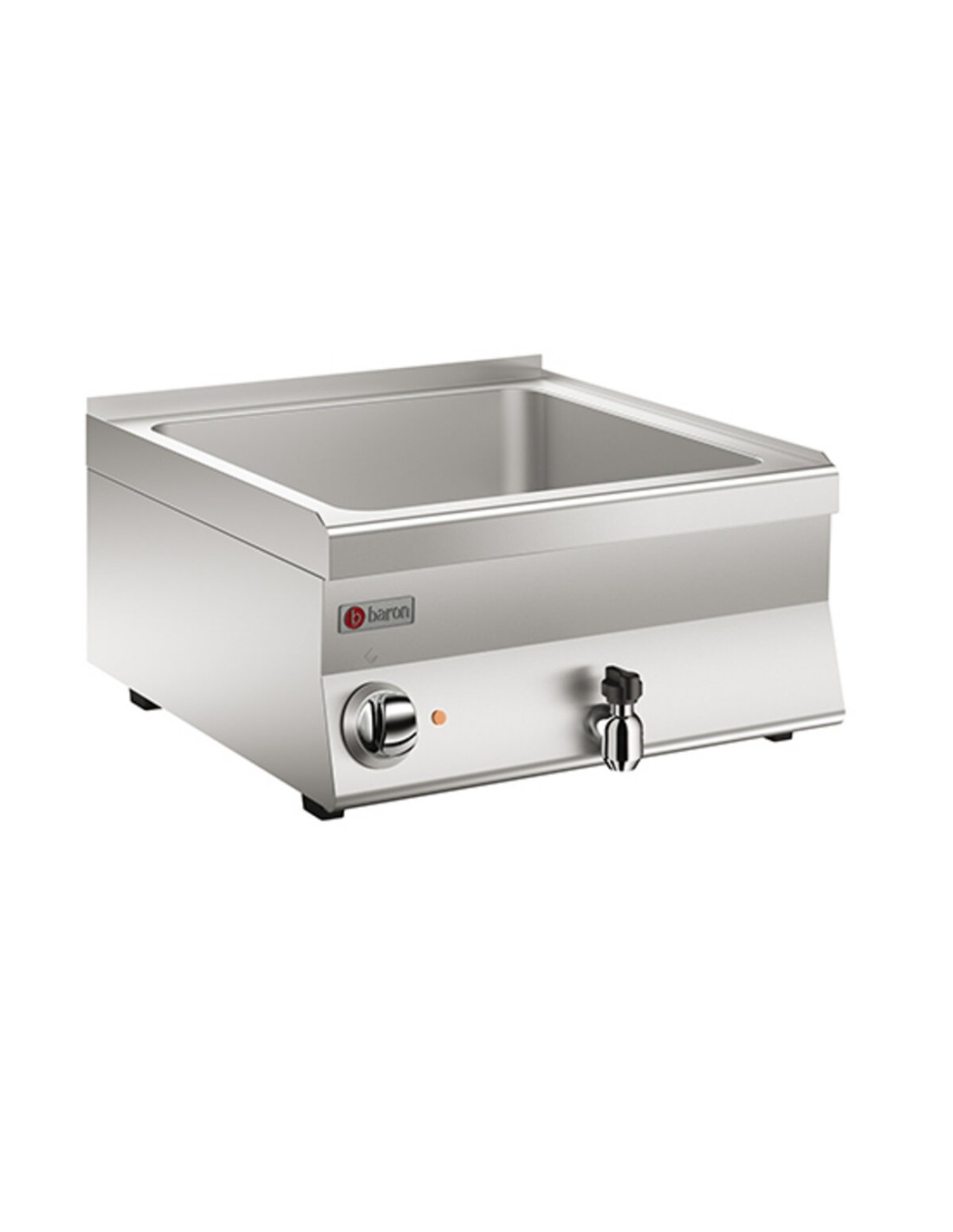

ELECTRIC BAIN-MARIE CAPACITY 1 X GN1/1 + 2 X GN1/4

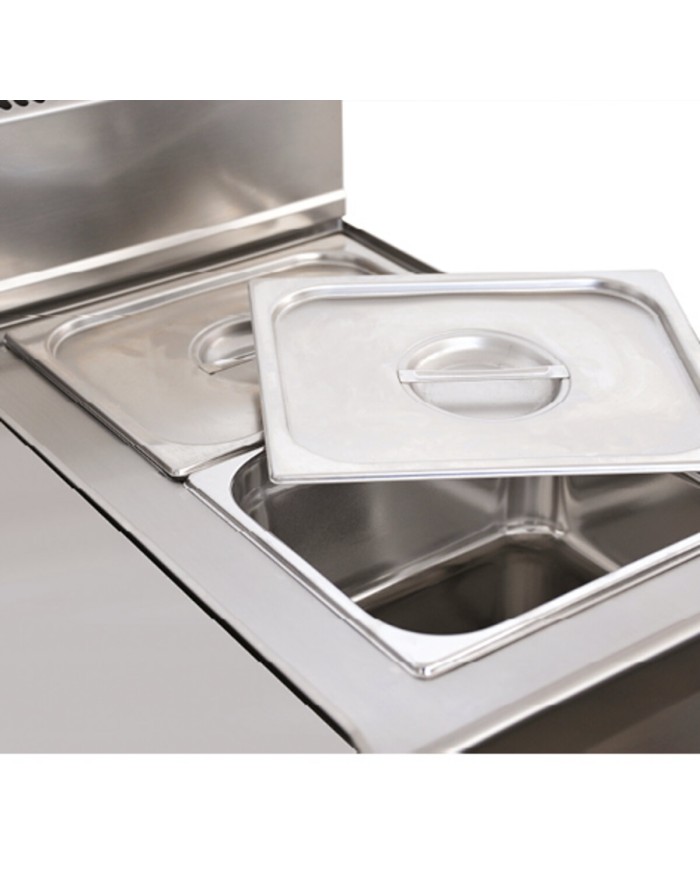

The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.
Print
The power installed for electric water baths, ensures rapid set-up of the equipment and maintenance of the chosen operating temperature. The basin is designed to hold Gastro Norm bowls up to a depth of 150 mm and is sloped toward the front to allow proper water discharge through the drain cock on the front of the machine. The 'equipment is equipped with a safety thermostat, adhesive heating elements and indicator light to signal heating activity. The temperature is adjustable by thermostatic control from 30 to 90°C. The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.


The bottom is sloping towards the drain to facilitate water drainage.



The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NBM/E600
CR0856199

Data sheet

Model
6NBM/E600
Code
CR0856199
Material type
ZPF
Definition
BAGNOMARIA EL.60 M60 6NBM/E600
Width
600mm
Height
295mm
Depth
600mm
Volume
0.106m3
Electrical power
1.8Kw
220-240V 1N
Frequency
50-60 HzHz
Gross volume
0159
Net weight
12.7Kg
Gross weight
20Kg
IP grade
IPX4
Certified model
6NBM/E600
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
630
Packaging height
400
Packaging length
630
Alimentazione
ELETTRICA
Commercial code
6NBM/E600
