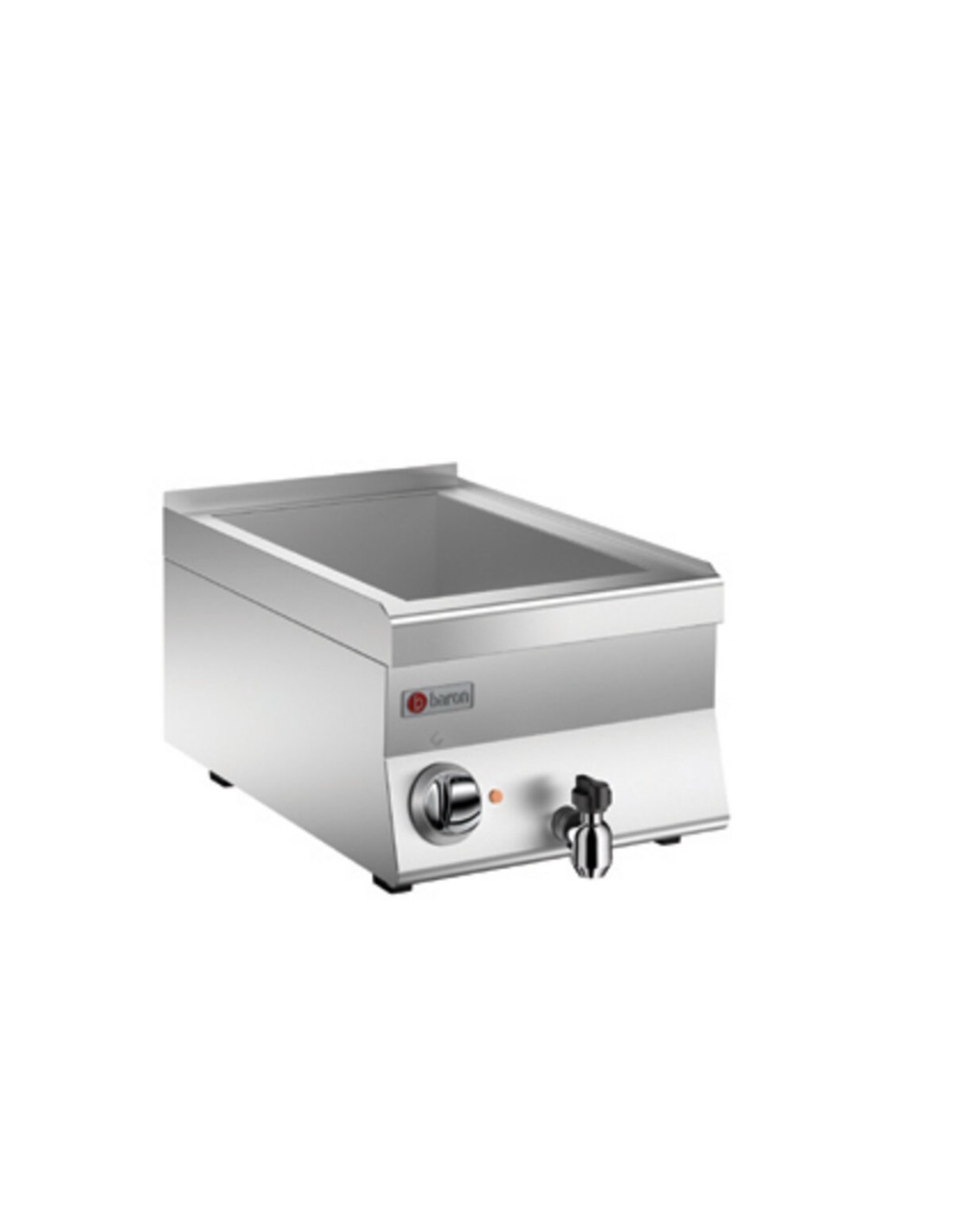

ELECTRIC BAIN-MARIE CAPACITY 1 X GN1/1

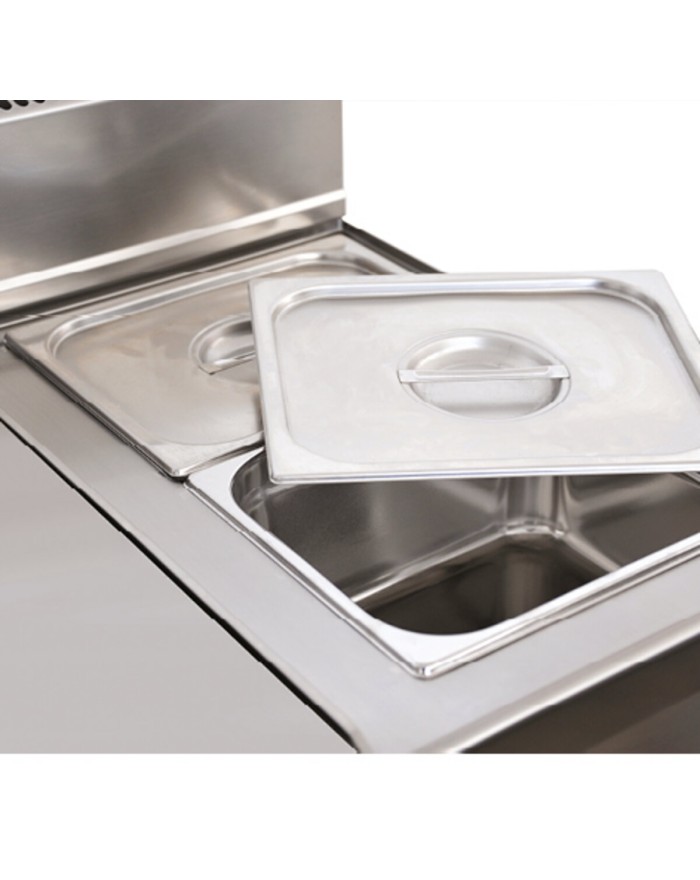

The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.
Print
The power installed for electric water baths, ensures rapid set-up of the equipment and maintenance of the chosen operating temperature. The basin is designed to hold Gastro Norm bowls up to a depth of 150 mm and is sloped toward the front to allow proper water discharge through the drain cock on the front of the machine. The 'equipment is equipped with a safety thermostat, adhesive heating elements and indicator light to signal heating activity. The temperature is adjustable by thermostatic control from 30 to 90°C. The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.


The bottom is sloping towards the drain to facilitate water drainage.



The bain-marie have basins suitable for holding GN bowls with a maximum height of 15 cm, and are complete with perforated false bottom and drain cock.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NBM/E400
CR0856189

Data sheet

Model
6NBM/E400
Code
CR0856189
Material type
ZPF
Definition
BAGNOMARIA EL.60 M40 6NBM/E400
Width
400mm
Height
295mm
Depth
600mm
Volume
0.071m3
Electrical power
1Kw
220-240V 1N
Frequency
50-60 HzHz
Gross volume
0104
Net weight
13Kg
Gross weight
18Kg
IP grade
IPX4
Certified model
6NBM/E400
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
650
Packaging height
380
Packaging length
420
Alimentazione
ELETTRICA
Commercial code
6NBM/E400

Download

CR0856189_it.pdf

Download (641.86KB)

CR0856189_de.pdf

Download (643.69KB)

CR0856189_en.pdf

Download (641.52KB)

CR0856189_es.pdf

Download (642.29KB)

CR0856189_fr.pdf

Download (643.75KB)
