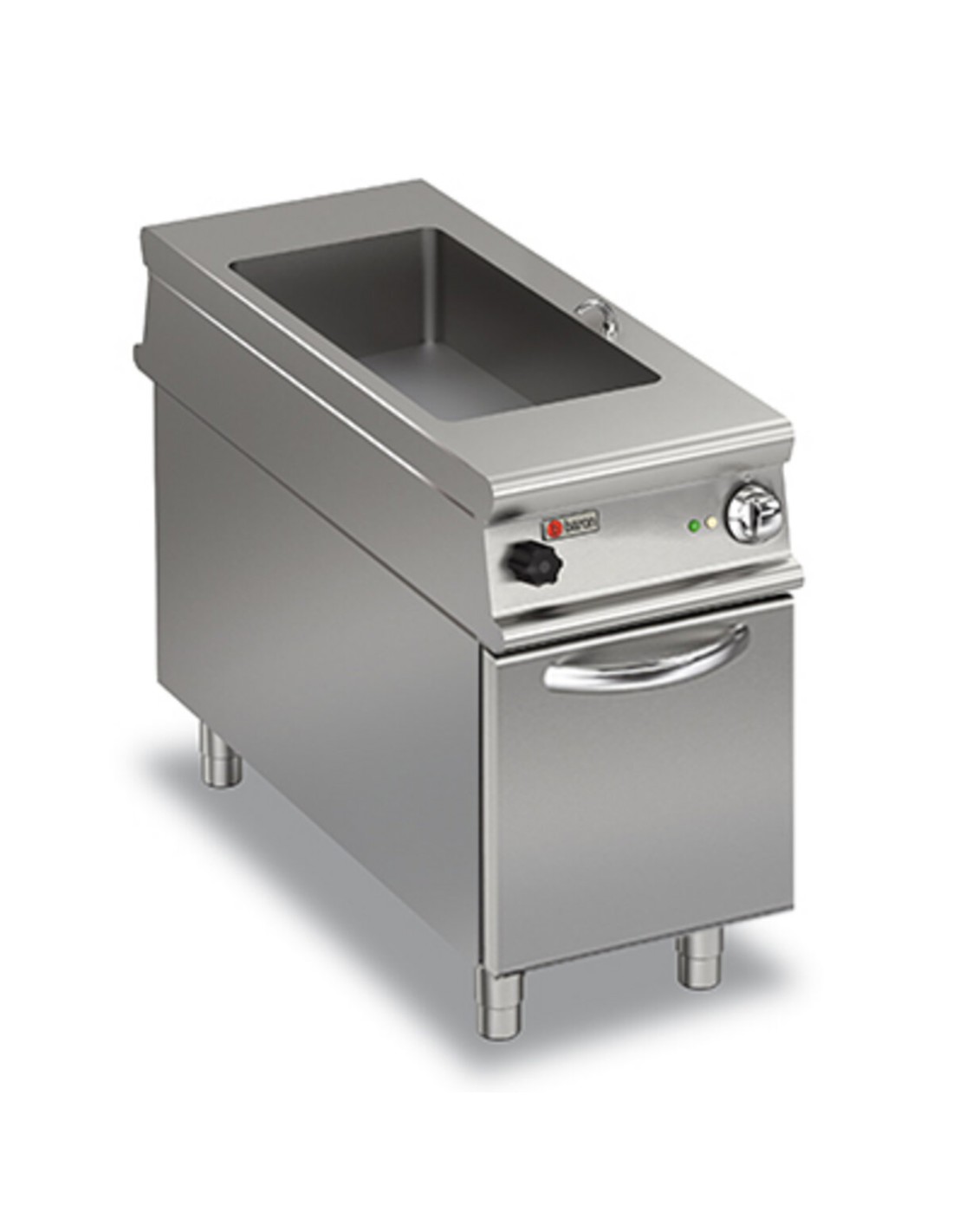

ELECTRIC THROUGH-BATH - ON CABINET WITH DOORS


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Gastronorm tub size (2x 2/3). Manual water loading by dispenser. Perforated false bottom for supporting containers. Tub equipped with an overflow level. GAS Temperature adjustable from 55°C to 90°C. Burner controlled by thermostatic valves with safety thermocouple. Piezo ignition. ELECTRICAL Temperature adjustable from 30°C to 90°C. Armoured heating elements positioned outside the tank. Heating activity indicator light.
N1100BGVP/E450
CR1010299

Data sheet

Model
N1100BGVP/E450
Code
CR1010299
Material type
ZPF
Definition
N1100BGVP/E450 BAGNOM. ELE. M45 A/G C/P
Width
450mm
Height
870mm
Depth
1100mm
Volume
0.431m3
Electrical power
2.2Kw
220-240V 1N
Frequency
50-60 HzHz
Gross volume
0751
Net weight
88Kg
Gross weight
110Kg
Voltage
230
IP grade
IPX4
Certified model
N1100BGVP/E450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1280
Packaging height
1150
Packaging length
510
Alimentazione
ELETTRICA
Commercial code
N1100BGVP/E450
Production site
BELLUNO
Minimum pressure
150
Maximum pressure
500
